Every flexible hose in a car, an HVAC unit, or a hydraulic system has to stay exactly where it is put. If it slips, coolant leaks, pressure drops, and equipment stops. The part that quietly makes this possible is often a small raised ring near the end of the tube — a bead. tube beading is one of the most common operations performed by a tube end forming machine, and it is the reason hoses stay locked in place under vibration, heat, and pressure.
A tube end forming machine reshapes the end of a metal tube with a single stroke or a short forming cycle. Depending on the tooling, the same machine can expand, reduce, flare, bead, flange, chamfer, or close the tube end. That flexibility makes it a core piece of equipment for metal tube processing lines in automotive, HVAC, refrigeration, hydraulic, medical, and furniture manufacturing.
In this guide, we explain what tube beading is, how the main end-forming processes work, which materials and bead profiles to choose, and how to select the right tube end forming machine for your production. SLS Machinery supplies a full range of tube end forming machines — from single-station units to multi-station CNC lines — engineered to deliver consistent, repeatable end forms with minimal setup time.
Tube beading forms a raised circumferential ring, or bead, on the outside of the tube, usually a few millimeters from the end. The bead works as an anti-dislodging barb: when a hose slides over the tube end, it stops against the bead, and a clamp placed behind the bead locks the hose in place. This mechanical stop prevents the hose from slipping off under pressure spikes, vibration, or thermal cycling.
Beads come in two common profiles:
• Round beads have a curved cross-section. They concentrate clamping force in a smaller area and are ideal for low- to medium-pressure hose retention in automotive cooling, vacuum, and fuel lines.
• Flat beads spread clamping pressure over a wider surface. They reduce the risk of hose damage and improve seal integrity under higher pressure, which is why they are common in hydraulic and pneumatic systems.
A double bead — two raised rings on the same end — is used when extra retention is needed or when the hose is long and heavy. Bead size, height, and position must match the hose inner diameter and the clamp location; otherwise the joint can leak or the hose can work loose over time.

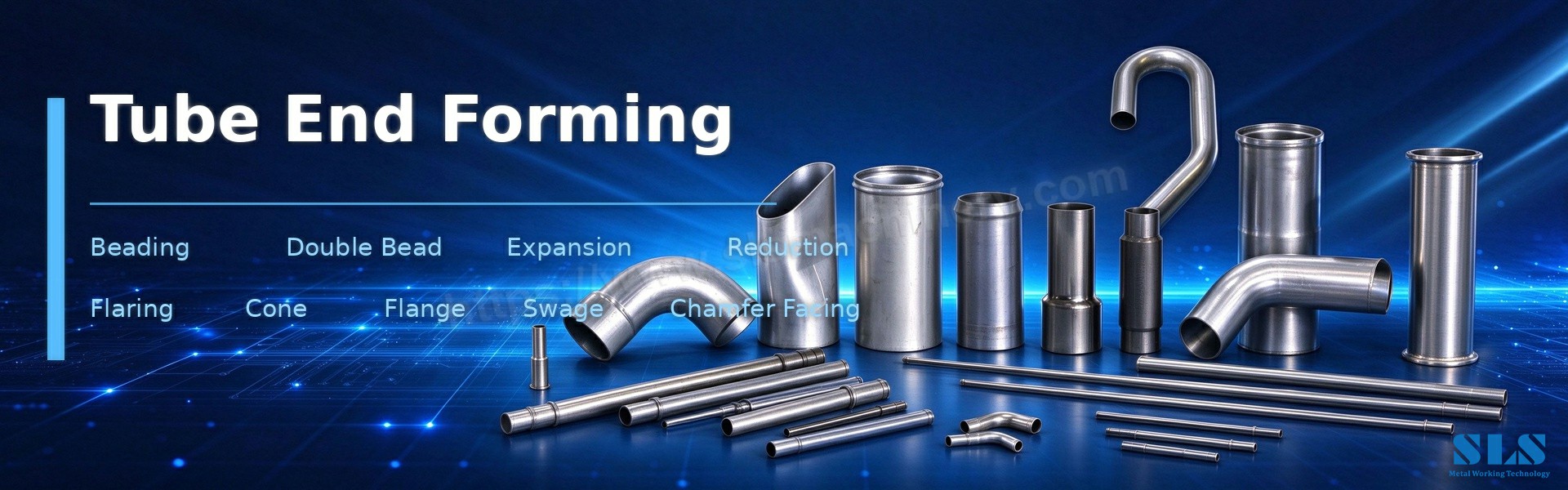

A tube end forming machine can create almost any end form required for assembly. The four core processes are expansion, reduction (swaging), flaring, and beading.

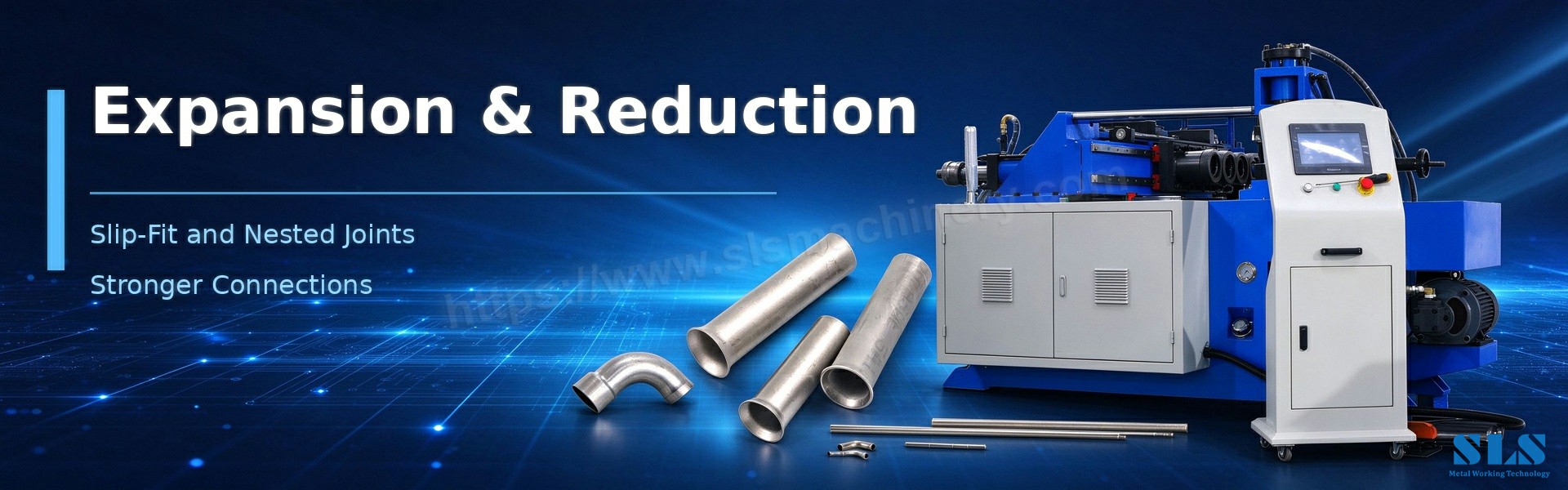

Tube expansion increases the outside diameter of the tube end. A mandrel or punch is driven into the tube, pushing the walls outward so the tube can slip over another component or fit into a sheet. Expansion slightly thins the wall as the metal stretches, so the amount of expansion must be controlled. It is widely used in heat exchangers, refrigeration lines, and telescopic furniture parts.
Tube reduction, also called tube swaging, decreases the outside diameter of the tube end so it can nest inside a smaller tube or component. The material is compressed inward, which actually thickens the wall at the reduced section and strengthens the joint. Swage forming is common in fuel lines, hydraulic tubing, exhaust systems, and any nested connection that should not rely on extra fittings.

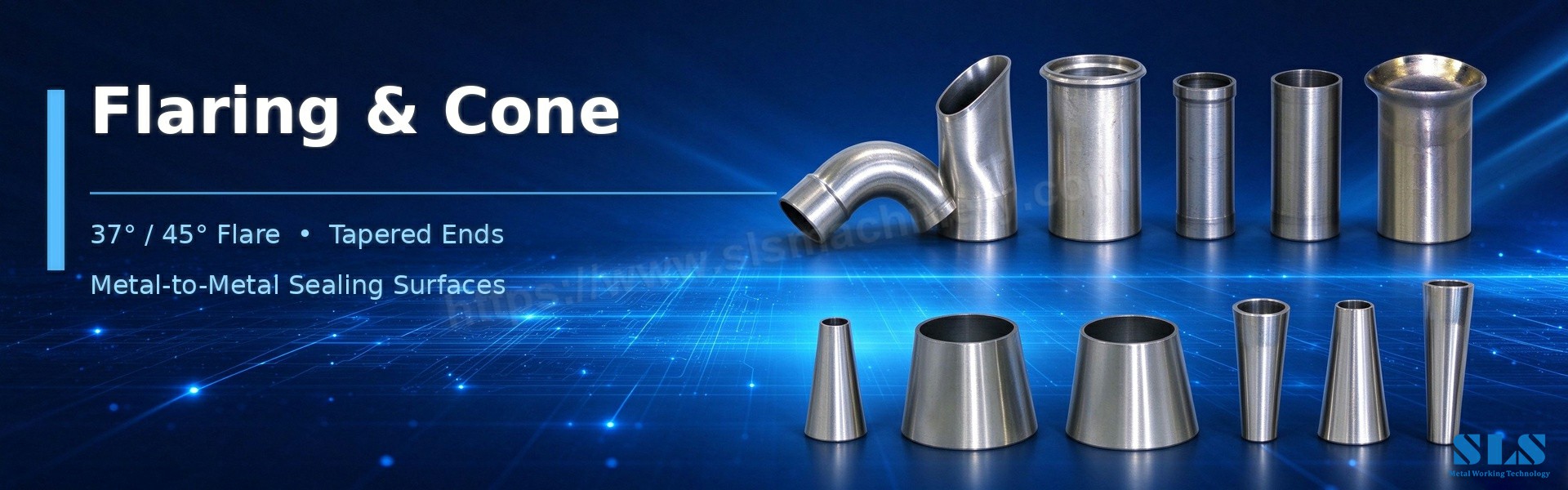

Tube flaring reshapes the end outward at a precise angle — typically 37 degrees (JIC/DIN), 45 degrees (SAE), or 60 degrees (metric). The flared cone mates with a compression fitting to create a metal-to-metal seal without gaskets or O-rings. Flaring is standard in automotive brake lines, HVAC, and refrigeration because it produces a reliable, reusable seal. The flare angle must match the fitting exactly; too steep or too shallow and the joint will leak.
Tube beading, as described above, creates the raised ring that retains hoses. It is the fastest and most common end form for flexible hose assemblies.
The table below compares the four processes:
Process | Purpose | Wall thickness | Typical use | Connection |
Tube expansion | Increase OD for slip-fit | Decreases | Heat exchangers, refrigeration | Outer tube / sheet fit |
Tube reduction (swaging) | Decrease OD for nesting | Increases | Fuel lines, hydraulic, exhaust | Inner tube / nested fit |
Tube flaring | Create sealing cone | Minimal change | Brake lines, HVAC | Compression fittings |
Tube beading | Form hose-retention ring | Minimal change | Cooling hoses, vacuum lines | Hose + clamp |
Beyond the four core processes, tube end forming machines produce several other shapes that matter in assembly:

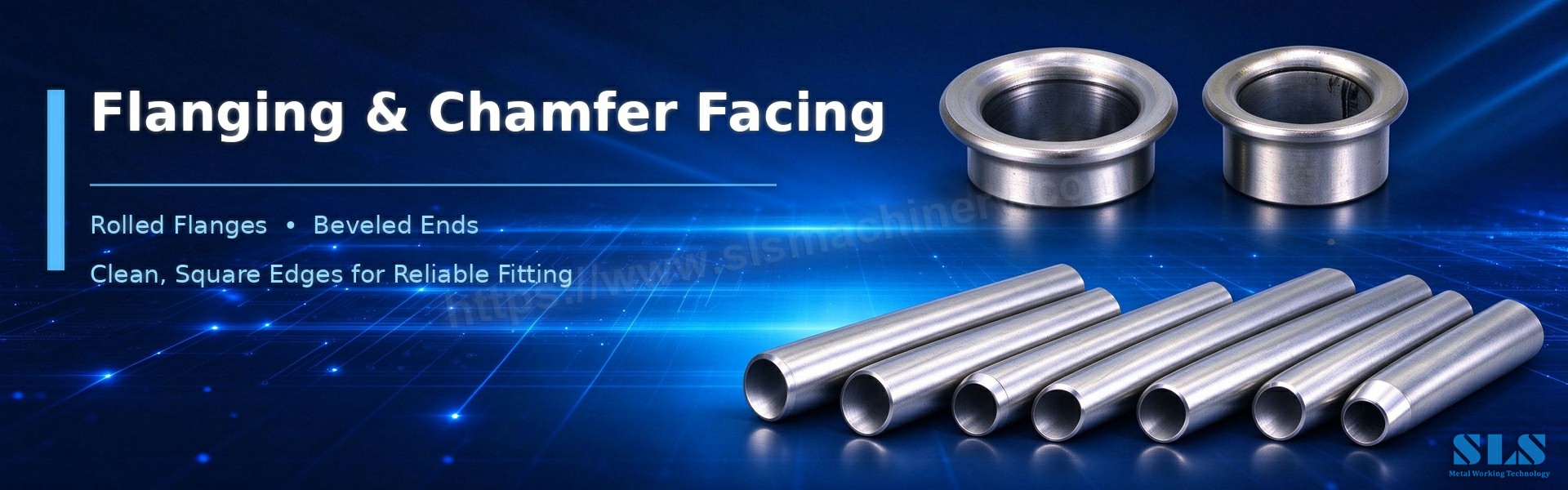

• Tube flanging bends the end outward to form a flange, creating a flat surface for bolted or welded connections. Flanging is common in pipelines, HVAC ducting, and structural assemblies.
• Chamfer facing removes the sharp edge at the tube end and machines a clean face. A chamfered end is easier to insert into fittings, protects seals during assembly, and improves weld preparation.
• End closing seals the tube end completely. It is used for furniture legs, protective covers, and products where an open end is not acceptable.
• Upsetting thickens the tube wall locally at the end, which creates a stronger section for threading or high-pressure connections.
• Knurling and profile forming add grip patterns or special cross-sections to the tube end for specific applications.
Many modern machines are multi-station units: they perform two or more operations in sequence — for example, reduce, flare, and bead an exhaust joint in a single cycle. Multi-station tooling is the reason one tube end forming machine can replace several dedicated presses on the shop floor.
There are two main methods for forming beads:
Ram forming is the fast, high-volume method. The tube is clamped in position while an expansion punch pushes the wall outward, then a second punch reduces the end back to the pilot diameter, leaving one or more beads. Ram forming can create a double bead in a single cycle and is the standard choice for automotive and HVAC production lines, where cycle time drives cost.
Internal roll forming shapes the bead by applying axial pressure through serrated clamp jaws that roll the tube material inward. The process is slower than ram forming, but it produces very tight tolerances and a smooth, uniform bead profile. Internal roll forming is preferred for medical, aerospace, and other applications where exact dimensions and surface quality are critical.
Other techniques include rotary forming and segmented tool sizing. Rotary forming uses rotating dies or rollers to shape the end around the circumference; segmented tool sizing uses a set of split dies that close around the tube to expand or reduce it. Both are useful for larger diameters and complex shapes.
The choice between these methods depends on production volume, precision requirements, material, and tooling cost. High volume and multiple beads favor ram forming; tight tolerances and delicate materials favor internal roll forming or rotary forming.
Tube beading and pipe end forming are used wherever a hose, fitting, or another tube must connect reliably:
• Automotive: cooling, fuel, vacuum, brake, and air-conditioning lines. Beaded ends keep radiator hoses in place and prevent leaks in emission and fluid systems. Multi-station machines form exhaust joints, fuel rails, and AC lines.
• HVAC and refrigeration: copper and aluminum tubes are flared and beaded for condensers, evaporators, and heat exchangers. Flared ends create leak-proof refrigerant connections.
• Hydraulic systems: beaded and swaged ends prevent hose pull-off under high pressure. Flat beads distribute clamp force evenly and reduce hose damage.
• Aerospace: beaded tube ends are used on low-pressure fluid lines (below about 250 psi) — fuel tank venting, gravity returns, and oil breather lines — where a rubber hose slips over the bead and is clamped behind it.
• Medical devices: internal roll forming produces precise beads on small fluid-transfer tubes where cleanliness and dimensional control are critical.
• Furniture and fitness equipment: expanded, reduced, and closed tube ends give chair legs, bed frames, and gym equipment a clean, finished look without extra caps.
• Home appliances: beading strengthens drain hoses in washing machines and dishwashers and prevents gas leaks in delivery lines.
The material and wall thickness of the tube determine which end-forming operations are safe and which tooling is required.
• Copper and aluminum are ductile and form easily. They are common in HVAC, refrigeration, and automotive cooling. A thin-wall copper tube can often be expanded 15–20 percent in diameter; aluminum needs clean, polished tooling to avoid scratches and clamp marks.
• Stainless steel offers strength and corrosion resistance but work-hardens quickly. It needs higher forming force, precise tooling, and careful control to avoid cracking. Typical safe expansion is 5–10 percent for thick walls.
• Brass and titanium are used in specialized products that need strength and corrosion resistance. They require well-matched tooling and slower forming speeds.
• Carbon steel is the workhorse of construction and fabrication. It forms predictably, but the exact behavior depends on wall thickness and grade.
Thin walls risk splitting during expansion or beading, and wrinkling during reduction. Thick walls need more force but tolerate deeper forming. As a rule, beads on thin-wall tubes should be shallow, and the tooling must match the actual tube diameter and wall thickness — never the nominal size alone.
Machine selection starts with the parts you actually produce, not with the machine catalogue.
• Dedicated single-process machines do one operation — beading, flaring, or reducing. They are simpler, cheaper, and easier to maintain, and they suit high-volume production of a single end form.
• Combination (multi-station) machines handle several operations with interchangeable tooling. They save floor space, reduce changeover time, and suit shops that run many different parts in smaller batches.
When comparing machines, look at:
• Maximum tube diameter and wall thickness capacity
• Forming force (tonnage) and whether it is hydraulic, pneumatic, or servo-electric
• Number of stations and tool-change speed
• Cycle time and whether the machine can be linked to an automatic feeder
• Control system: CNC multi-station machines store programs for each part, which improves repeatability across shifts
• Tooling quality: hardened steel dies last longer and hold tolerance better
Production volume matters too. High-volume lines benefit from automation and quick cycles; job shops benefit from flexibility and quick tool changes. A reliable supplier should provide technical support, tooling design service, and training. Ask for references and case studies from your own industry.
Adding tube beading to your tube end forming machine operation delivers measurable benefits:
• Fewer parts: the bead is a built-in mechanical stop, so clamps and adapters can be simplified or eliminated.
• Faster assembly: hoses slide on, hit the bead, and are clamped — alignment is automatic.
• Better retention: the mechanical lock holds under pressure spikes, vibration, and thermal expansion.
• Tighter tolerances: precision tooling keeps bead height and position consistent, which is critical when the bead must match a hose inner diameter.
• Lower cost: one multi-station machine replaces several presses, reduces labor, and cuts scrap.
• Higher reliability: fewer failure points mean fewer leaks, fewer warranty claims, and less downtime in the field.
A: Tube beading is an end-forming process that creates a raised ring near the end of a metal tube. The ring acts as a mechanical stop that keeps hoses from slipping off, and a clamp placed behind the bead locks the hose in place.
A: A tube end forming machine can expand, reduce (swage), flare, bead, flange, chamfer, close, upset, and profile tube ends. Multi-station machines perform several of these operations in one cycle.
A: Tube flaring creates an angled cone (37°, 45°, or 60°) that seals against a compression fitting. Tube beading creates a raised ring that retains a hose with a clamp. Flaring is for metal-to-metal seals; beading is for hose retention.
A: They are the same process. Tube swaging is the mechanical reduction of the tube end diameter so it nests inside a smaller component. It thickens the wall locally and strengthens the joint.
A: Use a double bead when a single bead does not provide enough retention — for example, on long or heavy hoses, or in applications with strong vibration or high pull-off forces.
A: Copper and aluminum are the most ductile and form easily. Stainless steel work-hardens and needs more force; thin-wall stainless should be formed with internal roll forming or rotary methods to avoid cracking.
A: Choose ram forming for high-volume production, speed, and multiple beads in one cycle. Choose internal roll forming when you need tight tolerances, smooth bead profiles, and delicate or thin-wall materials.
A: SLS Machinery offers single- and multi-station tube end forming machines, custom tooling design, and technical support. The machines handle expansion, reduction, flaring, beading, flanging, and chamfering for copper, aluminum, steel, and stainless tube — with CNC control for repeatable, high-quality results.
Tube beading looks like a small detail, but it is the difference between a connection that lasts and one that fails in the field. Whether you need expansion for slip-fit joints, reduction for nested connections, flaring for leak-proof seals, or beading for hose retention, the right tube end forming machine turns a plain tube end into a precise, reliable joint — in seconds.
Start with the part: material, wall thickness, joint type, and production volume. Then match the machine, the tooling, and the bead profile to those requirements. With the right equipment and process, pipe end forming becomes one of the fastest, most repeatable operations on your line.
SLS Machinery builds tube end forming machines for exactly this purpose — from compact single-station formers to CNC multi-station lines with automatic feeding. Our engineers help you select the process, design the tooling, and set up the machine for your tube sizes and materials. Contact SLS Machinery to discuss your tube end forming requirements and get a solution tailored to your production.
