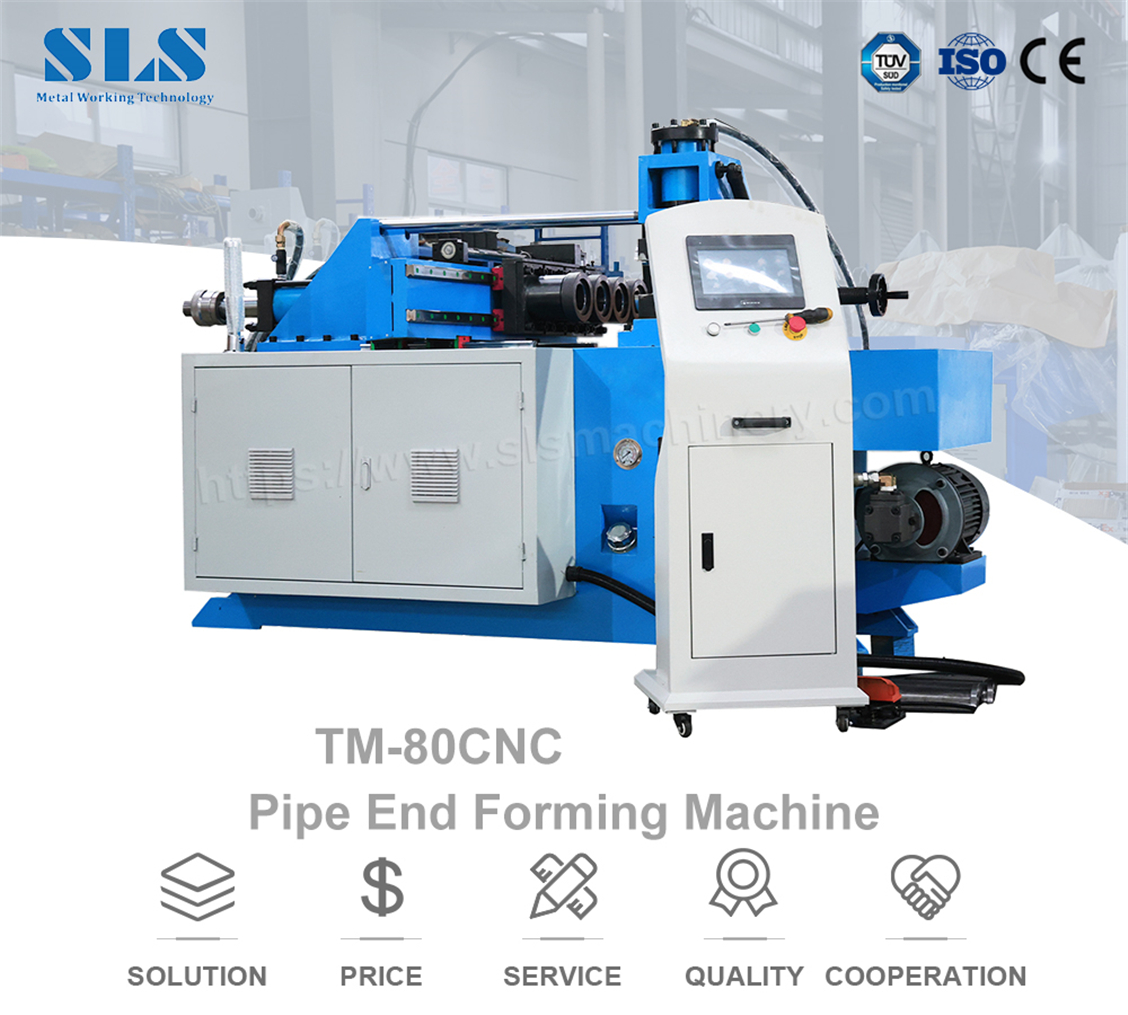

Our TM-80CNC Type Four-Station Tube End Forming Machine | Pipe Reducing Processing | Make Tube OD Reduction，It Is Used To Shape The Inside And / Or Outside Diameter Of A Tube Or Pipe. Tube End Forming Machines Are Widely Used In The Production Of Automotive Exhaust Pipes, Furniture Fittings, And HVAC Parts For High-Volume Production Of Simple Tube End Forms And More Complex, Custom Designs. Our Ram Style Of End Forming Is Created By Forcing A Dedicated Die Over The End Of The Tube And Then Retracting The Die Back Off The Tube. They Are Suitable To Form Materials Of Various Lengths And Wall Thicknesses, Including Heavy-Duty Applications With Large Diameter Tubes.
_________________________________________________________________________
Model: TM-80NC/CNC
Specification: 80mm(3.5")x3mm
Drive Mode: Electric & Hydraulic
Technical: Tube End Reduction / Cold Forming
Business Type: Professoinal Manufacturer
Payment: T/T,L/C,D/P,Western Union,MoneyGram
Lead Time: 35 Days Dated From Deposit Received
Contact us：info@slsmachinery.com
Wechat/Whatsapp：+86 18100150701
|
| |

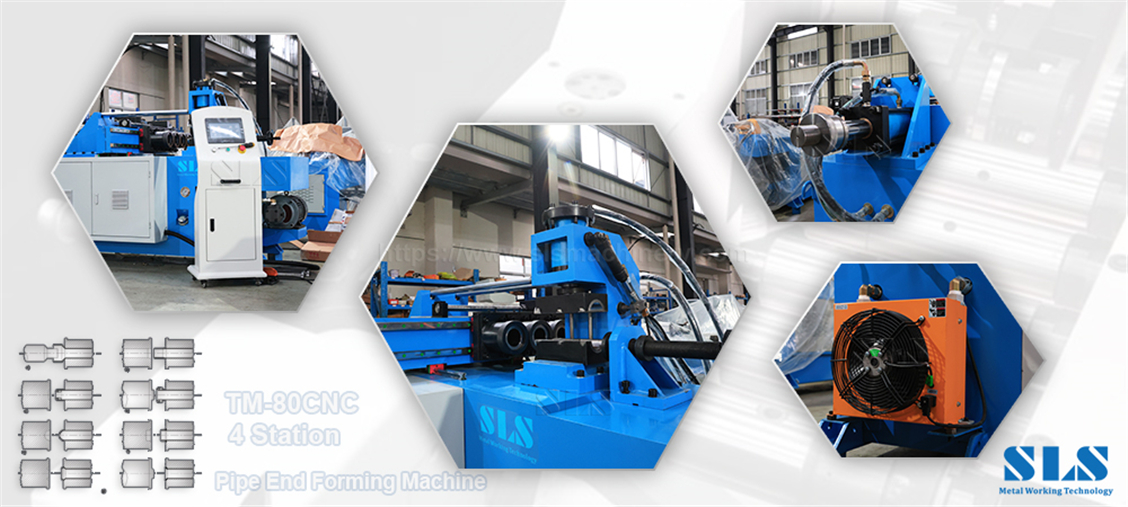

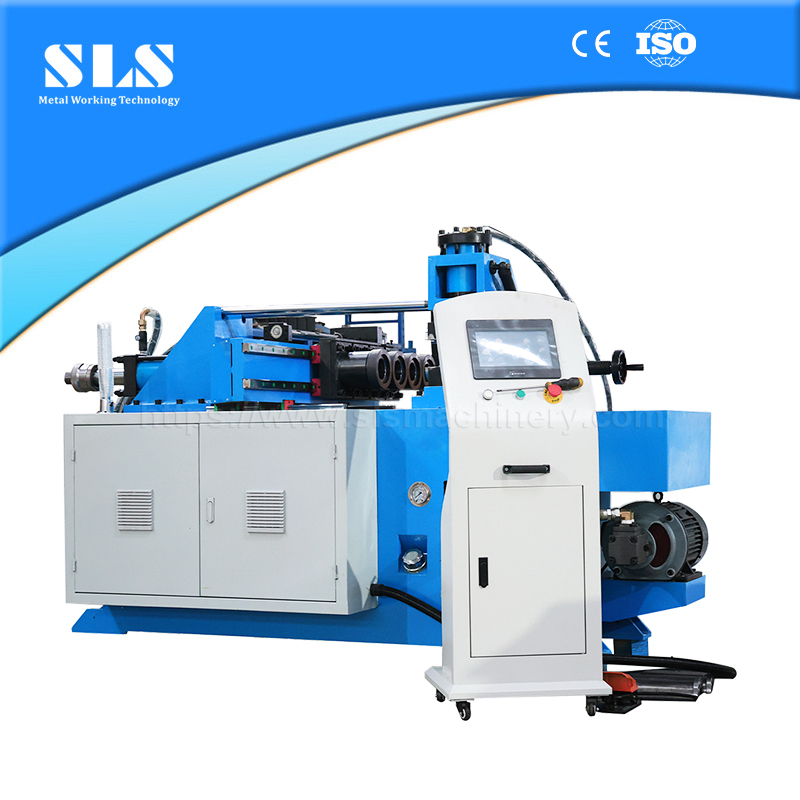

TM-80CNC Type Four-station Tube End Forming Machine | Pipe Reducing Processing | Make Tube OD Reduction
Main Technical Parameters Sheet
Brief Introduction on Tube End Forming Machine | Pipe Reducing Processing
TM-80CNC Type Four-Station Tube End Forming Machine | Pipe Reducing Processing | Make Tube OD Reduction. Machine Processing Of Pipe Diameter Reducing - 4 Station Pipe End Reducer Machine, It Is The Most Common Method For Manufacturing The Steel Pipe Reducer. Complete Reducing Machine To Make Tube Connections Quick And Easy. End Reduction - Tube End Reducing Is A Process That Reduces The Outside Diameter (OD) Of The Tube. Typically This Is Done So That The Reduced End Will Fit Into The Inside Diameter (ID) Of The Same Tube Or Fit Into Some Kind Of An Opening. Our Ram Style Of End Forming Is Created By Forcing A Dedicated Die Over The End Of The Tube And Then Retracting The Die Back Off The Tube. The Die Is Designed To Achieve The Proper OD And Length Of The Reduction And Will Only Create The OD The Die Is Designed For.
SLS Machinery Is A Professional Metal Pipe Processing Machinery Manufacturer That Can Customize Various Pipe End Forming Solutions For You.
If You Are Interested, Please Contact Us, Good Choice Equals Success.
Features on Tube End Forming Machine | Pipe Reducing Processing
● Touch Screen or Human Interface Offers Easy Access to Auto and Manual Operating Modes.
● Equipped with Emergency Stop Device.
● All The Parts Are Made Under Very Strict Quality Control, So The Quality of Machine Is In High Level and The Specification Is Standardized.
● Tube Clamping and End Forming Driven by Hydraulic.
● Both Manual and Automatic Operations Are Available.
● The Design of The Tooling Help Customer Easy to Change.
● Suitable for The Shrinking for Various Metal Pipes with Different Material and Different Shape.
● Forming Shapes Can Be Convex, Concave, Sectional, Long & Flat, Square, V-Shape, Open Elbow, Flat Elbow...Etc.
● The Design of The Tooling Varies with Work-Piece & Customers Requirements.
● Water or Fan Cooling System Ensures The Equipment Long-Time Work Stably Under The High Temperature.
● Foot Pedal Cycle Start.
● Optional:An Additional Feeding System Can Be Added to The Machine. The Operating Security Is Greatly Increased Because The Operators Just Do The Unloading
& Collecting Job of Finished Pipes.
● Optional:Multi Station Can Be Added to The Machine Based on Detailed Forming Requirement.
● Optional: Multi Station Shifting Can Be Chosen As Servo(Electrical) or Hydraulic Control.
● Optional: Double Head Can Be Added to The Machine Based on Detailed Forming Requirement.
Main Application
