Every leak-proof joint in a hydraulic system, a brake line, or a heat exchanger starts with the right tube end. Two processes handle most of that work: tube flaring and tube expanding. The names sit side by side, and both reshape metal tube ends, but they solve different problems and need different machines. Choose the wrong one, and a joint that looks perfect on the bench starts weeping the first time it sees pressure.
This guide compares flaring vs. expanding, explains how tube flaring machines and tube expanding machines work, and helps you choose the right tube end forming machine for your parts, materials, and production volume. SLS Machinery supplies a complete range of tube end forming machines — from compact single-station units to multi-station CNC lines — with custom tooling and technical support for automotive, HVAC, refrigeration, and hydraulic manufacturers.
Put simply, tube flaring opens the tube end into a cone-shaped sealing surface that mates with a compression fitting, while tube expanding widens the end so it fits tightly over another component or locks into a tube sheet.
Tube flaring creates a metal-to-metal seal. The flared end is compressed between a fitting and a nut, so no gasket or O-ring is needed. Tube expanding creates a slip-fit or interference-fit joint: the expanded end grips the mating part mechanically.
Aspect | Tube Expanding | Tube Flaring |
Purpose | Enlarge the end for slip-fit or tube-sheet joints | Form a cone for metal-to-metal sealing |
Diameter change | Increases 2–20% | End opens at a set flare angle (37°/45°/60°) |
Wall thickness | Thins roughly 5–10% | Minimal change |
Connection type | Slip-fit / interference fit | Compression fitting, no gasket |
Typical uses | Heat exchangers, boilers, condensers | Brake lines, hydraulics, HVAC, refrigeration |

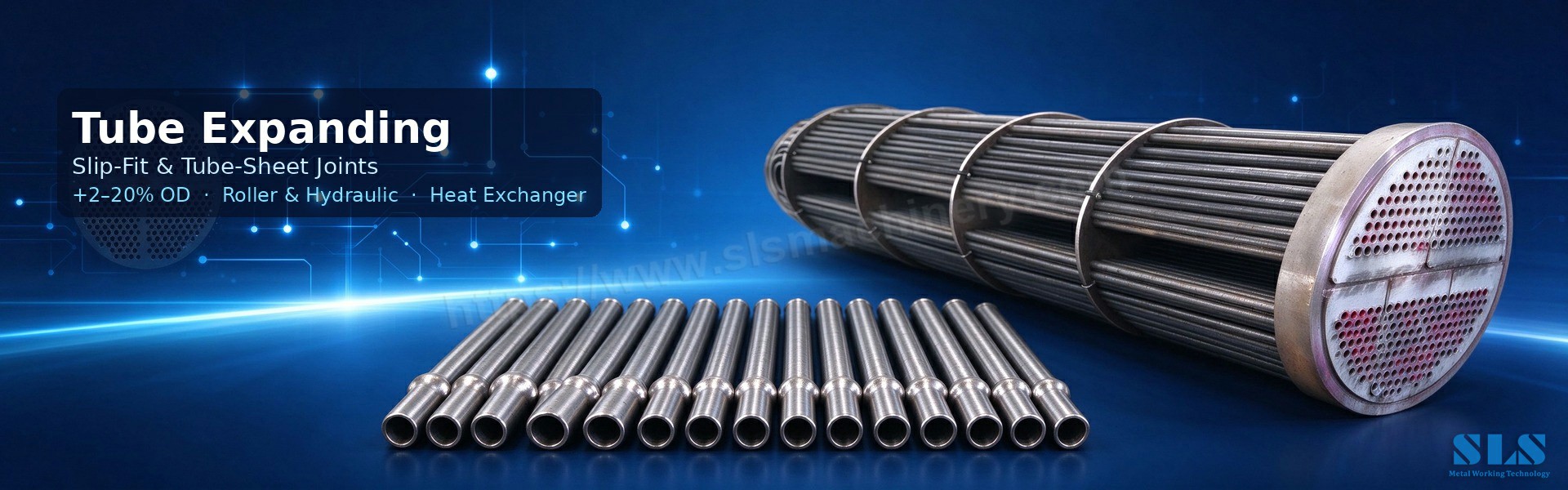

Tube expanding enlarges the diameter at the end of a tube so it fits snugly over another tube or into a hole in a tube sheet. A tube expanding machine — often called a tube expander — drives a tapered mandrel, an expander plug, or a rolling head into the end. The tool forces the wall outward; the metal stretches and the end grows to the target diameter. Because the wall is stretched, it thins by roughly 5–10 percent, a figure you have to respect on pressure-rated parts.
Mechanical tube expanders, the most common type, use hardened rollers arranged around a tapered mandrel. As the mandrel rotates, the rollers wedge outward and press the wall against the tube sheet bore, leaving a strong residual grip. Tapered roll expanders feed themselves: the angle of the rollers draws the tool deeper as it turns. This is the standard approach for boilers, condensers, and heat exchanger tube expander duty.
Hydraulic tube expansion machines use fluid pressure instead of mechanical rollers. They deliver consistent force, hold tolerance to roughly plus or minus 1–2 percent, suit thick or hard tubes, and can expand several tubes at once.
Where it is used: heat exchanger tube sheets, boiler tube rolling, condenser repair, and refrigeration headers — anywhere a tube must lock into a plate without welding or extra fittings.

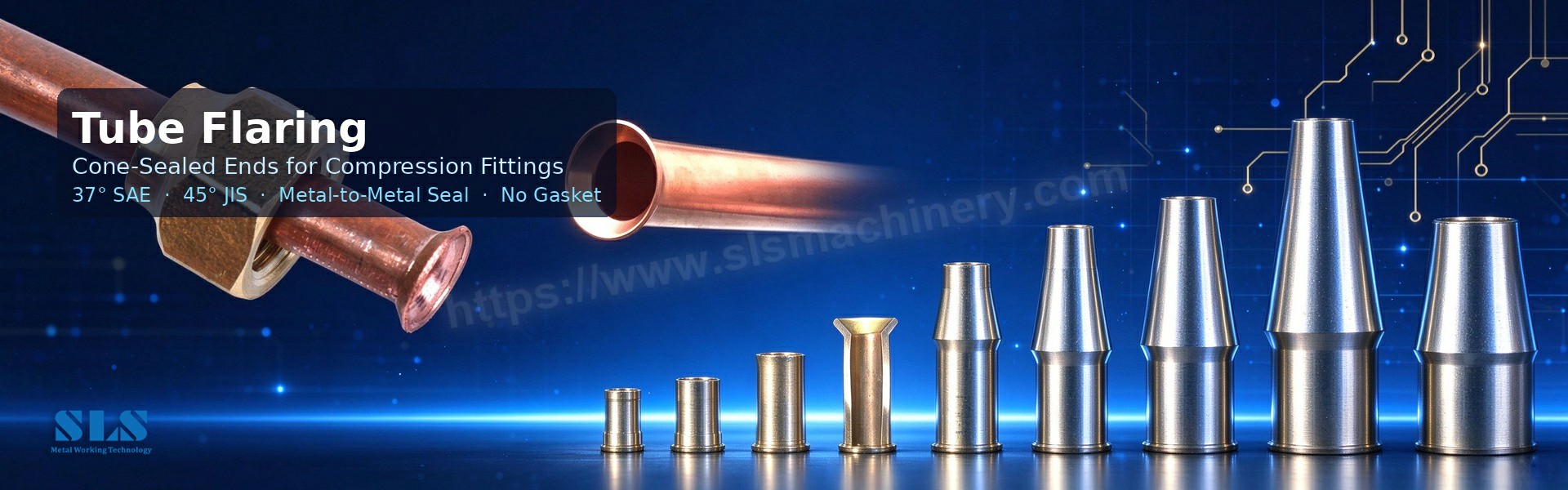

Tube flaring shapes the end of the tube outward at a fixed angle to create a cone. A tube flaring machine clamps the tube in a die, aligns a flaring cone with the opening, and presses the cone into the end until the metal forms the required flare. The result is a flared tube end that seals metal-to-metal against a matching fitting and nut — no gasket, no O-ring, no solder.

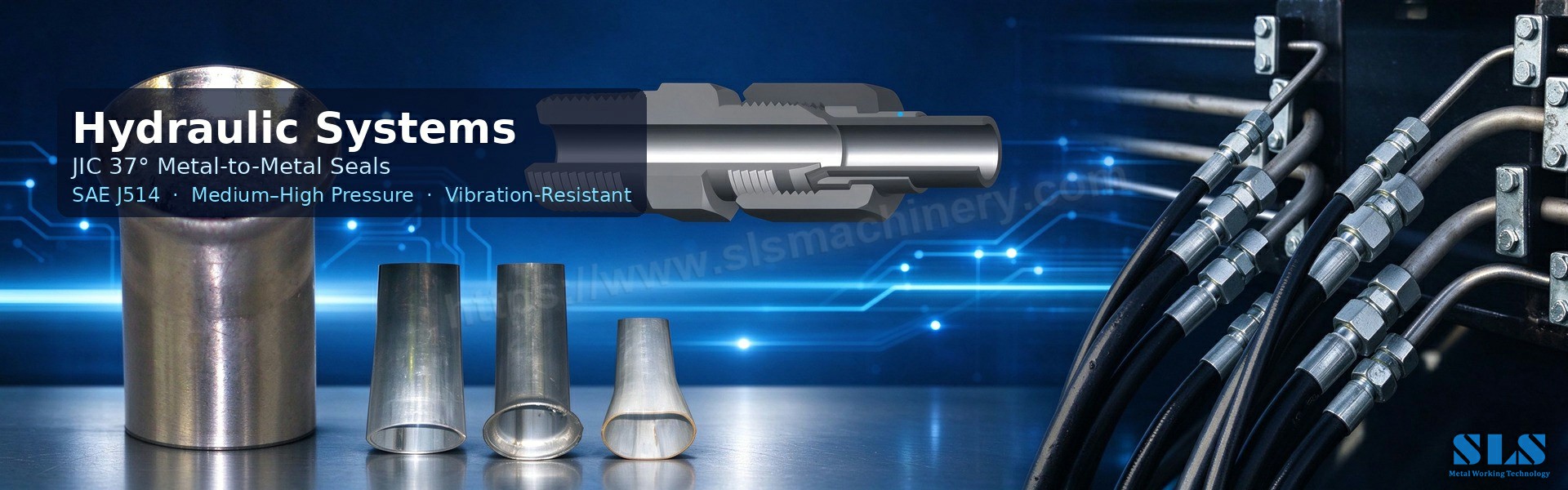

Flare angles follow industry standards: 37 degrees (SAE and JIC) for hydraulic and automotive fittings, 45 degrees (JIS) for refrigeration and many Asian markets, 60 degrees for metric connections, and 90 degrees when the end is flattened into a flange for bolted joints. The flare angle must match the fitting exactly — a 37-degree flare seated in a 45-degree fitting will leak, so the two are never interchangeable.

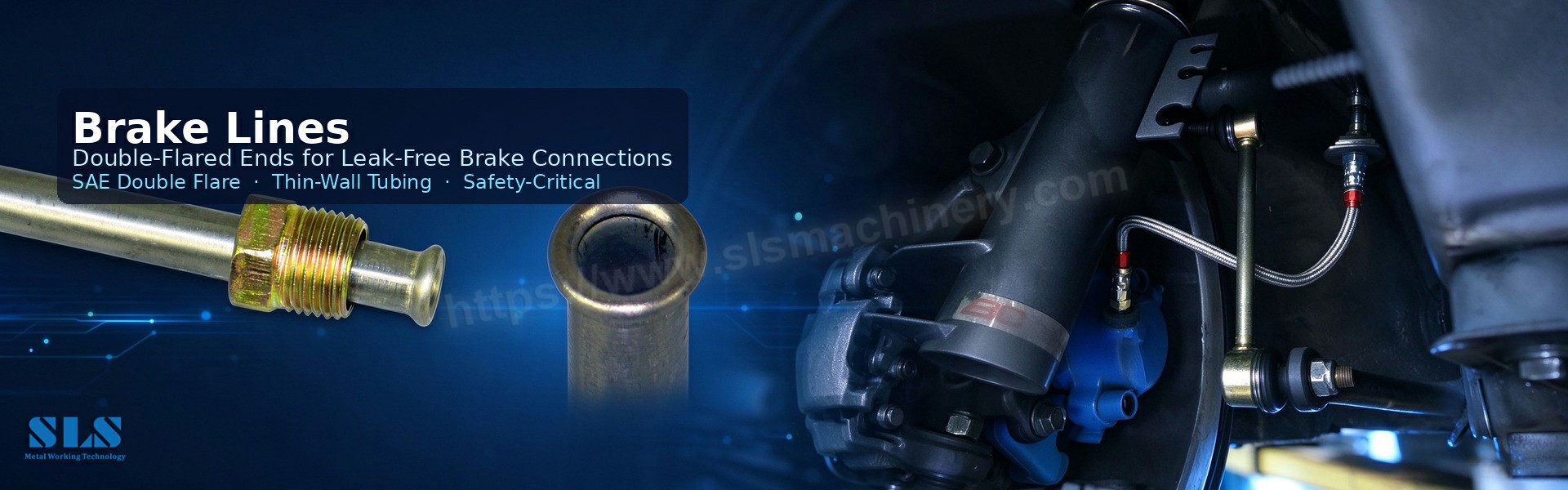

Single flares and double flares are the two main forms. A double flare folds the end inward first, then flares it outward, adding metal where the cone is thinnest — a real advantage on thin-wall copper and steel tube. Copper tube flaring is standard in refrigeration and HVAC; brake line flaring is the classic automotive example, where a 37-degree SAE flare carries the full pressure of the hydraulic brake system.
Beyond hand tools, production shops use hydraulic tube flaring machines for repeatable angles and stable cycle times, and pipe flaring machines handle larger diameters for industrial piping.
Two more end forms appear in almost every shop. Tube swaging — also called tube reduction — shrinks the end diameter so one tube nests inside another; the wall thickens at the reduced section, which actually strengthens the joint. Tube beading rolls a raised ring near the end to hold a hose and clamp; a tube beading machine is often part of the same multi-station cell. Tube flanging bends the end out to a flat rim for bolted or welded connections, and chamfering cleans the cut edge for assembly. Each of these is a tube end forming process, and most modern machines switch between them by changing dies.
A tube end forming machine reshapes the end through four cooperating systems: a rigid frame, forming dies and tooling, a clamping unit that holds the tube against slip, and a drive that supplies the force. On CNC models, a control system sets stroke, position, and speed, and repeats the cycle without operator input.
Drives come in three flavors. Hydraulic drives generate the highest force with smooth motion — the right choice for thick-walled or hard tube. Pneumatic drives cycle fast but deliver less force, which suits thin-walled parts. Servo-electric drives offer precise position control, lower energy use, and quiet operation, and they fit naturally into automated lines.
Machines are also defined by how many stations they carry. Single-station units perform one operation per cycle and keep cost and footprint low. Multi-station tube end forming machines arrange several stations in sequence so a part can be reduced, flared, and beaded in one pass — less handling, better consistency, higher output. CNC tube end forming machines add program storage and automatic feeding for high-volume work.
Interchangeable tooling is what makes one machine flexible: a die set for expanding, another for flaring, another for beading — changed in minutes.
Start with the part, not the catalogue. Material matters first: copper and aluminum form easily and tolerate larger diameter changes; stainless steel work-hardens and needs higher tonnage and more careful tooling. Tube size comes next — outside diameter and wall thickness set the forming capacity you need. Then decide the process mix: a dedicated machine is cheaper if you run one operation at high volume; a combination machine earns its cost when you switch between expanding, flaring, and beading across the week.
Production volume decides the automation level. Prototyping and low volume: manual or single-station. Medium runs: semi-automatic. High volume: fully automatic with feeding and die change. Finally, check the supplier's tooling support — custom dies for odd sizes and materials are normal, and training and spare parts matter more than the sticker price.
Automotive plants use these machines for exhaust joints, fuel rails, and brake lines, where a 37-degree SAE flare has to hold hydraulic pressure for the life of the vehicle. HVAC and refrigeration manufacturers flare and expand copper and aluminum tube for condensers, evaporators, and chillers. Heat exchanger builders expand thousands of tubes into tube sheets, relying on tube expansion machines for a consistent grip across the bundle. Hydraulic and pneumatic system shops flare and bead lines for fittings and hose retention. Furniture and structural tubing makers use reduction and flanging for clean, finished joints. In every case the same logic applies: pick the end form that matches the joint, then let the machine repeat it.
Cracking usually comes from stretching metal past its ductility limit — the classic failure in flaring and expanding. Stay inside the safe diameter change, use an internal mandrel to support the wall, and anneal brittle materials before forming. Wrinkling appears when compression beats the material's capacity, mainly in swaging and beading; segmented tooling and slower strokes give the metal time to flow. Leaks almost always trace back to dimensional control: a flare angle that does not match the fitting, or an expansion that did not reach the target diameter. Check with gauges, not eyeballs.
Repeatability is a machine problem as much as a process one — calibrate, prefer servo or CNC control, and measure first articles. Bent tubes can be formed with segmented expanders that grip section by section, or by forming the end before the bend. And tooling wear is the quiet killer: inspect dies and rollers, lubricate, and keep spares on hand.
Can one tube end forming machine do both flaring and expanding?
Yes. Combination machines with interchangeable tooling switch between expanding, flaring, reducing, and beading. A dedicated machine still wins where volume is huge and the process never changes.
What is the difference between flaring and flanging?
Flaring creates a cone (37°/45°/60°) that seals against a compression fitting. Flanging bends the end to about 90° into a flat rim for bolted or welded joints.
Which materials are easiest to form?
Copper and aluminum. They tolerate larger diameter changes without cracking. Stainless steel and titanium need more force and tighter process control.
Can tube end forming work on bent tubes?
Yes, with segmented expanders and rotary dies that apply force in sections. Often the end is formed after bending to preserve the final geometry.
How do I get a leak-proof flare?
Match the flare angle exactly to the fitting, use the right clamp and cone, deburr the cut edge, and check with a gauge. For thin walls, use a double flare.
What is the difference between tube swaging and tube reduction?
They describe the same operation: shrinking the end diameter so one tube nests inside another. Swaging is the more common shop term.
When should I use a double flare?
On thin-wall tube and in applications with vibration, where a single flare would crack or work loose. Brake and fuel lines are the classic cases.
How much can a tube be safely expanded?
It depends on material and wall. Copper can usually take 15–20 percent before thinning becomes a problem; stainless steel and thick-wall tube are safer at 5–10 percent.
Why choose a multi-station tube end forming machine?
Several operations complete in one pass, cutting handling time and improving consistency — the right answer for complex ends and high volume.
How does SLS Machinery help with tube end forming?
SLS Machinery designs and builds single- and multi-station tube end forming machines, CNC lines with automatic feeding, and custom tooling, with engineering support to set up your processes.
Tube flaring and tube expanding serve different joints, and neither replaces the other. Flaring gives you a metal-to-metal seal for fittings; expanding gives you a mechanical grip for slip-fit and tube-sheet connections. The rest is matching the process to the material, the wall, and the volume — and letting a machine repeat it.
SLS Machinery builds tube end forming machines for exactly this job: compact single-station formers, multi-station units, and CNC lines with automatic feeding, plus custom tooling and setup support. Contact SLS Machinery with your tube sizes, materials, and joint drawings, and we will recommend the machine — and the process — that fits your production.
