SLS Machinery is a professional manufacturer of Automatic CNC tube benders and precision tube forming equipment, serving tube bending needs across heat exchangers, HVAC, automotive, and home appliance industries. Learn about CNC bender working principles, core advantages, and key applications.
In the precision manufacturing of heat exchangers and electric heating elements, heat exchanger tube bending and forming processes are critical to heat transfer efficiency, structural integrity, and long-term reliability. SLS Machinery, as a professional tube processing equipment manufacturer, is committed to delivering high-performance precision CNC tube benders and end-forming automated bending solutions
to help manufacturers worldwide transition from traditional manual forming to intelligent, automated production.
How Precision CNC Tube Benders Work
A modern CNC tube bender is an automated system that uses computer numerical control to bend tubes and pipes with exceptional precision and repeatability. The core working principle is based on the rotary draw bending process: the tube is clamped onto a bend die, and the bending arm rotates around the die, gradually forming the material to a preset angle and radius.
A complete precision bending system consists of five key components that work together as an integrated system:
Bend Die：The primary forming tool that determines the bend radius
Clamp Die：Secures the tube firmly against the bend die to prevent slippage
Pressure Die：Applies controlled force to keep the tube against the bend die, preventing flattening on the outside radius
Mandrel：Provides internal support to prevent collapse, wrinkling, or oval deformation—especially critical for thin-walled tubes and tight-radius bends
Wiper Die：Positioned at the tangent point to prevent wrinkling on the inside radius, ensuring a smooth surface
SLS Machinery's CNC pipe bending machine feature all-electric servo drive systems. Compared to traditional hydraulic machines, they achieve bend arm repeatability as tight as ±0.05 degrees and offer energy savings of up to 70%, with quieter, cleaner operation and no risk of oil leaks. The machines are equipped with multi-axis control systems that precisely manage three critical parameters: Degree of Bend (DOB), Distance Between Bends (DBB), and Plane of Bend (POB), enabling complex 3D multi-plane bending and variable-radius freeform shaping.
Key Advantages: Why Choose Precision CNC Tube Benders
Unmatched Precision and Consistency：Eliminates human error, ensuring identical results from the first part to the thousandth—meeting strict standards in aerospace, automotive, and other high-demand industries.
High Efficiency and Low Scrap Rates：Automated programming and quick tool changes shorten cycle times; software simulation optimizes paths to minimize material waste.
Handles Complex Geometries：Easily performs multi-plane bends, left-and-right-hand bending, and coil forming—making compact, high-performance heat exchanger designs possible.
Wide Material Compatibility：With appropriate tooling and mandrel configurations, handles copper, stainless steel, aluminum, titanium, and various other tube materials.
Key Applications: Supporting Tube Forming Across Core Industries
SLS Machinery's precision bending equipment plays a vital role across multiple manufacturing sectors：
Heat Exchanger and HVAC Manufacturing：This is the most critical application area. Whether it's copper U-tubes and serpentine coils in air conditioner condensers and evaporators, or stainless steel helical tubes in industrial heat exchangers, precision bending ensures smooth flow paths and maximum heat transfer surface to improve energy efficiency. SLS Machinery's equipment handles thin-walled copper and stainless steel tubes without wrinkling or deformation—preserving heat exchanger performance.
Home Appliance Production：From microwaves, ovens, and dishwashers to water heaters and washing machines—numerous electric heating elements and tubing components require precision bending.
Automotive Industry：Used for fuel lines, brake tubes, seat frames, and thermal management system tubing in new energy vehicles.
Commercial and Industrial Equipment：Covers applications in food machinery, medical diagnostic instruments, semiconductor manufacturing equipment, and other fields with demanding precision and cleanliness requirements.
SLS Machinery: Your Tube Fabrication Technology Partner
As a professional manufacturer focused on tube processing equipment, SLS Machinery not only offers standard CNC tube benders and end-forming machines. Our core strength lies in providing complete solutions—from custom tooling design (mandrels, bend dies, etc.) to fully customized machines based on your specific drawings and production requirements.

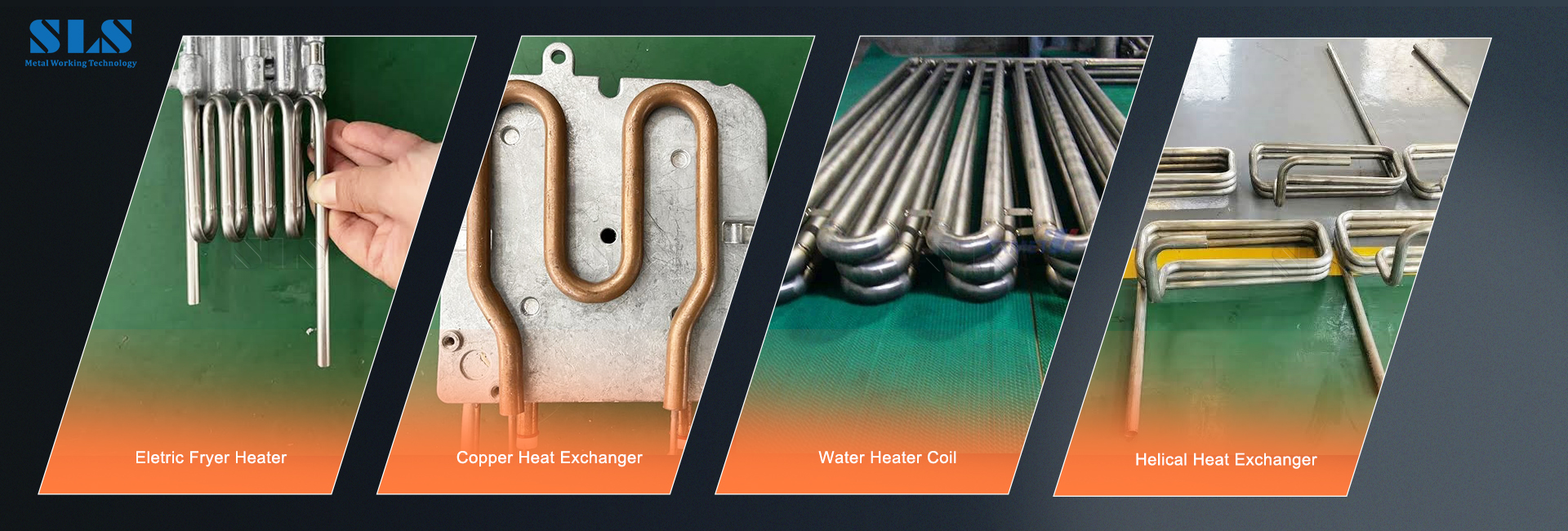

Our recently completed projects include copper heat exchanger coils (copper tube bending), helical heating tubes, and stainless steel square coils—demonstrating our process flexibility in handling different materials, cross-sections, and complex geometries.
From project evaluation and process design to equipment delivery and technical support, SLS Machinery is dedicated to helping you optimize your production processes and enhance product competitiveness. Contact us to discuss your specific needs.
