In the era of AI-driven computing, high-density data centers are turning to liquid cooling as the only practical way to handle the heat. At the heart of every CDU (Coolant Distribution Unit) liquid cooling system lies the Manifold—a critical component that splits and distributes coolant evenly to every single server. The quality of its manufacturing directly determines the reliability of the entire cooling system. Traditional fabrication methods often suffer from low efficiency, inconsistent quality, and time-consuming secondary finishing. This article focuses on the Tube collaring machine - also known as a pipe hole punching and flanging machine — built by SLS Machinery. We'll break down how it works, why it's a game - changer, and how it offers liquid cooling manifold manufacturers a practical path to high-precision, scalable production.
1. The Manifold: The Indispensable "Water Hub" in a CDU Liquid Cooling System
Introduction: Why Aluminum Bending Demands More Than Just a Machine

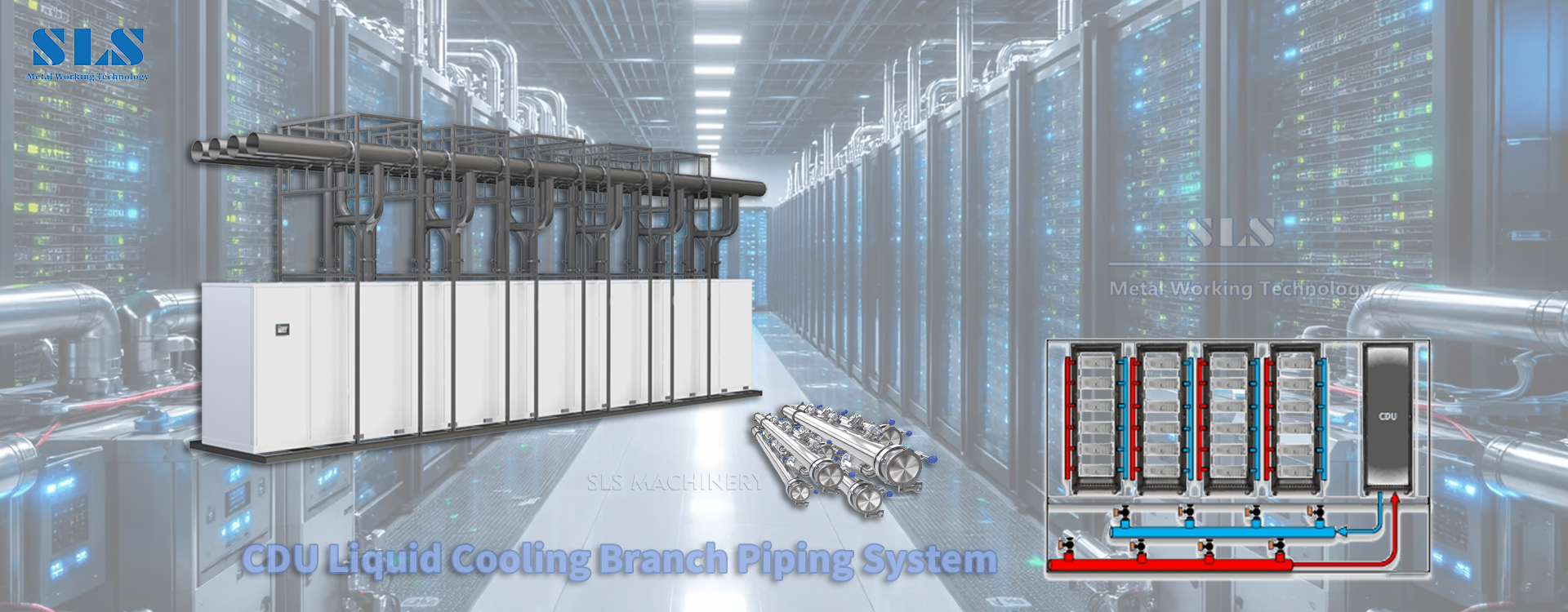

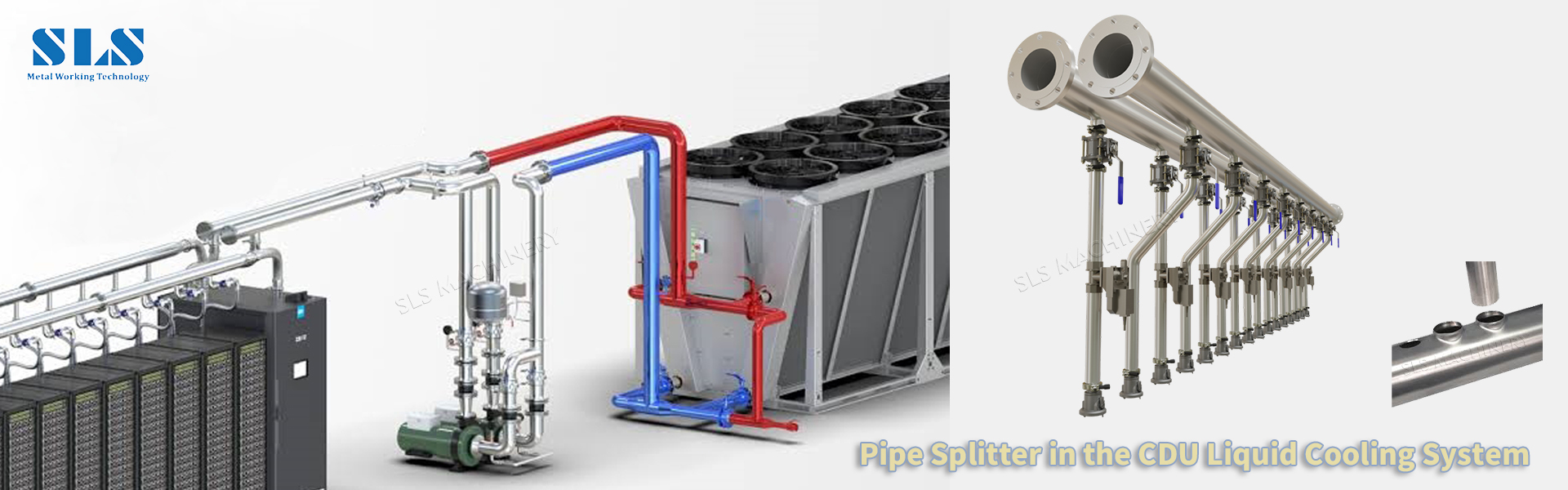

In a CDU liquid cooling system, the Manifold—also called a header or distributor—is responsible for taking the coolant from the CDU and distributing it evenly to the cold plates on each server. It's typically made up of two parallel main pipes: one for distributing the coolant out and one for collecting the warm return flow. By creating multiple branch outlets along these main pipes, the Manifold achieves a "one-in, multiple-out" flow distribution.
The quality of a Manifold directly impacts two critical performance metrics:
Seal integrity and pressure resistance, which depend on the quality of the branch joint—whether the hole is smooth, free of cracks, and has a uniform flanged lip.
Flow uniformity across branches, which relies on the precision of hole positioning and spacing.
These two factors happen to be exactly where the pipe collaring machine excels. For manufacturers focused on CDU manifold manufacturing or general manifold fabrication, this equipment is quickly becoming indispensable.
2. The Pipe Collaring Machine: A Purpose-Built Tool for Manifold Branching
2.1 What Is a Pipe Collaring Machine?
A pipe collaring machine (sometimes called a tube collaring machine or a pipe hole punching machine) is an automated piece of pipe fabrication equipment designed specifically to create branch connections on metal pipes. In one continuous sequence, it performs three operations on the base pipe (commonly copper, stainless steel, or aluminum):
Punching the hole
Flanging (forming a raised lip around the hole)
Trimming the flange to a smooth finish

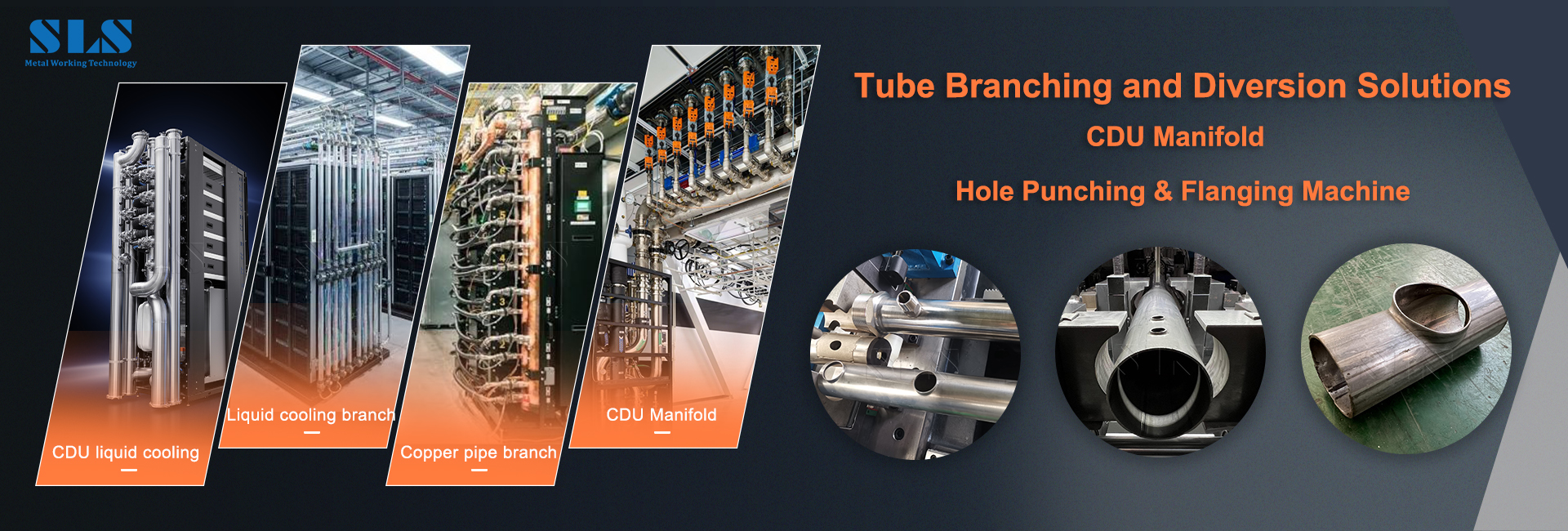

The result is a finished "collar hole" ready for connecting branch pipes. This is why the machine is also referred to as a tube punching machine, pipe branch forming machine, or pipe joint forming machine—all describing the same core capability.
2.2 How It Works: Extrusion vs. Drilling
SLS Machinery's pipe collaring machine uses an extrusion-based system: a tool pushes the metal from the inside of the pipe outward to form the collar. This is fundamentally different from the traditional alternative—hydraulic pipe drilling or standard T-drilling.
Extrusion: The metal flows plastically, maintaining a continuous grain structure. The formed flange is smooth, free of burrs, and has no micro-cracks. This is true chip less pipe punching and cold forming pipe technology at its best. It's ready for welding or connection without any extra finishing.
T-drilling: This is a cutting process. It removes material, leaving behind cut marks and residual stress. Micro-cracks are possible, which can compromise long-term sealing and pressure strength over time.
For liquid cooling systems, where even tiny leaks can cause catastrophic damage, the extrusion pipe branching process is clearly superior.
3. SLS Machinery's Core Product Lineup
3.1 BP-50 Automatic Pipe Collaring Machine
The BP-50 is SLS Machinery's classic model, designed for smaller to medium-diameter pipes typically used in liquid cooling systems.
Capacity: Handles pipe diameters up to 50mm, with wall thicknesses common in liquid cooling applications.
Drive System: Servo motors control feed and rotation, while a hydraulic system performs the punching and flanging. This makes it a CNC tube punching machine with high repeatability.
Control: Fully automatic PLC control with an HMI touchscreen—a true automatic pipe punching machine. The operator only needs to load and unload the pipe.
Key Advantage: Can punch and flange holes at virtually any position along the pipe (usually supporting double-row hole layouts). The punch has a service life exceeding 100,000 cycles, making it ideal for high-volume continuous production. It works effectively as both a stainless steel pipe collaring machine and a copper tube flanging machine.
3.2 BP-60 Series and Large-Diameter Solutions
For larger Manifolds, SLS offers the BP-60 series and other expanded models, which can handle pipe diameters up to 89mm, 114mm, and even 140mm or more, with wall thicknesses up to 3mm. These heavy-duty pipe flanging machines can also arrange branch holes along straight lines or non-linear paths, offering flexibility for complex flow path designs. They are often used as collector pipe punching machines or aluminum pipe punching machines in larger-scale production lines. The series also includes a pipe collar trimming machine function, ensuring a clean finish on every branch.
4. Why Choose SLS's Pipe Collaring Machine for CDU Manifold Manufacturing?
4.1 Precision: The Foundation of Flow Uniformity
The precision of branch hole positioning and flange inner diameter directly affects flow distribution accuracy. SLS's machine uses servo-driven feed and rotation axes to achieve accurate positioning, combined with high-precision tooling. This ensures that every branch outlet is manufactured to tight tolerances. For the best-in-class machines, hole spacing accuracy can be within ±0.15mm, and flange perpendicularity within 0.1mm. That's more than enough to meet the demanding flow uniformity requirements of modern liquid cooling systems. This level of precision makes it ideal for hydraulic manifold drilling machine applications where accuracy is non-negotiable.
4.2 Efficiency: From "Step-by-Step" to "Batch Production"
Traditional Manifold fabrication often involves a series of separate operations—drilling, countersinking, flanging, trimming—spread across multiple machines. SLS's pipe collaring machine integrates punching, flanging, and trimming into a single machine and a single clamping. Cycle time per hole can be as fast as 16 seconds. The machine can store over 200 product parameter presets, making changeovers quick and simple—perfect for liquid cooling manufacturers who work with multiple specifications and smaller batch sizes. This is what sets a modern tube hole punching machine apart from older, less flexible equipment.
4.3 Quality: Chip less Processing and No Secondary Finishing
The extrusion process used by SLS's pipe hole punching machine is chip less—it doesn't produce metal shavings or chips. The finished flange is smooth and clean, requiring no deburring, sanding, or other secondary finishing before it moves to the welding or assembly stage. This pipe hole extrusion process not only saves labor costs but also eliminates the risk of introducing dimensional errors or surface damage during post-processing.
4.4 Versatility: One Machine for Stainless Steel, Copper, and Aluminum
CDU liquid cooling Manifolds are commonly made from 304 stainless steel (for corrosion resistance) or copper alloys (for excellent thermal conductivity). SLS's pipe collaring machine can handle stainless steel, copper, aluminum, and other metals with minimal adjustment. This means a single machine can cover the vast majority of a liquid cooling manufacturer's material needs, whether you're producing a hydraulic manifold or a simple collector pipe.
5. Final Thoughts: Bringing Manifold Manufacturing Back to "One-Shot" Perfection
As liquid cooling transitions from a niche choice to an absolute necessity, the Manifold—the key artery connecting the CDU to each server—must be manufactured to meet the data center industry's near-obsessive standards for reliability. SLS Machinery's pipe collaring machine offers a compelling path forward with its three core strengths:
Extrusion-based forming for superior material integrity
High-precision servo control for consistent accuracy
Integrated punching, flanging, and trimming for streamlined efficiency
Choosing SLS's machine isn't just about buying a piece of equipment; it's about adopting a proven, specialized manufacturing system designed specifically for branch pipe fittings. In the fast-moving world of liquid cooling, the manufacturers who adopt more precise tools to build more reliable Manifolds will be the ones defining the standards for the next generation of data center cooling.
This article is based on product information from SLS Machinery and the practical manufacturing requirements of liquid cooling Manifolds. It is intended as a reference for professionals involved in liquid cooling pipeline fabrication. For detailed specifications and customization options, including specific models like the BP-50 or BP-60 for your manifold production equipment needs, please contact SLS Machinery directly.
