Our BP-89 Type CNC Pipe Collaring Machine | Metal Tube Branching, Tee Forming, Punch Holes Flanging & Drill Bit Ground Equipment Is A Multifunctional CNC Machine That Can Complete The Punching, Hole Drawing And Flat Cutting Of Pipe Fittings In One Go. Through The Hydraulic Or Servo Drive System, The Mold Accurately Punches The Pipe Fitting To Form An Elliptical Hole. During The Punching Process, The Strength And Precision Of The Mold Directly Affect The Quality And Consistency Of The Hole. After The Punching Is Completed, The Machine Uses The Hole Turning Bead To Flanging The Elliptical Hole To Form A Branch Hole. During The Flanging Process, The Shape And Pressure Control Of The Top Bead Are Key To Ensure That The Flanging Is Uniform And Crack-Free. After Flanging, The Equipment Uses A Milling Or Cutting Device To Flatten The Flanging Hole....
_________________________________________________________________________
Model: BP-89CNC
Specification: 89mm
Drive Mode: Electric + Hydraulic
Technical: Punching Holes & Flanging ( Tube Collaring )
Business Type: Professoinal Manufacturer
Payment: T/T,L/C,D/P,Western Union,MoneyGram
Lead Time: 35 Days Dated From Deposit Received
Contact us：info@slsmachinery.com
Wechat/Whatsapp：+86 18100150701
|
| |

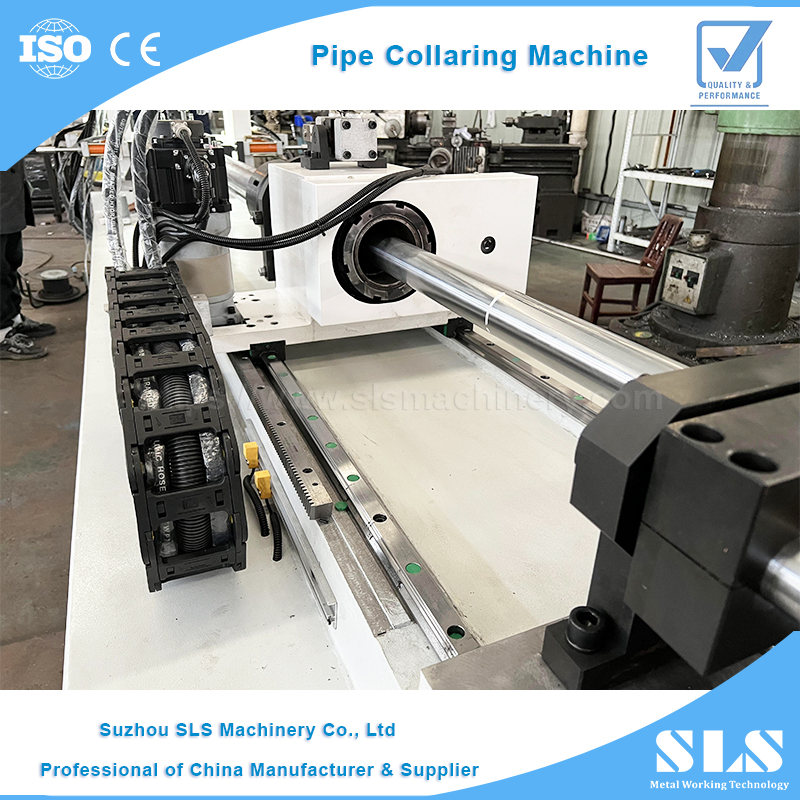

BP-89 Type CNC Pipe Collaring Machine | Metal Tube Branching, Tee Forming, Punch Holes Flanging & Drill Bit Ground Equipment
Main Technical Parameters Sheet
Brief Introduction on CNC Pipe Collaring Machine | Metal Tube Branching
Our BP-89CNC Fully Automatic Punching, Hole Drawing And Flat Cutting Machine Is A Multifunctional CNC Machine That Can Complete The Punching, Hole Drawing And Flat Cutting Of Pipe Fittings In One Go. Through The Hydraulic Or Servo Drive System, The Mold Accurately Punches The Pipe Fitting To Form An Elliptical Hole. During The Punching Process, The Strength And Precision Of The Mold Directly Affect The Quality And Consistency Of The Hole. After The Punching Is Completed, The Machine Uses The Hole Turning Bead To Flanging The Elliptical Hole To Form A Branch Hole. During The Flanging Process, The Shape And Pressure Control Of The Top Bead Are Key To Ensure That The Flanging Is Uniform And Crack-Free. After Flanging, The Equipment Uses A Milling Or Cutting Device To Flatten The Flanging Hole. The Flattening Process Ensures The Flatness And Flatness Of The Branch Hole To Meet Assembly Or Welding Requirements. The Fully Automatic Punching, Hole Pulling, And Flattening Machine Has Significantly Improved Processing Efficiency And Quality Through Integrated, Intelligent And Efficient Design, Reduced Costs And Labor Requirements, And Has Been Widely Used In Many Fields, Mainly Used For Pipeline Diversion And Manifold Processing.
Features on CNC Pipe Collaring Machine | Metal Tube Branching
The BP-89CNC Fully Automatic Punching, Hole Pulling And Flat Cutting Machine Is Specially Designed For Branch Ring Holes Of Various Pipes. It Adopts The "Extrusion System" To Form The Ring Hole By Pushing It Out From The Inside Of The Pipe, Which Is Different From The T-Drilling Technology. The Ring Hole Mouth Is Clean And Flat, And No Further Processing Is Required, Which Is Suitable For Large-Scale Production. The BP-89CNC Fully Automatic Punching, Hole Pulling And Flat Cutting Machine Is Driven By A Multi-Axis Servo Motor And Can Process Branch Ring Holes At Any Position Of The Pipe (Usually Two Rows).
● Interactive PLC Touch Screen Offers Easy Access to Auto and Manual Operating Modes.
● System Diagnostics and Multiple Language Capability.
● Feeding Axis-Driven By Servo Motor, Rotating Axis-Driven By Servo Motor
● Tube Drawing Feeding- Driven By Servo Motor, Hole Chamfering- Driven By Servo Motor
● High Automation and Efficiency Makes The Collar Hole Made In One Time.
● The Collar Hole Finished In Chipless and Clean.
● Long-Life Punching Die.
● Air Cooling System or Water Cooling System Ensures The Equipment Long-Time Work Stably Under The High Temperature.
● CE&ISO 9001:2000.
● Interactive PLC Touch Screen Offers Easy Access to Auto and Manual Operating Modes.
Main Application
