Our BP-50 Type Automatic Tube Hole Collar Drilling Machine | CNC Stainless Steel Pipe Punching Flanging Machine For Tubular Branch Forming Process - Used For Punching And Flanging Copper Tubes, Stainless Steel Tubes And Other Metal Tubes. Driven By A Servo Motor, It Can Make Branch Ring Holes At Any Position Of The Tube (Usually Two Rows). Adopting The "Extrusion System", The Ring Holes Are Formed By Pushing Out From The Tube, Which Is Different From The T-Drilling Technology. The Ring Holes Are Clean And Flat, And No Further Processing Is Required. Therefore, It Is Suitable For Large-Scale Production. For Example: Grooved Tubes Are Mainly Used In Air Conditioning Ducts And Solar Water Heater Industries. Our Products Cover HVAC Ventilation Duct Equipment, Transformer Manufacturing Related Equipment, Motor Manufacturing Equipment, Lead-Acid Battery Manufacturing Equipment, Heat Exchanger Manufacturing Equipment, Air Conditioner And Refrigerator Manufacturing Equipment, Steel Pipe Forming And Processing Equipment, Pipe Manufacturing And Processing Equipment, Steel Tank Manufacturing Equipment, Steel Wire Bending Equipment, Etc.
_________________________________________________________________________
Model: BP-50CNC
Specification: 50mm
Drive Mode: Serveo Motor + Hydraulic Oil Pump
Technical: Punching Holes & Flanging ( Tube Header Collar )
Business Type: Professoinal Manufacturer
Payment: T/T,L/C,D/P,Western Union,MoneyGram
Lead Time: 35 Days Dated From Deposit Received
Contact us：info@slsmachinery.com
Wechat/Whatsapp：+86 18100150701
|
| |

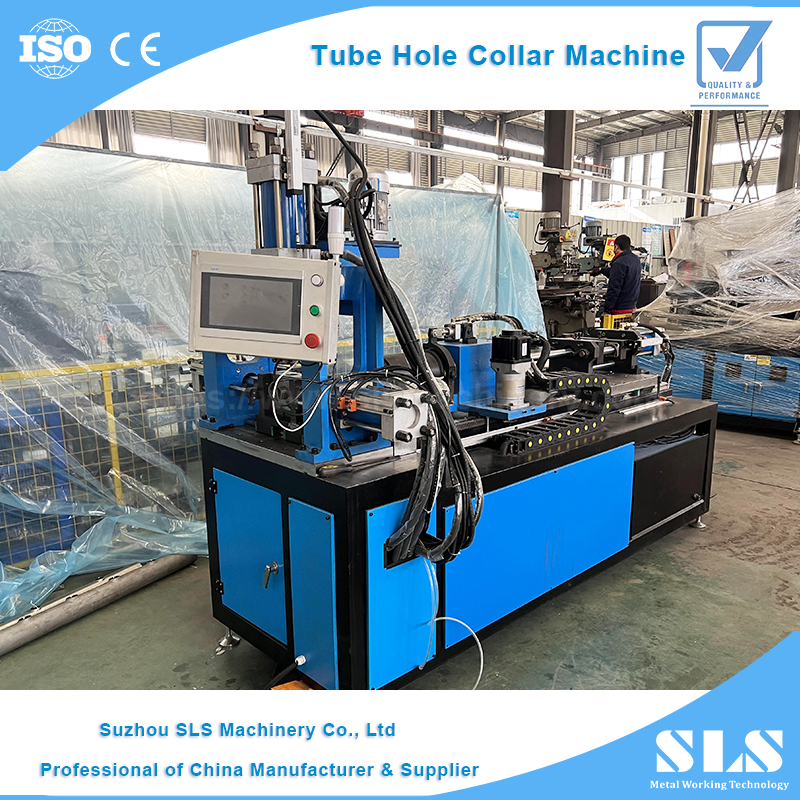

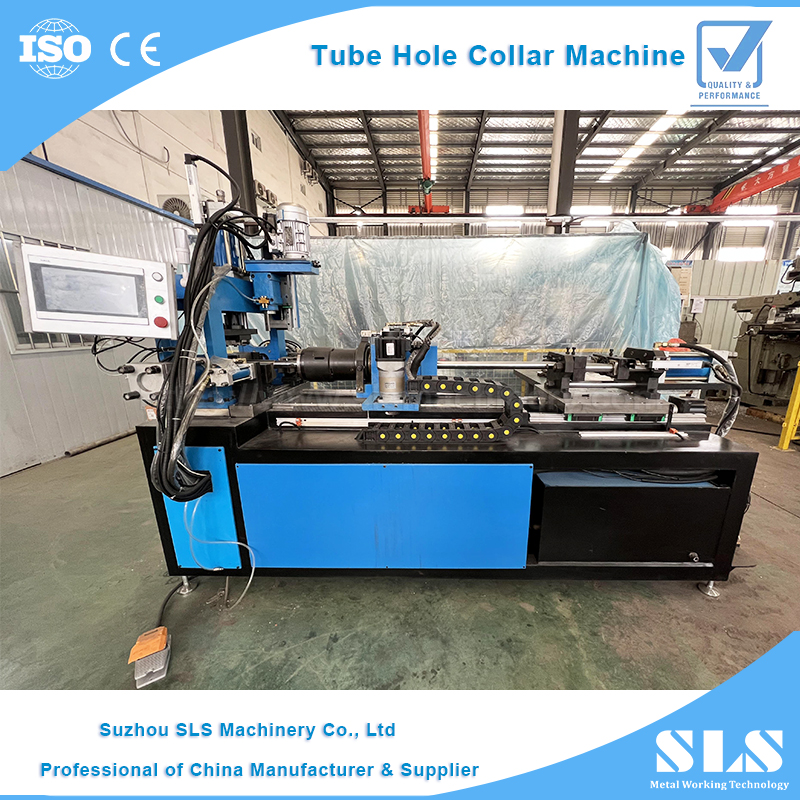

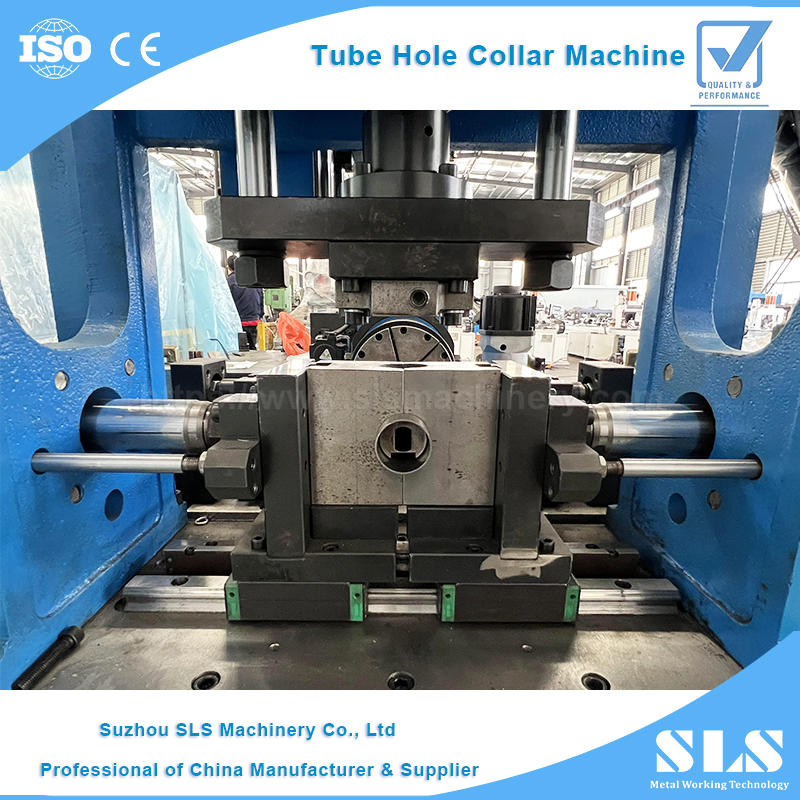

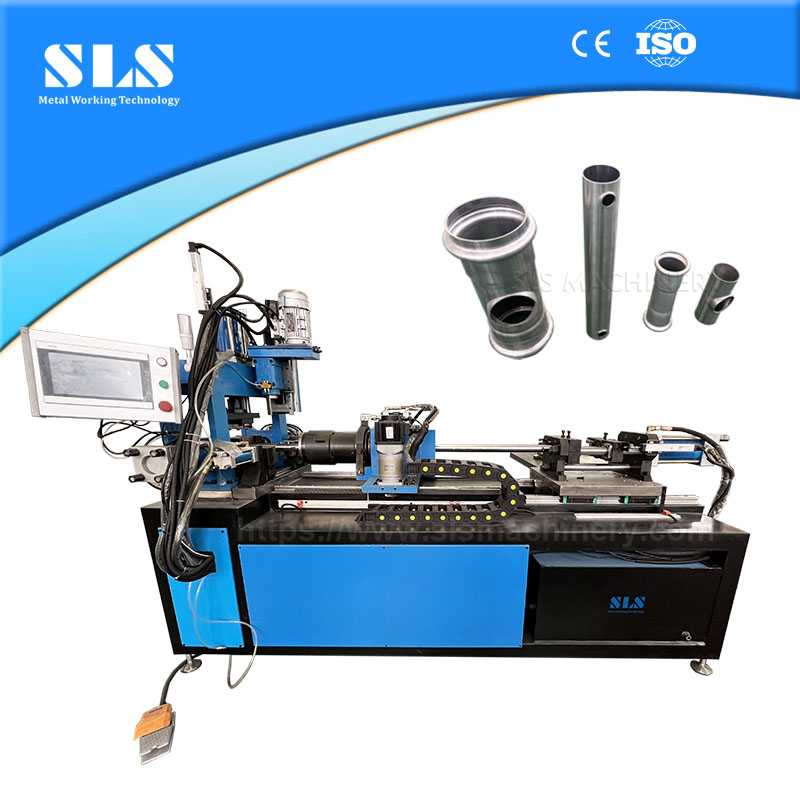

BP-50 Type Automatic Tube Hole Collar Drilling Machine | CNC Stainless Steel Pipe Punching Flanging Machine for Tubular Branch Forming Process
Main Technical Parameters Sheet
Brief Introduction on Automatic Tube Hole Punching & Collaring Machine
BP-50 Type Automatic Tube Hole Collar Drilling Machine | CNC Stainless Steel Pipe Punching Flanging Machine For Tubular Branch Forming Process - Used For Punching And Flanging Copper Tubes, Stainless Steel Tubes And Other Metal Tubes. Driven By A Servo Motor, It Can Make Branch Ring Holes At Any Position Of The Tube (Usually Two Rows). Adopting The "Extrusion System", The Ring Holes Are Formed By Pushing Out From The Tube, Which Is Different From The T-Drilling Technology. The Ring Holes Are Clean And Flat, And No Further Processing Is Required. Therefore, It Is Suitable For Large-Scale Production. For Example: Grooved Tubes Are Mainly Used In Air Conditioning Ducts And Solar Water Heater Industries. Our Products Cover HVAC Ventilation Duct Equipment, Transformer Manufacturing Related Equipment, Motor Manufacturing Equipment, Lead-Acid Battery Manufacturing Equipment, Heat Exchanger Manufacturing Equipment, Air Conditioner And Refrigerator Manufacturing Equipment, Steel Pipe Forming And Processing Equipment, Pipe Manufacturing And Processing Equipment, Steel Tank Manufacturing Equipment, Steel Wire Bending Equipment, Etc...
Features on Automatic Tube Hole Punching & Collaring Machine

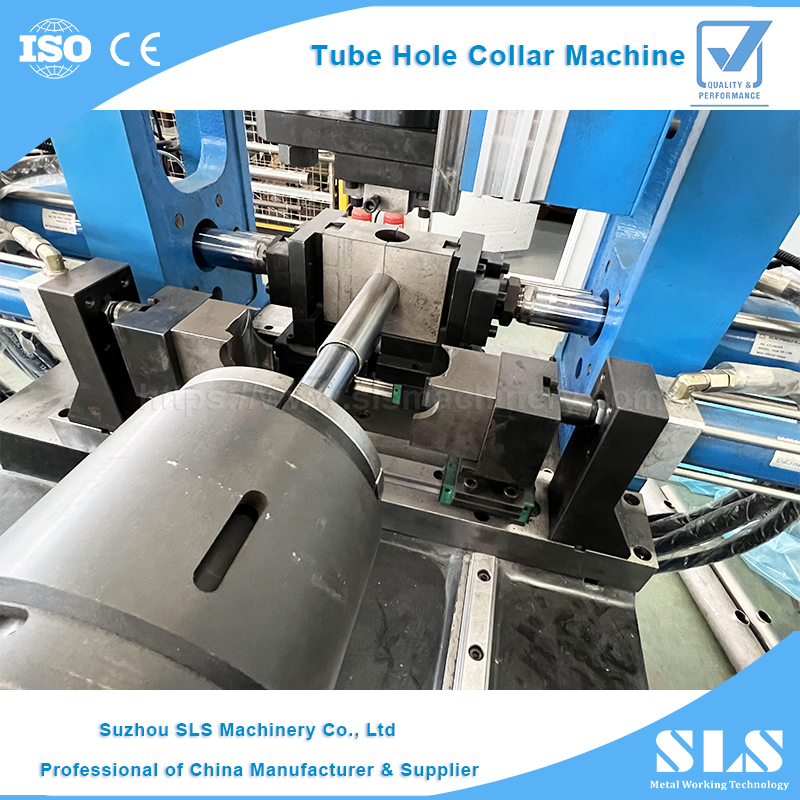

The BP-50 Type Automatic Tube Hole Collar Drilling Machine | CNC Stainless Steel Pipe Punching Flanging Machine For Tubular Branch Forming Process - Principle: Through The Hydraulic Or Servo Drive System, The Die Accurately Punches The Pipe To Form An Elliptical Hole. During The Punching Process, The Strength And Precision Of The Die Directly Affect The Quality And Consistency Of The Hole. After The Punching Is Completed, The Equipment Uses The Hole-Turning Top Bead To Flanging The Elliptical Hole To Form A Branch Hole. During The Flanging Process, The Shape And Pressure Control Of The Top Bead Are Key To Ensure That The Flanging Is Uniform And Crack-Free. After Flanging, The Equipment Uses A Milling Or Cutting Device To Flatten The Flanging Hole. Features: Servo Feeding, Hydraulic Branch Pipe, High Precision And Good Stability. PLC+HMI, Fully Automatic Control, Only Manual Loading And Unloading. The Branch Pipe Has Good Pulling Effect And High Efficiency, And The Punching Life Exceeds 100,000 Times.
● Interactive PLC Touch Screen Offers Easy Access to Auto and Manual Operating Modes.
● System Diagnostics and Multiple Language Capability.
● Feeding Axis-Driven By Servo Motor, Rotating Axis-Driven By Servo Motor
● Tube Drawing Feeding- Driven By Servo Motor, Hole Chamfering- Driven By Servo Motor
● High Automation and Efficiency Makes The Collar Hole Made In One Time.
● The Collar Hole Finished In Chipless and Clean.
● Long-Life Punching Die.
● Air Cooling System or Water Cooling System Ensures The Equipment Long-Time Work Stably Under The High Temperature.
● CE&ISO 9001:2000.
● Interactive PLC Touch Screen Offers Easy Access to Auto and Manual Operating Modes.

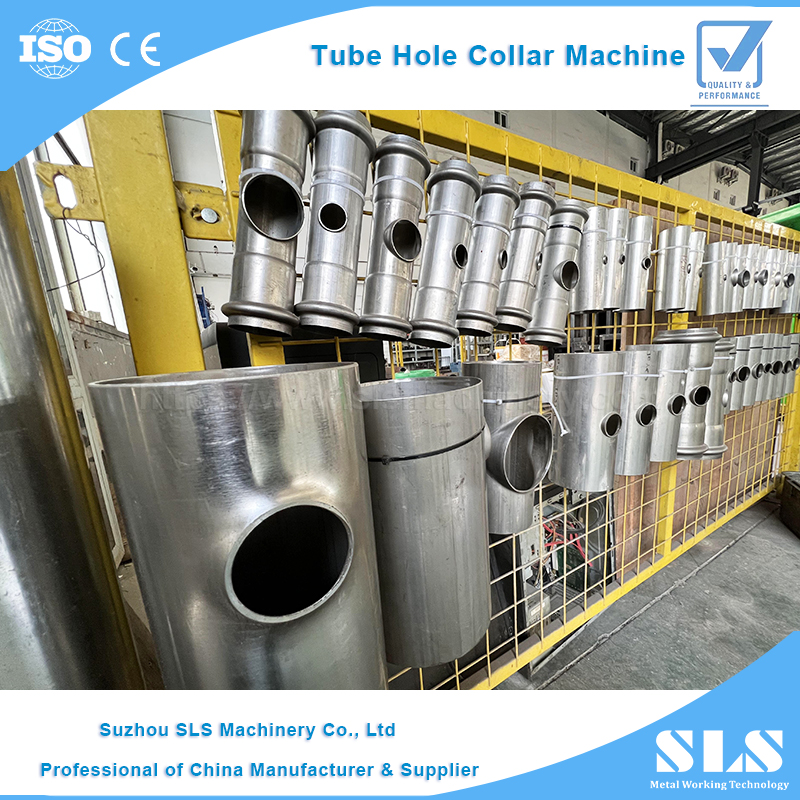

Main Application
