In the world of metal fabrication, the quality of tube and bar end finishing is directly linked to the success of subsequent welding and assembly processes. It also impacts the safety and lifespan of the final product. Whether it’s automotive exhaust pipes, aerospace hydraulic lines, or stainless steel components for medical devices, a precise, smooth, and burr-free end face is a fundamental requirement. Today, SLS Machinery will delve into the core equipment that achieves this efficiently—the CNC Chamfering Machine—and explore how single-head and double-head models cater to different production needs.
What is a Chamfering Machine and Why is It Critical?

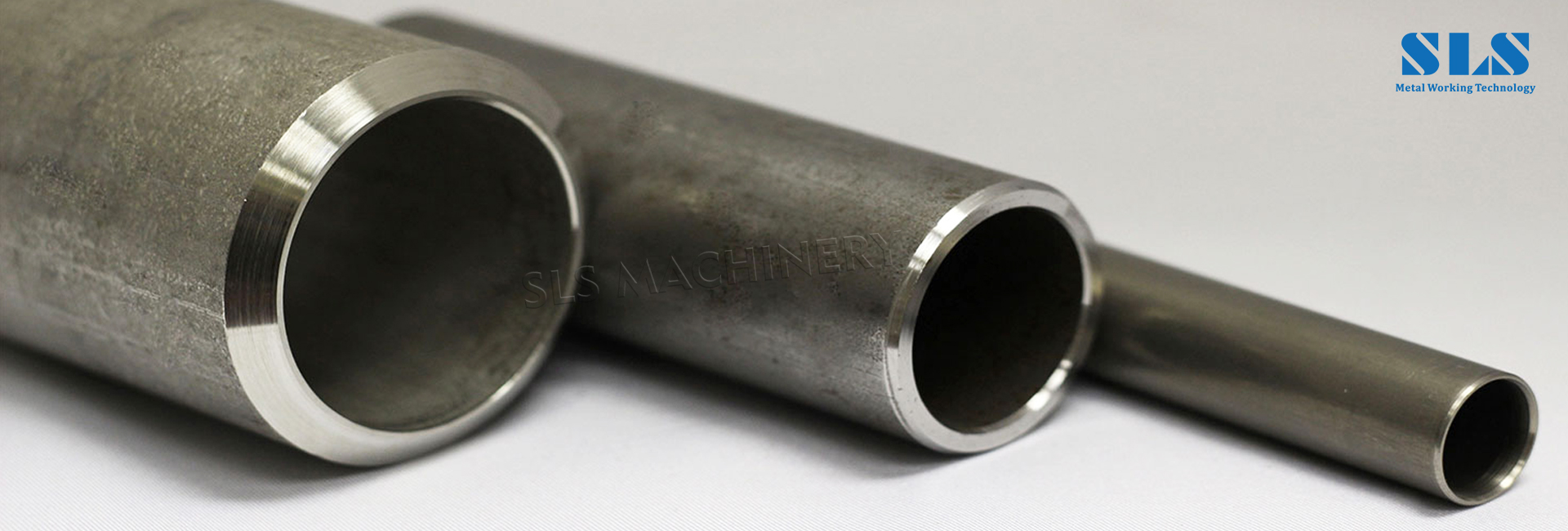

A chamfering machine, also known as a tube end finishing machine, is used to process the ends of metal tubes and solid bars. Its core functions include:
ID & OD Chamfering/Beveling: Removing sharp edges from the inner and outer diameters to create a specific angled surface.
Deburring: Eliminating burrs generated during the cutting process, ensuring a smooth finish that prevents injuries and protects downstream equipment.
End Facing: Creating a flat, square surface perpendicular to the tube’s axis, providing a precise reference for welding or assembly.
In welding applications, a high-quality bevel ensures proper penetration and minimizes defects. For operators, handling deburred tubes means a significantly safer workplace.

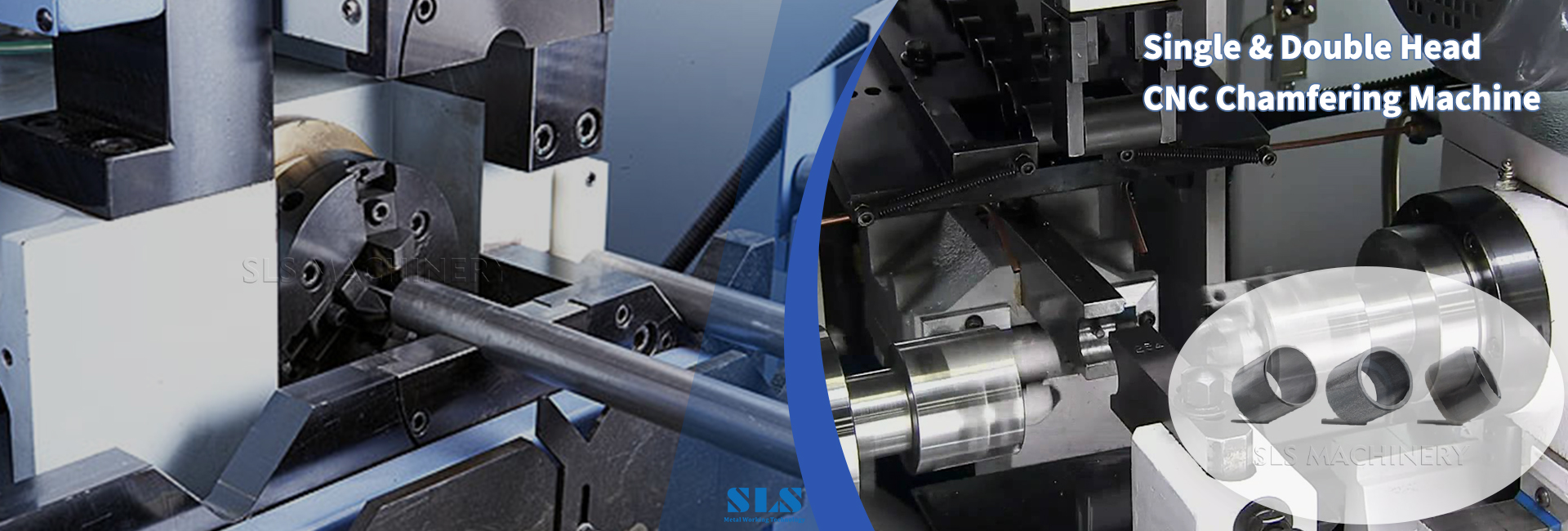

Technical Focus: Single-Head vs. Double-Head – How to Choose?
Modern chamfering technology is highly mature, primarily categorized by the number of spindles into single-head and double-head machines, each with distinct advantages.
Single-Head Automatic Chamfering Machine
This configuration features one machining spindle, processing one end of the tube at a time. Its main advantage is flexibility. It’s ideal for handling long-length tubes (e.g., 6-meter stock lengths) or parts with different finishing requirements on each end. For high-mix, low-volume production, a single-head chamfering machine allows for quick changeovers, easily adapting to various diameters and wall thicknesses. It serves as a true “flexible manufacturing cell.”
Double-Head CNC Chamfering Machine
This is the preferred solution for high-volume production. Double-head machines feature two opposing spindles that simultaneously machine both ends of a tube or bar. In industries like automotive components and refrigeration lines, this setup can double productivity. More importantly, when integrated with automatic loading and unloading systems, it can become a key part of a fully automated, “lights-out” manufacturing line. As seen in industry-leading solutions, length tolerances can be consistently maintained within ±0.005 inches, ensuring exceptional part uniformity.
Key Technologies: Servo Control & Quick Changeover
The value of a high-quality automatic chamfering machine lies in two critical technologies:
Servo Control: Utilizing servo motors for feed drives, this technology offers superior positioning accuracy and smoother speed control compared to traditional hydraulic or pneumatic systems. It enables the machining of complex and precise tapers or stepped profiles.
Quick Changeover: In mixed production, changeover time is lost efficiency. Modern CNC chamfering machines use programmable grippers and modular tooling systems to switch between product specifications in seconds or minutes, drastically reducing downtime.
SLS Machinery – Your Partner in End Finishing Excellence
As a professional provider of metalworking equipment, SLS Machinery understands your pursuit of precision, efficiency, and reliability. Our range of automatic CNC chamfering machines, covering both single and double-head configurations, offers the following advantages:

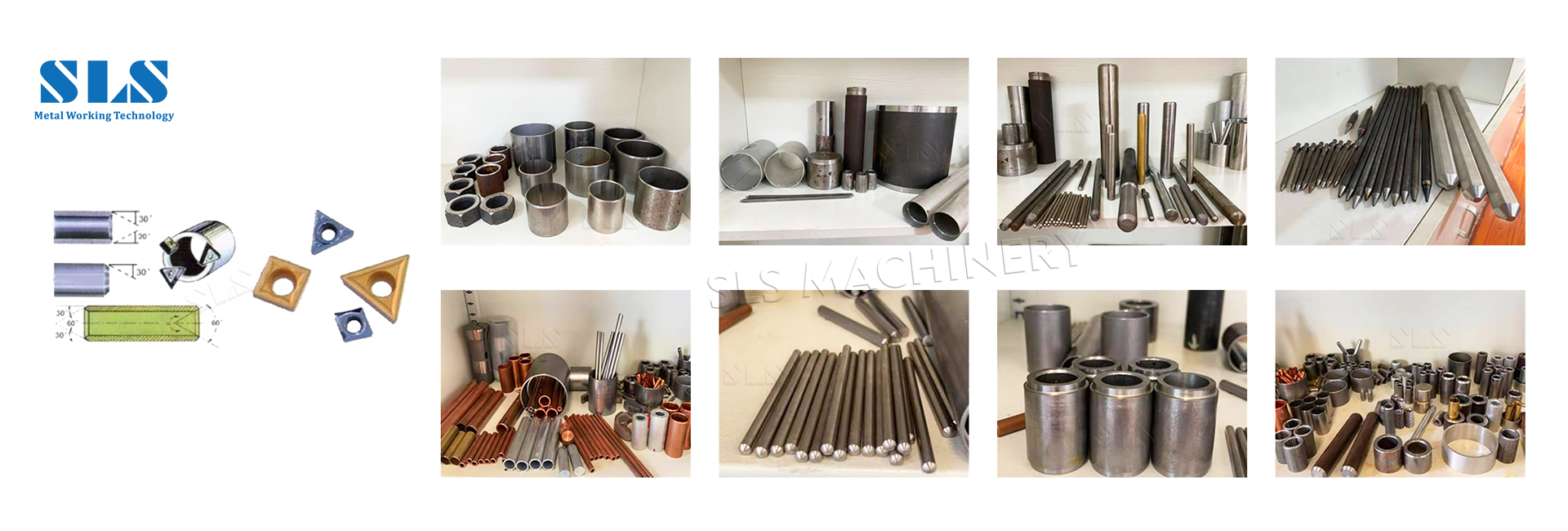

Full Material Versatility: We provide solutions for a wide array of materials, from stainless steel, carbon steel, to copper, aluminum, and titanium, processing both hollow tubes and solid bars.
Rigid Construction: Our machines are built with heavy-duty structures to maintain micron-level precision even under heavy cutting loads.
Flexible Automation Options: Tailor your equipment with optional features like automatic loading/unloading, length measurement, and more to build an efficient automated work cell that fits your budget and capacity goals.
Professional Customization: Our technical team collaborates with you to understand your part specifications, process requirements, and shop floor layout, delivering an end-finishing solution that is perfectly optimized for your unique needs.
Conclusion
Whether your goal is to improve weld quality or to enhance operational safety and efficiency, investing in the right automatic CNC chamfering machine is a strategic decision. A single-head machine offers the flexibility to handle complex production scenarios, while a double-head machine unlocks the potential for high-volume, cost-effective manufacturing. If you are seeking reliable and precise tube and bar end finishing equipment, please contact SLS Machinery. Let’s work together to build impeccable end-face quality for your metal components.
