Cutting stainless steel tube without burrs is harder than it looks. A rough edge left by cutting can spoil a finished part, slow down production, and add hours of rework. For shops that run CNC tube cutting machines, the quality of every cut matters from the very start. Among all available methods, a cold saw cutting machine stands out as the most practical choice for clean, square, burr-free tube cutting. This guide explains how cold saw cutting works, why it beats laser and plasma on edge quality, tolerance, and running cost, and how a CNC automatic tube cutting machine built around a cold saw keeps production consistent. SLS Machinery, a leading manufacturer of automatic tube cutting machines, builds CNC cold saw systems that deliver burr-free tube cutting for sanitary, structural, and general fabrication work.
Table of Contents

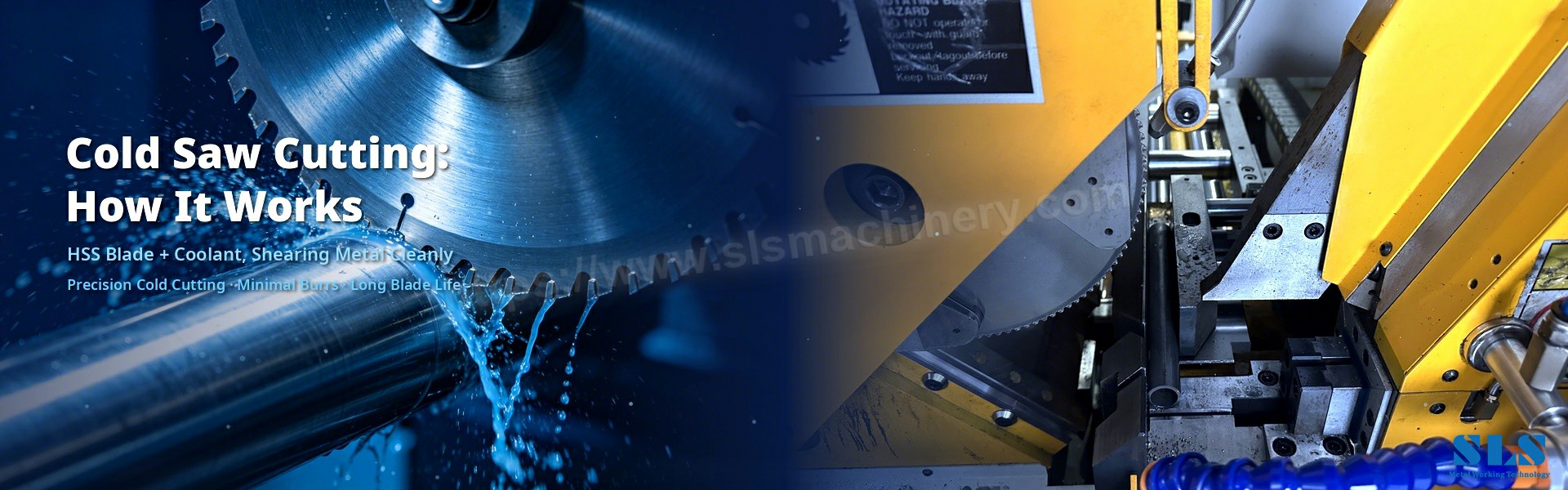

A cold saw cutting machine uses a circular cold saw blade that rotates at low speed while coolant floods the cutting zone. The blade is made with carbide-tipped saw blade teeth that shear the metal cleanly instead of tearing it. Because the blade stays cool, the material does not soften, discolor, or distort. This simple principle is what makes cold saw cutting different from heat-based methods: the cut is mechanical, precise, and leaves the metal structure untouched.

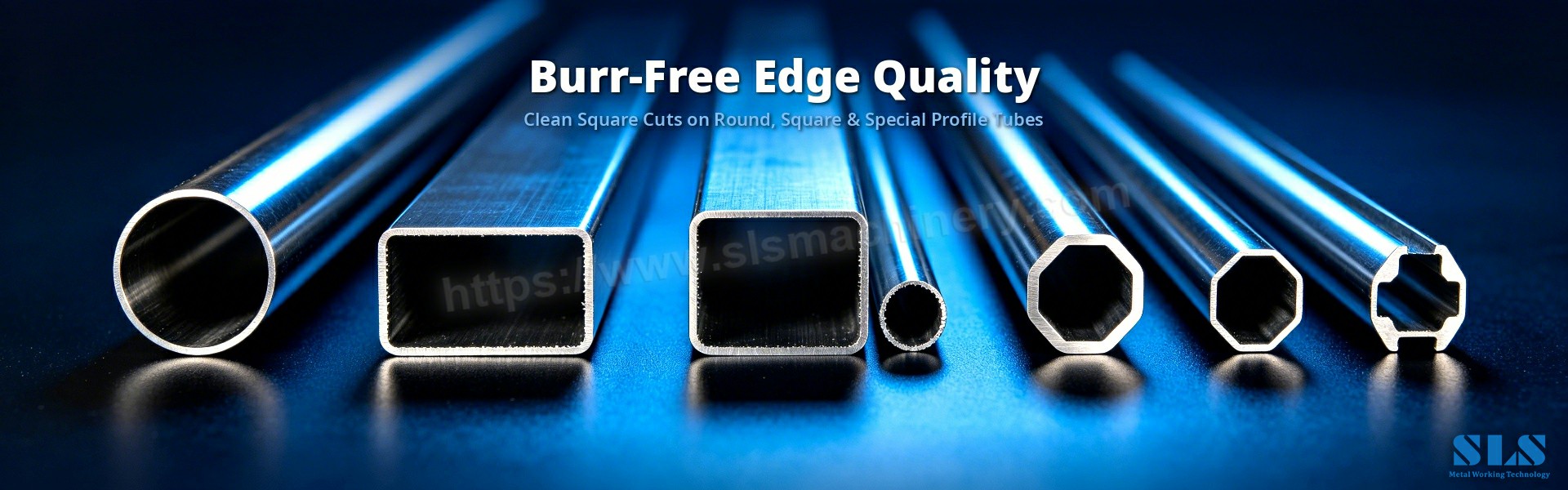

The strongest reason to pick a cold saw cutting machine is edge quality. The shearing action of the carbide teeth produces square, clean edges with very little tube cutting burrs. Most cold-sawn parts can go straight to the next process without tube deburring. Laser cutting leaves almost no burr but can leave dross on the underside, and plasma cutting leaves visible burrs that always need grinding. For stainless steel tube cutting, the cold saw edge is simply the most ready for downstream processing.
Heat is the enemy of stainless steel. Cold saw cutting generates almost no heat-affected zone (HAZ), so the corrosion resistance and mechanical properties of stainless steel pipe stay fully intact. There is no discoloration, no microstructural change, and no warping at the cut edge. Laser creates a small HAZ, and plasma creates a large one that can soften or harden the edge and reduce corrosion resistance. When material integrity matters, the cold saw is the safer choice.
Cutting tolerance decides how well parts fit together downstream. A CNC cold saw holds length and squareness within about ±0.1 mm, which is tight enough for accurate fit-up and welding. Laser is finer at ±0.05 mm, but the extra precision costs significantly more per machine. Plasma runs wider, typically ±0.2 mm or more, which can hurt accuracy on precision parts. On a CNC tube cutting machine, the cold saw combines its mechanical accuracy with servo-driven feed and automatic clamping, so every part is cut to the same stop position, part after part.
Running cost matters in daily production. A cold saw cutting machine has moderate energy use, a long blade life with carbide-tipped saw blades, and low maintenance. There is no expensive laser source or high-power plasma torch to maintain. Because the cut is clean, there is little post-cut deburring labor. For medium to high volumes, the cost per cut of a pipe cutting machine based on cold saw technology is hard to beat.

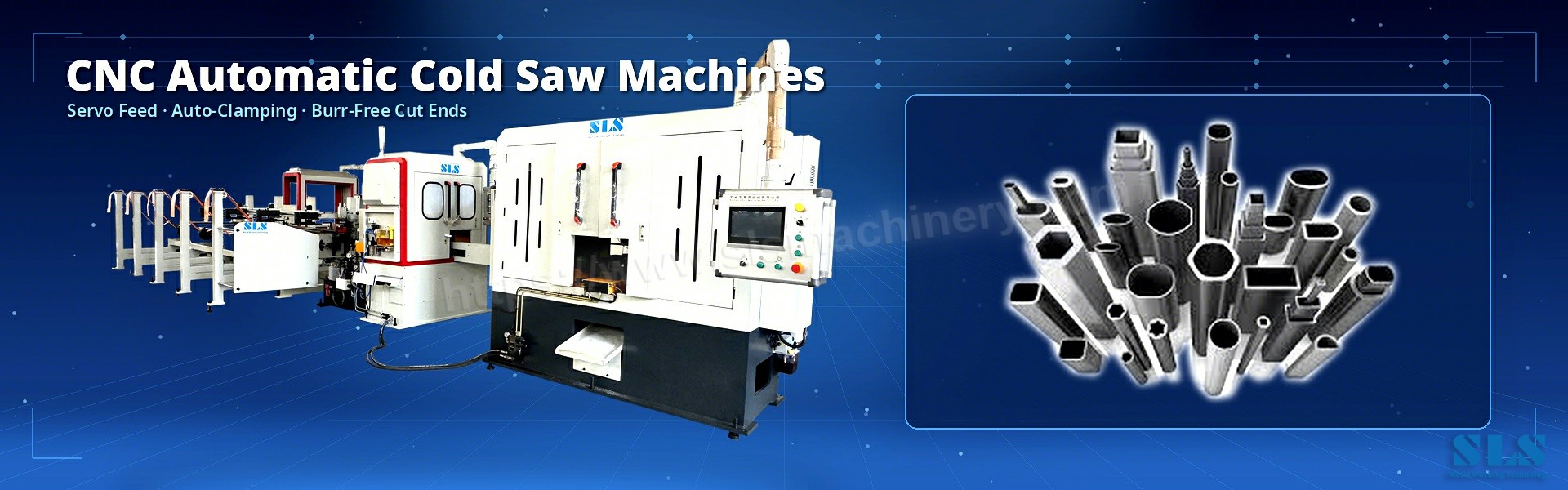

On a modern CNC tube cutting machine, the cold saw becomes part of a complete cutting cell. An automatic tube cutting machine adds servo-driven feeding, automatic clamping, and length control, so every tube is fed, held, and cut to the same stop position. Operators store programs for different diameters and wall thicknesses, set the cutting speed for the material grade, and run batches with minimal supervision. Fully automatic automatic pipe cutting machines can integrate deburring stations, sorting, and length measurement for continuous operation.
Typical applications of CNC automatic cold saw machines cover automotive exhaust lines, furniture and fitness frames, hydraulic lines, and structural tube assemblies - anywhere pipe cutting preparation needs a clean, square edge before downstream processing.
Cold saw is the focus of this guide, but it helps to know where the alternatives stand. Here is a short look at the other options.
Laser tube cutting is highly precise and leaves smooth edges with little burr, and it can cut complex profiles in one pass. The trade-offs are high equipment and maintenance cost, and a small HAZ. It suits thin-wall tube, generally up to about 1 inch, and parts with intricate shapes.
Plasma tube cutting is fast and economical on thick tube, typically up to about 2 inches, which suits structural work. It creates a larger HAZ and rougher edges with visible tube cutting burrs, so grinding or tube deburring is usually needed before welding or further processing.
Band saws and abrasive saws can cut stainless tube but tend to leave rougher edges and more burrs, and abrasive saws generate heat and discoloration. Rotary pipe cutters suit thin-wall tube but can deform the ends. These options are workable for rough cutting, yet none match the edge quality of a cold saw cutting machine.
The table below summarizes the key differences. Cold saw leads on burr level, heat input, downstream readiness, and cost per cut — the factors that matter most for stainless steel tube cutting.
Item | Cold Saw | Laser | Plasma |
Burr level | Very low | Low (slight dross) | High, needs grinding |
Heat-affected zone | Almost none | Small | Large |
Tolerance | ±0.1 mm | ±0.05 mm | ±0.2 mm or wider |
Wall thickness | Small to medium | Up to ~1 inch | Up to ~2 inches |
Cost per cut | Low to moderate | High | Moderate + finishing |
Downstream readiness | Ready after cutting | Nearly ready | Needs deburring |
Burrs create uneven pressure points in downstream operations, which can lead to cracks, splits, or poor fit-up. They also interfere with tooling contact and leave marks on the finished part. The near-burr-free edge of a cold saw cutting machine keeps every cut uniform and the structure sound.
Heat from cutting can soften or harden stainless steel near the edge and cause distortion in later processing. Cold saw cutting keeps heat low and preserves the tube's shape and properties, so cut quality stays consistent and corrosion resistance is retained. This is a key reason why pipe cutting preparation shops prefer cold saw edges.
Cold-sawn edges usually need little or no tube deburring, saving time before downstream processing. There is no slag to grind, no discoloration to clean, and no chamfering needed for most jobs. Less preparation means shorter lead times, lower labor cost, and fewer chances for handling damage.
Cold saw machines range from manual units for job-shop work to fully automatic CNC tube cutting machines for production lines. Manual machines suit occasional cuts. Semi-automatic machines add powered clamping and feed for light production. Fully automatic automatic pipe cutting machines with servo feed, auto-clamping, and length control deliver the consistency that production lines need. A CNC cold saw is the best fit when repeatability and programmability matter.
· Max and min tube diameter the machine can hold
· Wall thickness capability for stainless steel tube
· Length accuracy and squareness of the cut
· Blade size and spindle speed range
· Coolant system capacity and chip handling
· Degree of automation: manual, semi-auto, or full CNC
The blade is the heart of a cold saw cutting machine. Carbide-tipped saw blades cut stainless steel cleanly and stay sharp longer than HSS blades. Match the tooth geometry and pitch to the tube wall thickness: thinner walls need finer teeth, thick walls need coarser teeth. Keep the blade sharp and correctly tensioned, and inspect it regularly to maintain burr-free tube cutting.
· Using a dull or damaged cold saw blade - this causes burrs and heat buildup.
· Cutting at the wrong speed or skipping coolant - overheating discolors and weakens the edge.
· Ignoring clamping - loose tube moves during the cut and produces uneven edges.
· Choosing the wrong tooth pitch for the wall thickness.
· Skipping regular machine maintenance - worn guides and hydraulics degrade cut quality.
For burr-free tube cutting on stainless steel tube, the cold saw cutting machine is the most practical choice: clean square edges, almost no heat-affected zone, tight tolerance, and low cost per cut. Laser and plasma have their places, but when the next step is welding or assembly, cold saw edges are simply the most ready. SLS Machinery designs and builds CNC tube cutting machines and automatic tube cutting machines with advanced CNC cold saw technology for sanitary, structural, and general fabrication production. Our equipment helps manufacturers cut faster, finish cleaner, and reduce waste - talk to SLS Machinery to find the right automatic pipe cutting machine for your line.
Q1. Why is a cold saw cutting machine best for stainless steel tube?
A: A cold saw cutting machine cuts with low-speed carbide-tipped saw blades and coolant, producing square, burr-free tube cutting edges with almost no heat-affected zone, which is ideal for stainless steel tube cutting.
Q2. Does cold saw cutting leave burrs?
A: Very few. Cold saw cutting produces clean edges with minimal tube cutting burrs, so most parts are ready for downstream processing without tube deburring.
Q3. How does a CNC cold saw compare with laser cutting?
A: Laser is finer on tolerance but costs much more to buy and maintain. A CNC cold saw holds about ±0.1 mm, enough for accurate fit-up, with lower running cost and no HAZ.
Q4. Can a cold saw cut thick stainless steel tube?
A: Yes. Cold saw machines handle small to medium tube diameters comfortably; for very thick walls, plasma may be faster, but you trade off edge quality and tube deburring work.
Q5. What is the cutting tolerance of a CNC cold saw?
A: A CNC cold saw typically holds length and squareness within ±0.1 mm, which is tight enough for fit-up and welding.
Q6. Do I need to deburr after cold saw cutting?
A: Usually not. Cold-sawn edges have very little burr and are ready for downstream processing, saving time in pipe cutting preparation.
Q7. What machines does SLS Machinery offer for cold saw cutting?
A: SLS Machinery offers CNC tube cutting machines and automatic tube cutting machines with servo feed, auto-clamping, and length control for consistent burr-free tube cutting.
Q8. What applications suit a cold saw cutting machine?
A: Automotive exhaust lines, furniture and fitness frames, hydraulic lines, and structural tube assemblies — anywhere clean edges are needed before downstream processing.
Q9. How do I keep burrs away when using a cold saw?
A: Keep the cold saw blade sharp, use the right tooth pitch for the wall thickness, maintain coolant flow, and clamp the tube firmly.
Q10. Is a cold saw cheaper to run than laser or plasma?
A: Yes. A cold saw cutting machine has lower energy use, long carbide-tipped saw blade life, and almost no deburring labor, giving a lower cost per cut.
