The SLS Machinery 130 CNC Large Tube Bending Machine (3A‑1S heavy‑duty automatic pipe bender) adopts servo‑hydraulic rotary‑draw bending technology to process OD100mm pipes up to 6.2mm wall thickness. Featuring programmable 3‑axis control, high repeat‑positioning accuracy and one‑shot automatic forming, this industrial tube bender suits heavy‑duty metal fabrication for truck chassis, construction machinery, shipbuilding and agricultural equipment.
_________________________________________________________________________
Model: 130CNC
Specification: 100mm ( 4" Inch )x 6.5mm
Drive Mode: Electric + Hydraulic
Suit Bending: 3D Bending (Large Size)
Business Type: Professoinal Manufacturer
Payment: T/T,L/C,D/P,Western Union,MoneyGram
Lead Time: 45 Days Dated From Deposit Received
Contact us ：info@slsmachinery.com
Wechat/Whatsapp：+86 18100150701
|
| |

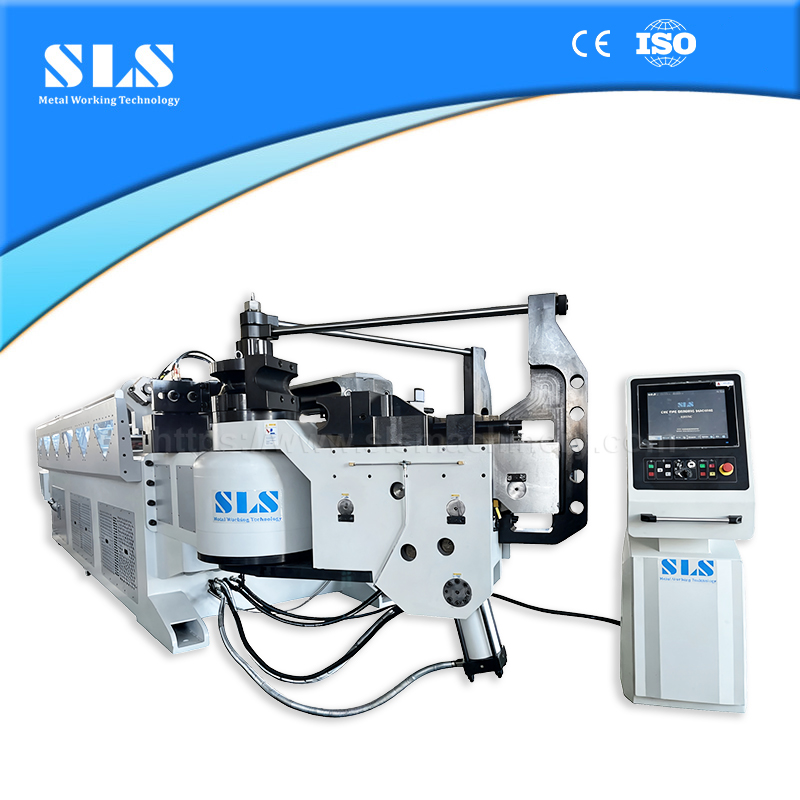

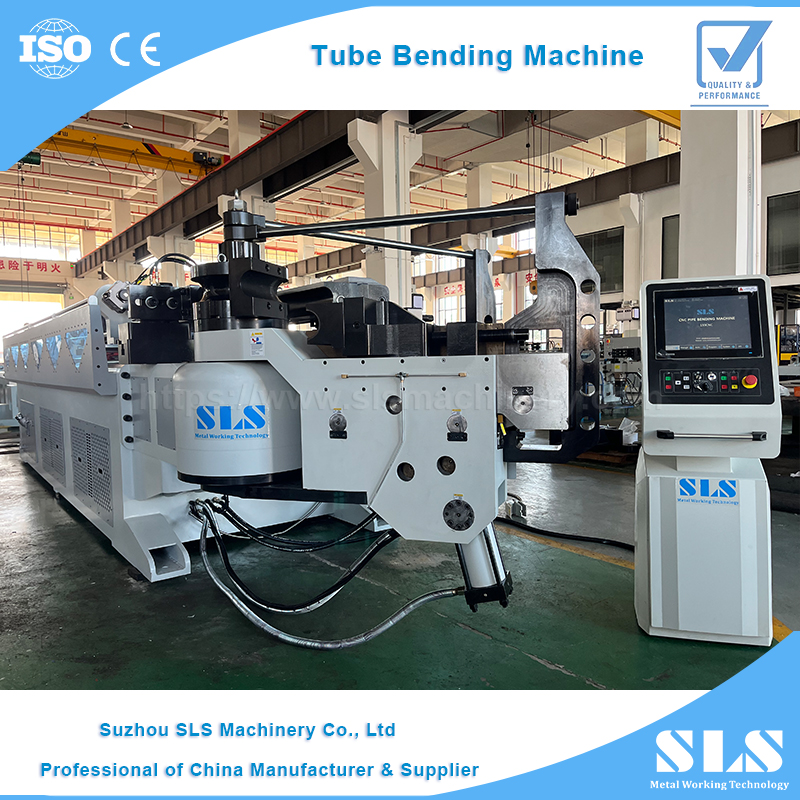

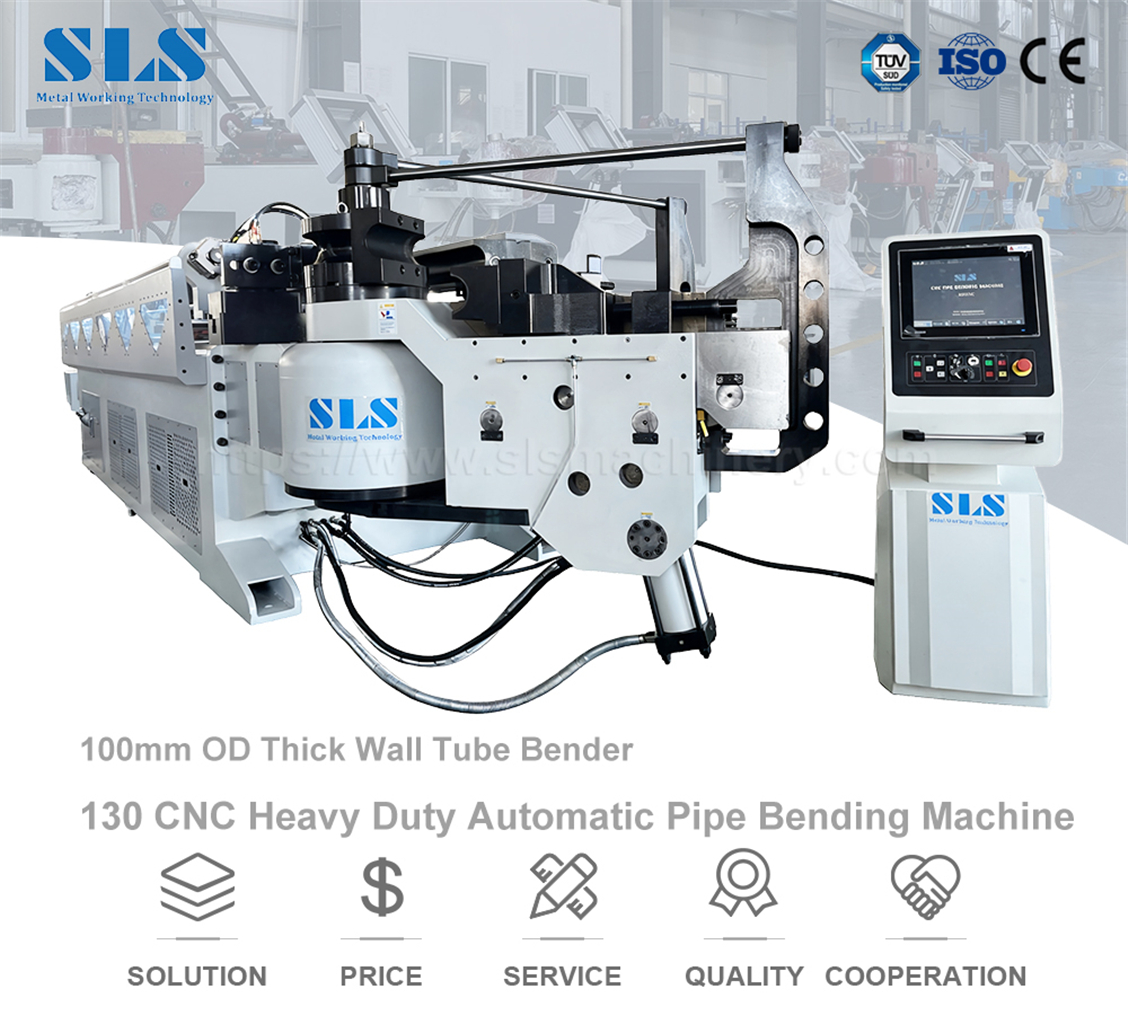

130 Type CNC Large Tube Bending Machine | 3A‑1S Heavy‑Duty Automatic Pipe Bender | Bend OD100mm, Wall 6.2mm Thick Tube
Main Technical Parameters Sheet

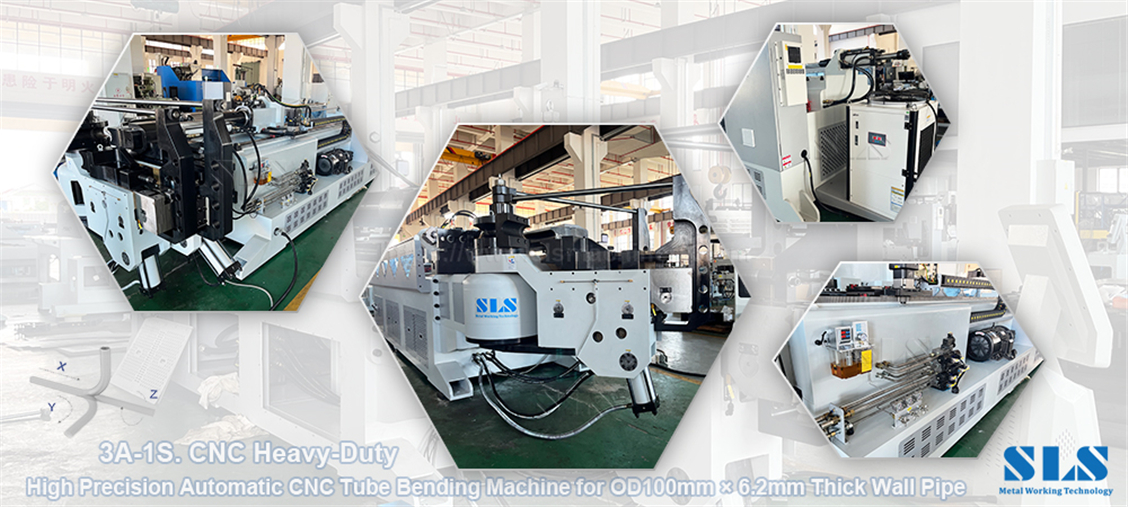

Brief Introduction on 130 CNC Large Tube Bending Machine
* Our 130 CNC Large Tube Bending Machine, model 3A‑1S, is a heavy‑duty automatic pipe bender built for thick‑wall precision pipe forming. Adopting mature servo‑hydraulic rotary‑draw bending principle, this CNC tube bending machine is capable of stable bending for OD100mm tube with a maximum wall thickness of 6.2mm.
* With 3‑axis CNC programmable control, the automatic pipe bender realizes one‑time clamping and multi‑angle continuous bending. It delivers outstanding repeatability and bending consistency for mass production. As reliable metal tube fabrication equipment, this heavy‑duty tube bender works efficiently with carbon steel, stainless steel and alloy tubes.
* This hydraulic pipe bending machine serves a wide range of industrial applications, including truck chassis, heavy‑duty vehicle frames, construction machinery, shipbuilding components, agricultural equipment and other tubular structural parts. The rotary draw bending machine supports complex 3D tube shapes and custom pipe bending requirements.
* If you are searching for a durable large‑diameter pipe bender for your metal workshop, this 130CNC pipe bender is a cost‑effective industrial pipe bending solution. Feel free to contact us for test bending samples, technical parameters and official quotation.
Features on 130 CNC Large Tube Bending Machine
● Interactive PLC Touch Screen Offers Easy Access to Auto And Manual Operating Modes.
● System Diagnostics and Multiple Language Capability.
● Standard Clockwise Bending Direction.
● Maximum 500 Sets of Program Storage,Maximum 32 Bends for Each Program.
● With Independent Programmable Speeds on Y, B(By Electrical Adjust) and C Axis(By Oil Flow Adjust).
● Bending Axis-Driven by Cylinder,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor.
● Obtain Quality Repeatable Bends In Steel, Stainless, Aluminum, Titanium and Brass.
● With Air Cooling System or Water Cooling System.
● One Set of Tooling for Draw Bending.
● Electric: As Required (3 Phase 220V or 380V or 415V...).
