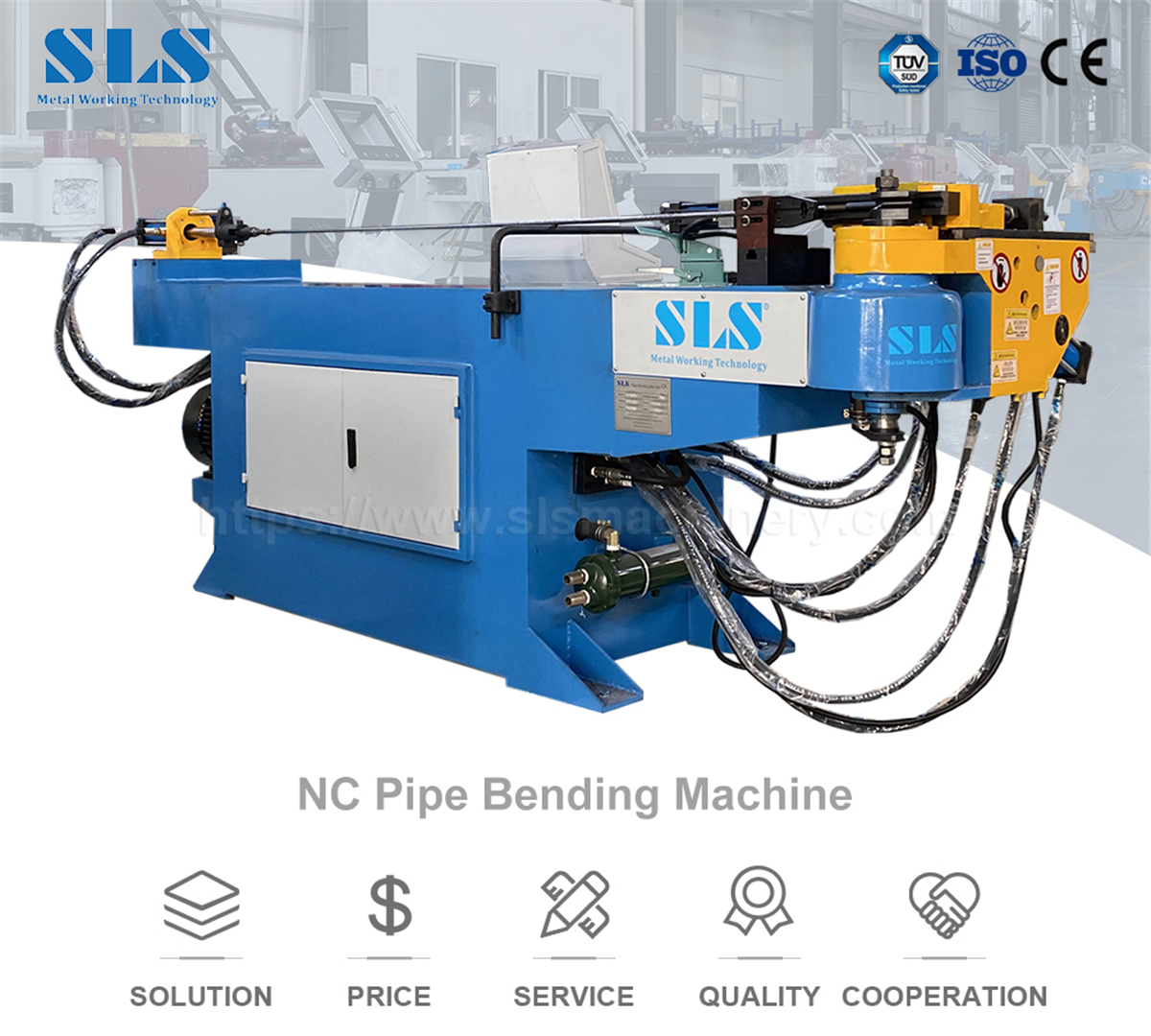

50NC Type Mechanical Tubing Bender / Manual Pipe And Tube Bender for Sale

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

50NC Type Mechanical Tubing Bender / Manual Pipe and Tube Bender for Sale, NC Pipe and Tube Bending Machines Are Our Models Which Will Help You to Reach Your Target with The Most Economical and Practical Way on Pipe and Tube Bending Works for Small to Medium Productions Environments. The Machine Adopting Solenoid Valve and Integrated Circuit to Control Separately, Which Can Be Extend The Life of The Hydraulic Parts.Our Bender Machines, Which Have Been In The Sector for Many Years, Will Be Your Durable, Long-Lasting and Reliable Equipment for Your Production.

_________________________________________________________________________

Model:50NC

Specification:50mm(2")x2mm

Drive Mode:Electric +Hydraulic

Suit Bending:2D Bend

Business Type:Professoinal Manufacturer

Payment:T/T,L/C,D/P,Western Union,MoneyGram

Lead Time:35Days Dated From Deposit Received


Contact us:info@slsmachinery.com
Wechat/Whatsapp:+86 18100150701



Availability:

x-sb50nc.1.01


50NC Type Mechanical Tubing Bender / Manual Pipe and Tube Bender for Sale

播放机器视频_副本01



Main Technical Parameters Sheet


NC 技术参数 01


Brief Introduction on Mechanical Tubing Bender / Manual Pipe and Tube Bender


SLS 50NC Type Mechanical Tubing Bender / Manual Pipe and Tube Bender for Sale, Semi-Automatic Tube Bending Machine Has an NC Control Unit to Allow The Operator to Program The Bend Degree (C Axis)-The Standard Memory Can Store Up to 16 Programs Each With 16 Sequential Bends. This Allows The Operator to Select From The Memory to Bend Sequence They Require and Load The Tube and Start Bending. The Rotating and Feeding (B&Y Axis) Are Controlled Manually, That Means Semi-Automatic Tube Bender Will NOT Reposition The Tube Between Bends. Other Movements As Die Working, Mandrel Working Are Controlled By Hydraulic. NC Pipe Bending Machine Combines Easy-to-Use Operation with High Bending Accuracy and Cost Effectiveness. It Is The Practical Semi-Automatic Solution for Small to Medium Productions. If You Want to Automatically Produce a Tube with Numerous Bends with Limited Operator Involvement Between Each Bend, You May Need a CNC Tube Bender.


x-sb50nc.1.02


Features on Mechanical Tubing Bender / Manual Pipe and Tube Bender


●  Human Interface/PLC Controlling System Offers Easy Access to Auto and Manual Operating Modes.

●  Standard Clockwise Bending Direction.

●  Maximum 16 Sets Of Program Storage, Maximum 16 Bends for Each Program.

●  Encoder Installation Ensures The Accuracy and Stability of Bending.

●  Mounted as Adjustable Speed Valve on Pressure Die Ensures The Synchronization of Bending.

●  Machine Equipped with Mandrel Or Non Mandrel Bending.

●  Bending Axis-Driven By Hydraulic, Feeding Axis-Manual, Rotating Axis-Manual.

●  Available Bending Material In Steel, Stainless, Aluminum, Brass, Alloy ...

●  Available Pipe Shape: Round, Square, Rectangle, Oval, Bar, Profile...

●  Water Cooling System.

●  Electric: As Required (3 Phase 220V Or 380V Or 415V...)
