Our 25 Type 5A-3S Multi-layers 1/2" 3/4" 1" Inch Thin Wall Pipe Bender Small Diameter Cnc Push Tube Bending Machine Create Value for Our Customers In Applications of Automotive Parts, Marine/Shipbuilding, Furniture Industry, Boiler Industry, Out-door Products, Vehicle Industry, And Many More By Providing Solutions which Maximize The Quality and Production Efficiency.
_________________________________________________________________________
Model: 25CNC
Specification: 25mm(1")x1.5mm
Drive Mode: Electric + Hydraulic
Suit Bending: 3D Bend (Multi Radius)
Business Type: Professoinal Manufacturer
Payment: T/T,L/C,D/P,Western Union,MoneyGram
Lead Time: 35 Days Dated From Deposit Received
Contact us ：info@slsmachinery.com
Wechat/Whatsapp：+86 18100150701
|
| |

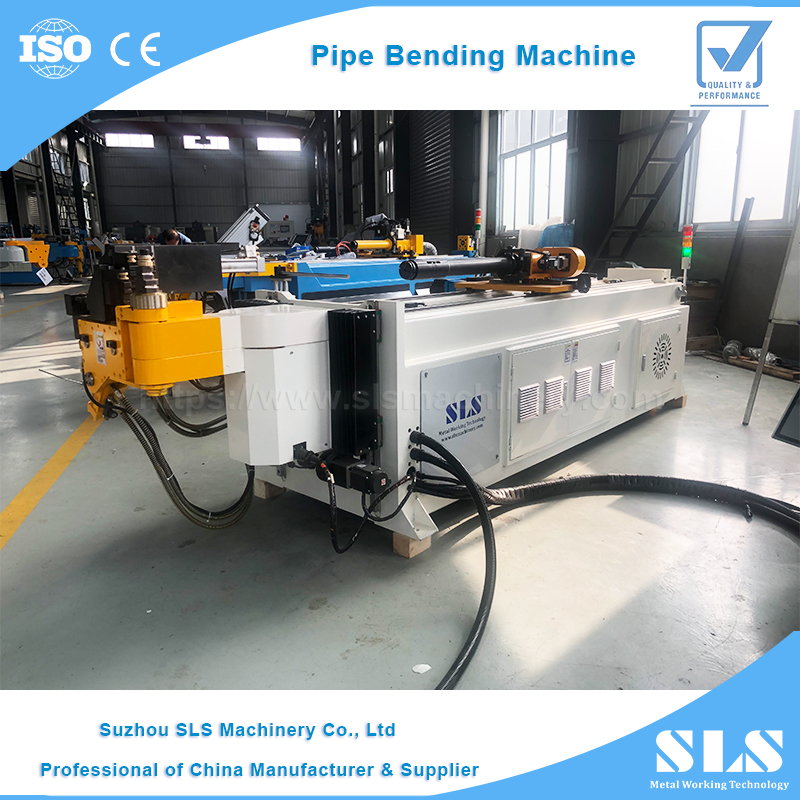

25 Type 5A-3S Multi-layers 1/2" 3/4" 1" Inch Thin Wall Pipe Bender Small Diameter Cnc Push Tube Bending Machine
Main Technical Parameters Sheet
Brief Introduction on Multi-layers Cnc Tube Bending Machine
SLS 25 Type 5A-3S Multi-layers 1/2" 3/4" 1" Inch Thin Wall Pipe Bender Small Diameter Cnc Push Tube Bending Machine Equipped with PLC or IPC Controlling System Focus on Solving Different Radius of Same Pipe Bending Situation. When a Very Big Radius Bending Is Required, Roll Bending Also Named Push Bending Can Easily Achieve This Requirement Compared to Rotary Draw Bending. A style of Bending Where The Bend Arm Is Moved Positive a Few Degrees, Then The Tube Is Pushed Through a Set of Rollers to Create The Bend. When Small Radius Bending Is Required or Wall Thinning Is Critical, Booster Function Has The Most Efficient and Innovative Solution for Producing Extra-tight Radius Bends with Minimal Deformation. When We Use The Booster Device, In Conjunction with a Tube Push Bending Machine, We Enable Precision Parts Replication with Minimal Process Times as Well as Remove The Possibility of Human Error.
Features on Multi-layers Cnc Tube Bending Machine
● PLC/IPC controlling system offers easy access to auto and manual operating modes.
● Interactive touch screen allows operator easy and quick manage machine.
● Driven Controlling: Hybrid Controlling(Electrical+Hydraulic).
● Controlling Axis: Bending,Feeding,Rotating,Head Shifting(Up Down),Head Shifting(Left Right).
● Machine equipped with multi stacks tool.
● Machine can be made as multi stacks full draw bending or draw bending+rolling.
● Machine can be made as multi stacks full draw bending or draw bending+booster.
● Draw bending,rolling or booster can be manufactured based on bending requirement.
● System diagnostics and multiple language capability.
● Standard clockwise bending direction.
● Anticipated mandrel backward to guarantee bending quality.
● Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
● Different shapes of pipe bending is available as round,square,rectangle,profile...with corresponding tool set.
● Foot pedal/touch screen control on machine start and stop to make machine working more flexibility.
● With Air Cooling System or water cooling system.
Main Application
Packaging & Shipping
Contact Us
