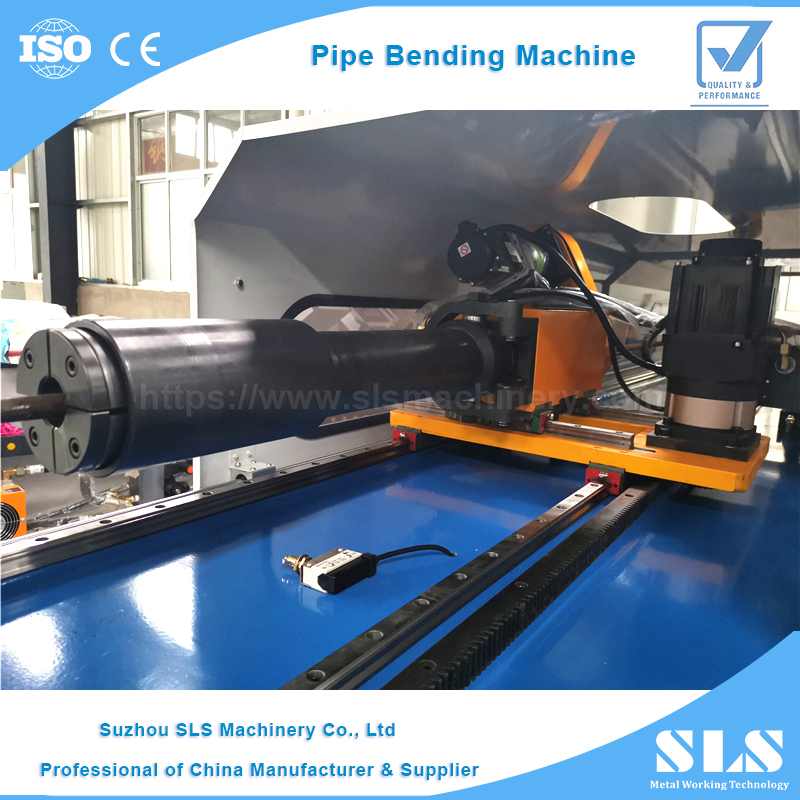

63 Type 3A-1S Electric CNC Metal Round Tube Bender OD 2.5" Inch 63mm SS Stainless Steel Pipe Bending Machine

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Our 63 Type 3A-1S Electric CNC Metal Round Tube Bender OD 2.5" Inch 63mm SS Stainless Steel Pipe Bending Machine Create Value for Our Customers In Applications of Automotive Parts, Marine/Shipbuilding, Furniture Industry, Boiler Industry, Out-door Products, Vehicle Industry, And Many More By Providing Solutions which Maximize The Quality and Production Efficiency.

_________________________________________________________________________

Model: 63CNC

Specification: 63mm(2.5")x3mm

Drive Mode: Electric + Hydraulic

Suit Bending: 3D Bend (Multi Radius)

Business Type: Professoinal Manufacturer

Payment: T/T,L/C,D/P,Western Union,MoneyGram

Lead Time:  35 Days Dated From Deposit Received


Contact us:info@slsmachinery.com
Wechat/Whatsapp:+86 18100150701



Availability:

z-sb63cnc.3a-1s.01


63 Type 3A-1S Electric CNC Metal Round Tube Bender OD 2.5" Inch 63mm SS Stainless Steel Pipe Bending Machine

播放机器视频_副本01



sls machinery -contact-us-button



Main Technical Parameters Sheet


单层 型号-参数


Brief Introduction on Electric Cnc Ms / Stainless Steel Pipe Bending Machine


SLS 63 Type 3A-1S Electric CNC Metal Round Tube Bender OD 2.5" Inch 63mm SS Stainless Steel Pipe Bending Machine Equipped with PLC Which Manage Bending (Y), Feeding (X) & Rotation (Z) In a Complete Automatic Cycle.


Bending (Y-Axis): Controlled by Servomotor.

Feeding (X-Axis): Controlled by Servomotor.

Rotating (Z-Axis): Controlled by Servomotor.


This Value Priced Steel Pipe Bending Machine Is an Excellent Choice for General Purpose and Any Type of Conventional Tube Bending Applications.CNC Tube Benders Can Make Complex Bends To a Very High Degree of Precision That NC Model or Hand Operate Simply Can’t Match. Today, Most Bending Only Needs Human Assistance, Not Constant Guidance. This Is Possible Because of CNC Bending Machines.


z-sb63cnc.3a-1s.02


Features on Electric Cnc Ms / Stainless Steel Pipe Bending Machine


●  Interactive PLC Touch Screen Offers Easy Access to Auto And Manual Operating Modes.

●  System Diagnostics and Multiple Language Capability.

●  Standard Clockwise Bending Direction.

●  Maximum 500 Sets of Program Storage,Maximum 32 Bends for Each Program.

●  With Independent Programmable Speeds on Y, B(By Electrical Adjust) and C Axis(By Oil Flow Adjust).

●  Bending Axis-Driven by Cylinder,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor.

●  Obtain Quality Repeatable Bends In Steel, Stainless, Aluminum, Titanium and Brass.

●  With Air Cooling System or Water Cooling System.

●  One Set of Tooling for Draw Bending.

●  Electric: As Required (3 Phase 220V or 380V or 415V...).


Main Application

z-sb63cnc.3a-1s.03


Packaging & Shipping

00003.01- sls
