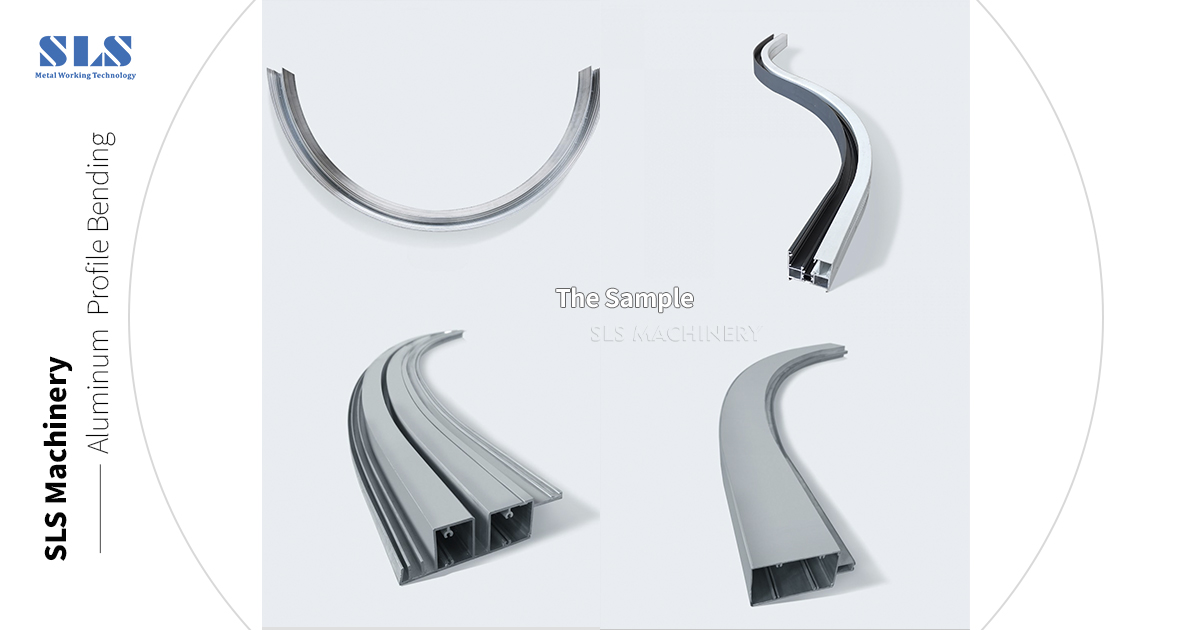

The Ultimate Guide to Aluminum Profile Bending: Precision CNC Solutions for Complex Extrusions

Introduction: Why Aluminum Bending Demands More Than Just a Machine

Aluminum extrusion bending is no longer a simple forming operation—it’s a precision engineering discipline that directly impacts product aesthetics, structural integrity, and manufacturing efficiency. From sleek LED lighting profiles to structural curtain wall components, bent aluminum is everywhere in modern design.

But achieving flawless bends on complex, thin-walled, or asymmetrical profiles requires more than equipment. It demands an integrated approach combining material science, process engineering, and advanced CNC control. At SLS Machinery, we’ve spent years mastering this discipline, delivering bending solutions with repeat positioning accuracy of ≤0.01mm.

The Three Pillars of Precision Aluminum Bending

According to our engineering team’s research and development experience, three critical factors determine bending success:

1. Curvature Accuracy: Solving the Springback Challenge

Springback—the material’s natural tendency to partially return to its original shape after bending—is the primary obstacle to curvature accuracy. Advanced CNC systems address this through digital compensation algorithms. The process is straightforward:

• Input      the actual measured radius

• The CNC      system calculates the compensation coefficient

• Production      begins with pre-calibrated parameters

Research shows that optimized springback compensation can reduce dimensional deviation by over 60% compared to traditional methods.

2. Repeatability: Consistency Across Production Runs

For mass production applications, thousands of parts must remain identical month after month. All-electric servo-driven systems achieve repeat positioning accuracy of ≤0.01mm—a level hydraulic systems cannot maintain due to temperature-induced viscosity changes.

This precision ensures:

• Interchangeable      parts batch-to-batch

• Reduced      scrap rates

• Consistent      assembly line performance

•


3. Cross-Sectional Deviation: Preventing Deformation Under Stress

When aluminum profiles bend, compression occurs on the inner radius while tension acts on the outer radius. This stress distribution can cause cross-sectional distortion, particularly problematic for asymmetric profiles like U-channel LED extrusions.

Prevention requires:

• Custom      internal support tooling designed for specific profiles

• Optimized      bending sequences

• Proper      material temper selection (T4 for tight radii, T5/T6 for structural      applications)

Material Matters: Aluminum Alloys and Heat Treatment

The bending performance of aluminum profiles depends significantly on alloy composition and temper state:

Heat Treatment States:

• T4:      Solution heat-treated and naturally aged—ideal for tight-radius bending,      post-bend aging restores strength

• T5: Cooled      from extrusion and artificially aged—suitable for larger radius      applications

• T6:      Solution treated and artificially aged—maximum strength, requires careful      bending parameters

Application-Specific Bending Solutions

LED Lighting Profile Bending

Thin-walled, asymmetric U-channel profiles present unique challenges. The torsional forces generated during bending often cause side-leg twisting toward the centerline.

Solutions:

• Use T4      temper with post-bend artificial aging

• Add      temporary connecting structures for stability

• CNC-controlled      force application to manage torsion

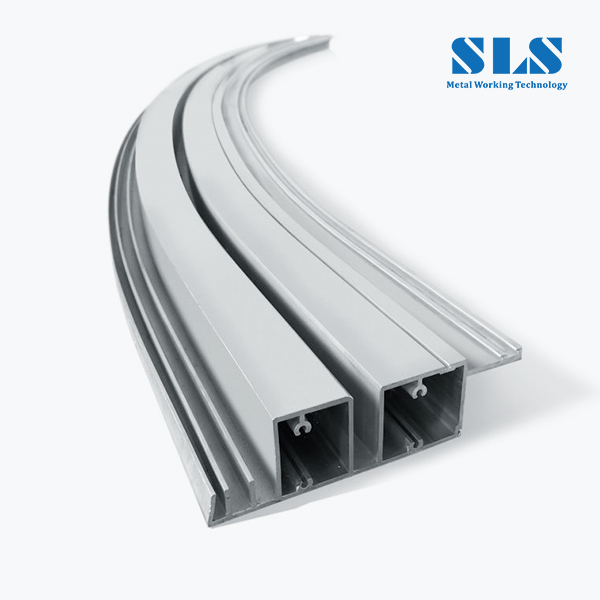

Curtain Wall and Window Frame Bending

Multi-chamber profiles with anodized or powder-coated finishes require exceptional care to prevent surface damage and cross-sectional collapse.

Recommended Method: Stretch bending with controlled tension effectively manages springback while preserving surface integrity and preventing wrinkles.

Automotive Component Bending

Complex three-dimensional curves for roof rails, bumpers, and trim demand advanced forming techniques. Stretch forming provides the smooth, wrinkle-free surfaces required for exterior applications.

The 7-Step Bending Process

1.      Incoming Material Inspection — Verify dimensions, straightness, and surface quality

2.      Milling — Prepare profile ends for complex intersections

3.      Pre-Bending Calibration — Critical phase where CNC compensation coefficients are established

4.      Trimming — Verify flatness and angles against specifications

5.      Pre-Bend Inspection — Confirm parameters before mass production

6.      Mass Production — Execute with consistent, repeatable quality

7.      Final Inspection — Verify against technical drawings

Why SLS Machinery?

• Precision      Engineering: Full servo drive with ≤0.01mm repeat positioning      accuracy

• Springback      Solutions: Two-step compensation process for rapid setup

• Free      Tool Design: Custom internal support tooling for complex profiles

• Industry      Trusted: Solutions deployed at Fuyao Glass, BYD, Chery, and      other industry leaders

Conclusion

Aluminum profile bending is a precision discipline that combines material science, process engineering, and advanced CNC control. By understanding the interplay between alloy selection, heat treatment, and bending methodology, manufacturers can achieve superior results across diverse applications.

Ready to master your aluminum bending challenges? Contact SLS Machinery for expert consultation and customized solutions.
