Ever noticed rough, jagged edges after cutting metal tubes? Burrs are more than a cosmetic annoyance — they create safety risks, complicate downstream assembly, and add costly secondary finishing work. The root causes of tube cutting burrs lie in material behavior, cutting parameters, tool condition and machine setup. This guide explains why burrs form on saw-type tube cutting machines — from manual tube cutting machine to semi-automatic tube cutting machine and fully automatic tube cutting machine — and how to control them for cleaner, safer cuts.
At SLS Machinery, our CNC tube cutting machine and circular cold saw tube cutting systems are engineered around burr-free cutting principles: rigid machine frames, precision hydraulic clamping, and matched HSS saw blade tooling. From automotive exhaust lines to steel furniture and HVAC fabrication, our machines deliver smooth, square cuts with minimal heat-affected zone and no secondary burr removal. This guide walks through burr causes, types, prevention methods and troubleshooting steps so you can get the most from your tube cutting operations.
Table of Contents
When a tube is cut, the metal at the exit point can undergo plastic deformation. Instead of separating cleanly, the material stretches or bends outward, forming burrs. This happens because the cutting force pushes the metal rather than slicing it cleanly. Tubes with thin walls or flexible structures are especially prone to this issue, as they cannot resist the cutting pressure well. The result is a raised edge or flap that sticks out from the cut surface. On a cold saw tube cutting process with a sharp HSS saw blade, the low cutting speed and milling-like tooth action minimize plastic flow, which is why cold sawing is the industry standard for burr-sensitive tube work.
Cutting generates heat. If this heat is too high or concentrated, it can soften or partially melt the metal near the cut. This softened zone loses strength, causing the material to flow or stick instead of breaking cleanly. Overheating also causes oxidation or discoloration, which weakens the edge further. When the metal cools, it solidifies with rough, uneven edges — burrs. Unlike hot friction sawing, a circular cold saw removes material through milling at low blade speed, keeping the workpiece cool and preventing the heat-affected zone that produces molten burrs. Proper heat control — through correct speed, feed and coolant use — is essential to avoid this problem.
If the cutting tool is not properly engaged or if the cutting parameters are off, burrs form easily. For example, cutting too slowly can cause excessive heat buildup, while cutting too fast may not fully sever the metal, leaving rough edges. Incorrect feed rates or depth of cut also cause the tool to drag or chatter, pushing material instead of cutting it cleanly. On CNC-controlled machines, cutting parameters optimization — matching blade speed, feed rate and clamping force to tube diameter and wall thickness — is the first line of defense against burr formation.
A dull or worn blade increases friction and cutting resistance. It cannot slice through the tube material smoothly, so it tears or deforms the edge instead. This wear also raises the cutting temperature, adding to thermal damage. Sharp blades reduce burrs by making clean cuts with less force and heat. Regular inspection of saw blade sharpness and timely replacement are critical to maintain cutting quality. Premium HSS blades with PVD or TiN coatings extend sharp life significantly in high-volume cutting.
If the tube is not firmly clamped or is unstable during cutting, it can move or vibrate. This instability causes uneven cutting pressure and tool engagement, leading to irregular edges and burrs. Thin-walled or long tubes are particularly vulnerable to flexing or shifting. Hydraulic clamping systems on automatic machines hold the tube rigidly through the entire cut, while support rollers prevent sagging on long workpieces — both are essential for burr-free tube cutting. On manual machines, the operator must apply consistent clamping force by hand, which is one reason burr control is harder to repeat.
Tip: Regularly inspect blade sharpness and maintain proper cutting speed to minimize plastic deformation and heat buildup that cause burrs after tube cutting.

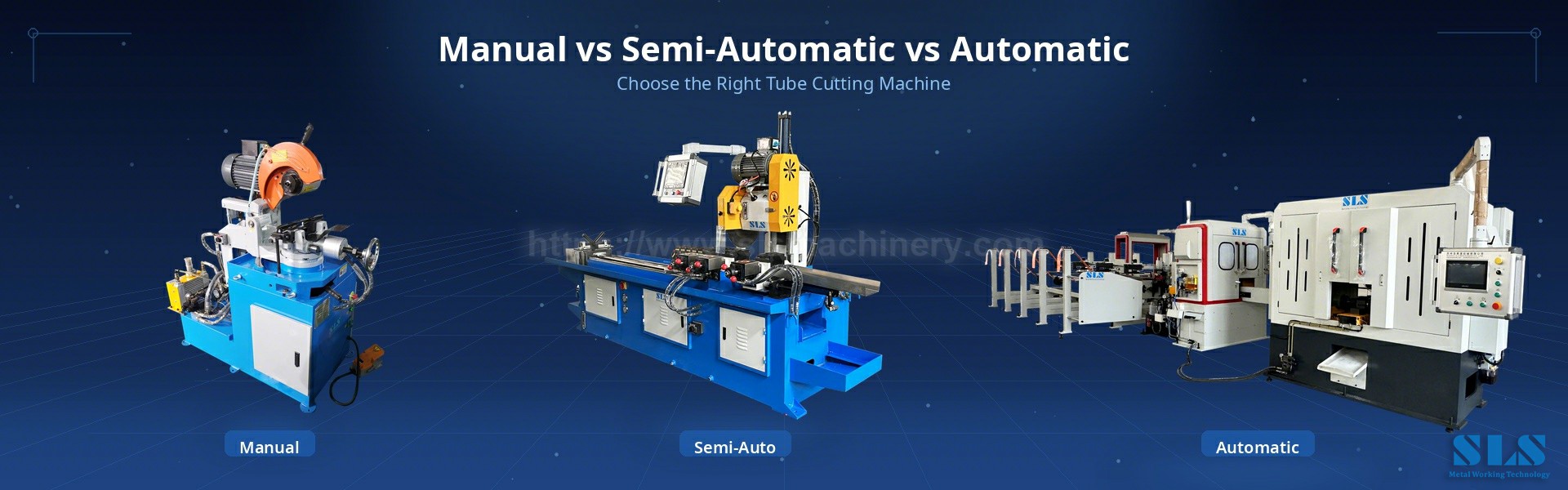

The type of tube cutting machine you choose directly affects burr control, productivity and cost. Saw-type tube cutting machines fall into three main categories — manual, semi-automatic and fully automatic. Understanding their differences helps you select the right equipment for your production needs.
A manual tube cutting machine requires the operator to feed the tube, clamp the workpiece and lower the saw blade by hand. The cutting speed, feed pressure and coolant application all depend on operator skill and consistency.
· Advantages: Lowest initial cost; simple construction and easy maintenance; maximum flexibility for small batches and frequent size changes; no programming skills required
· Disadvantages: Burr size varies with operator technique; slow production speed; higher physical labor; difficult to keep consistent clamping force, which increases the risk of tube movement and burr formation
· Best for: Small workshops, maintenance work, prototype runs and occasional cutting of mixed sizes
Because feed and clamp are hand-controlled, manual machines tend to produce more variable burr results — a skilled operator can cut cleanly, but repeatability across shifts is hard to maintain.
A semi-automatic tube cutting machine automates part of the cycle — typically the clamping, blade descent or length stop — while the operator still loads the tube and triggers the cycle. This removes the two most variable human actions: clamping force and blade feed.
· Advantages: More consistent clamping and cutting force than manual machines, reducing burr variation; higher output with one operator; hydraulic or pneumatic clamping prevents tube movement; length stops improve cut position accuracy; moderate cost
· Disadvantages: Operator still handles loading and unloading, so cycle time is limited by human speed; less flexible for complex multi-length programs than full CNC; batch changeover still takes time
· Best for: Medium-volume production of standard tube sizes, job shops that need consistent quality without full automation investment
Semi-automatic machines are the most common choice for small and medium manufacturers upgrading from manual cutting. With automatic clamping and consistent blade feed, they already deliver significantly fewer burrs than manual operation.
An automatic tube cutting machine (and its CNC variant, the CNC tube cutting machine) handles the entire cycle without operator intervention: automatic feeding from a bundle or magazine, servo-controlled length positioning, automatic clamping, blade descent, cutting and part discharge. All parameters — blade speed, feed rate, clamping pressure, coolant flow — are programmed and repeatable to the same values on every cycle.
· Advantages: Highest burr-free consistency because every parameter is program-controlled and identical on every cut; very high productivity with one operator managing multiple machines; servo feed and hydraulic clamping minimize plastic deformation; programmable length and angle changeovers in seconds; integration with automated lines for high-volume manufacturing
· Disadvantages: Highest initial investment; requires programming skills and operator training; more complex maintenance (hydraulic, servo and PLC systems); less economical for very small batches
· Best for: High-volume production such as automotive exhaust lines, steel furniture frames, HVAC components and mass tube fabrication
On automatic machines, burr-free tube cutting becomes a machine capability rather than an operator skill. Programmed parameters, synchronized clamping and controlled blade feed produce the cleanest, most repeatable cuts of the three types.
The same tube, blade and material will produce different burr results on different machine types:
· Manual: Variable burrs depending on operator technique; highest risk of tube movement and vibration during cutting
· Semi-automatic: Consistent clamping removes tube movement; burr variation mainly comes from blade condition and speed selection
· Automatic/CNC: Fully repeatable parameters; burr control is limited mainly by blade sharpness and correct parameter programming
When selecting a machine, match the automation level to your batch sizes, quality requirements and budget. Many manufacturers start with a semi-automatic machine and upgrade to automatic or CNC as volumes grow.
When working with tube cutting machine operations, you will encounter several burr types. Knowing each helps diagnose problems and choose the right fix. Here are the most common burrs you will see:
Poisson burrs form due to plastic deformation during cutting. When the tool presses on ductile metal, the material flows sideways, creating a raised edge along the cut line. These burrs usually look like thin, elongated flaps or lips sticking out from the tube edge. They often occur on softer metals or thin walls, where the material easily stretches instead of breaking cleanly.
· Appear along the cut edge
· Thin, sometimes sharp flaps
· Caused by sideways material flow
· More common in ductile metals
Roll-over burrs happen when the cutting tool exits the material and the edge curls or folds over. This is typical in milling or drilling but can also occur in tube cutting if the blade drags or the feed rate is not optimal. The burr looks like a small curled lip or flap that has rolled over the edge, often thicker and tougher than Poisson burrs.
· Curled, thick edge flaps
· Result of tool exit dragging material
· Can interfere with assembly or cause injury
Breakout burrs appear when the material tears away unevenly at the cut exit. Instead of a smooth finish, the edge looks jagged or torn. This happens when the cutting force exceeds the material strength or when the tube is not properly supported, causing it to break irregularly. These burrs are often rough and brittle, and can create stress concentrations in the finished part.
· Jagged, torn edges
· Form from uncontrolled material fracture
· Common in brittle or thick-walled tubes
· Can cause stress concentrations
Cut-off burrs happen at the final stage when the part separates from the remaining tube. The blade may leave a small ridge or rough edge as it completes the cut. This burr type is especially common in parting or cut-off machine operations. It is usually a small, raised edge but can be sharp or uneven if the blade is dull or parameters are off.
· Located at parting line
· Small ridges or rough edges
· Linked to blade sharpness and speed
· Affects final part quality
Tip: Inspect the burr type closely after cutting. Matching burr characteristics to their causes helps you adjust cutting speed, tool sharpness, or clamping to reduce them effectively.
Cutting speed plays a major role in burr formation during tube cutting. If the speed is too slow, the tool spends too much time on the material, causing excessive heat buildup. This heat softens the metal near the cut, making it prone to melting or plastic deformation, which leads to large, rough burrs. On the other hand, cutting too fast might not allow the tool to fully sever the tube wall cleanly, causing the blade to drag or tear the material and create jagged burrs.
Finding the right cutting speed is like hitting a "sweet spot." At this speed, the tool slices through smoothly without overheating or dragging. For cold saw tube cutting, recommended blade surface speeds are typically 60–120 m/min for structural steel and 30–50 m/min for austenitic stainless steel. Thin-walled tubes often require slower feed to avoid bending, but the speed must still be fast enough to prevent heat damage.
Cutting power directly influences how much heat is generated during the process. Higher power means more energy delivered to the tube, which melts or softens the metal faster. While this helps in clean cutting, too much power causes overheating and excessive melting, producing burrs that are hard, rough, or even partially fused to the tube edge.
Conversely, low power might not fully cut through the tube wall, causing the blade to push or tear the material. Properly matching power to tube thickness and material type is essential. For stainless steel tubes, which have high thermal resistance, moderate to high power with controlled heat input usually works best. On CNC machines, servo-driven feed and power control keep heat input consistent across the full cut cycle.
Tool geometry matters greatly for sawing. A blade with the right rake angle and sharp edge slices cleanly, minimizing material deformation. For stainless steel cutting, saw blades use variable tooth pitch to break continuous heat accumulation and negative rake angles (-5° to -10°) to strengthen the tooth while reducing friction. The tooth count and chip space also affect burr formation: blades with more teeth produce finer cuts but need higher speeds, while fewer teeth with larger chip gullets improve chip evacuation and reduce heat. Improper tool geometry causes the tool to drag or chatter, pushing metal sideways and creating burrs.
Feed rate controls how fast the tube moves relative to the cutting tool. Too slow feed rates increase heat input, risking thermal damage and large burrs. Too fast feed rates can cause incomplete cuts or tool skipping, resulting in rough edges and burrs.
Optimizing feed rates means balancing cutting speed and power so the tool cuts efficiently without overheating or dragging. Increasing feed rate slightly on thick tubes can reduce heat buildup, but only if power is sufficient to maintain a clean cut. For thin tubes, slower feed rates may be necessary to prevent bending but must be paired with sharp tools and proper chip evacuation. On automatic machines, the feed rate is programmed per material and diameter; on manual machines it depends on how steadily the operator lowers the blade.
Tip: Always test cutting speed and feed rate combinations on sample tubes to find the balance that produces clean cuts with minimal burrs before starting full production.
Choosing the proper tools and cutting blades is crucial to reduce burrs after tube cutting. The right selection matches the tube specifications and cutting conditions, ensuring cleaner cuts and less post-processing.
Blade diameter affects cutting stability and heat generation. Smaller blades offer precision for thin or small-diameter tubes, reducing vibration and deformation. Larger blades suit thick or large tubes, providing more cutting power and durability.
The blade type must fit the tube material. For stainless steel tube cutting, HSS blades with PVD coatings or TCT saw blade (tungsten carbide-tipped) options work well — they offer sharp cutting edges and resist heat, minimizing burrs caused by melting or smearing. Using the wrong blade can dull faster or generate excess heat, leading to poor edge quality. Fine-tooth geometry and thin kerf designs reduce cutting force and improve chip evacuation.
Sharp blades slice cleanly, reducing force and heat. Dull or low-quality tools increase friction, causing metal to tear or deform. This results in larger, rougher burrs. High-quality tools maintain sharpness longer, ensuring consistent cuts. Regular inspection of blade sharpness is essential — signs of dullness include increased cutting resistance, rough edges, or discoloration. Timely sharpening or replacement keeps burrs under control.
The bonding material and coating hold cutting grains on the blade and directly affect burr control:
· Resin bonds offer flexibility and shock resistance, good for precision cuts on thin tubes
· Vitrified bonds provide hardness and heat resistance, ideal for thick or hard stainless steel tubes
· PVD/TiN coatings reduce friction and heat, extending blade life and keeping edges clean
· Cermet-tipped blades suit thin-walled structural and stainless tubes for superior surface finish
Worn blades lose cutting efficiency. They generate more heat and apply uneven pressure, increasing burr size. Even the best blade needs replacement after a certain number of cuts or when performance declines. Signs to replace blades include visible wear or cracks on the blade surface, increased burr formation despite parameter adjustments, and longer cutting times or higher motor load. Replacing blades promptly avoids quality issues and costly rework.
Tip: Always match blade diameter and tooth type to your tube size and material, and replace blades before they dull to keep burrs minimal and cuts clean.
Cooling fluids reduce the temperature at the cutting zone, preventing overheating that softens or melts metal edges and causes burrs. Lubricants also reduce friction between the saw blade and tube surface, lowering heat generation and helping the blade glide smoothly. Common cooling methods include water-based coolants that absorb heat quickly, oil-based lubricants that reduce friction, and mist or spray systems that combine cooling and lubrication. For stainless steel tubes, water-based coolants with corrosion inhibitors work well. On many pipe cutting machine setups, MQL (minimum quantity lubrication) delivers just enough coolant to the cut zone for clean, dry parts.
In saw-type tube cutting, cooling is delivered directly to the blade and the cutting zone. Proper coolant delivery serves three functions: it lubricates the blade teeth, removes heat from the cut, and flushes chips out of the kerf. The coolant nozzles must be positioned so the flow reaches both sides of the blade at the contact point with the tube. On automatic machines, coolant flow is controlled by the program and switches on automatically at the start of each cut; on manual machines the operator opens and closes the valve, which can lead to inconsistent cooling. A steady, adequate coolant supply keeps blade temperature low, preserves tooth sharpness and reduces burrs caused by thermal softening.
Coolant systems need regular care to stay effective:
· Check coolant level and concentration before each shift
· Clean nozzles and filters to prevent clogging that starves the cut zone
· Replace coolant on schedule — contaminated or degraded coolant loses cooling and lubrication performance
· Inspect pumps and hoses for leaks or wear
· Use the correct coolant for the tube material — for example, water-based coolant with corrosion inhibitors for stainless steel
On machines with a chip conveyor or collection tray, empty and clean them regularly so chips do not contaminate the coolant or interfere with clamping.
Tip: Regularly inspect and maintain coolant systems, and match coolant type and flow to tube material to minimize burrs and improve cut quality.
One effective way to reduce burrs after tube cutting is using multi-stage cutting. Instead of making a single cut, the process divides into rough cutting and finishing passes. The rough cut removes most material quickly but may leave burrs. The finishing pass then refines the edge, removing or minimizing burrs by applying a lighter cut. This staged approach helps because the finishing pass uses less force and heat, reducing plastic deformation and thermal damage. For example, cutting a thick stainless steel tube first at a higher speed, then performing a slower, precise finishing pass, can yield a cleaner edge with fewer burrs.
Integrating tube deburring stations into the production line significantly improves burr control. These machines use abrasive brushes, rotary tools, or CNC-controlled deburring heads to remove burrs consistently and quickly. Automation reduces manual labor, speeds up processing, and ensures repeatable quality. After cutting, parts can pass through a deburring station where burrs are smoothed without damaging the tube surface or altering dimensions — especially beneficial for high-volume manufacturing where manual deburring would be time-consuming and inconsistent.
Material properties like hardness, ductility, and thermal conductivity affect burr formation. Advanced process optimization involves monitoring these properties and adjusting cutting parameters accordingly. For example, stainless steel high toughness and work-hardening tendency require different feed rates and cutting speeds than aluminum tubes. Using material databases, operators can tailor parameters such as speed, power, and feed rate to each batch of material, minimizing burrs. Continuous monitoring also helps detect tool wear or changes in material quality, prompting timely adjustments to maintain burr-free cuts.
Standardizing cutting protocols ensures consistent burr control across production runs. Documenting optimized cutting speeds, feed rates, tool types, and cooling methods creates a reliable reference for operators. Standard protocols reduce variability caused by operator experience or machine differences. A factory cutting various tube sizes can have specific parameter sets for each diameter and material type, reducing trial and error. Regularly reviewing and updating these protocols based on feedback and new data helps maintain high-quality, burr-free results.
Tip: Implement multi-stage cutting combined with automated deburring and standardized protocols to consistently minimize burrs and improve tube cutting quality.
First, examine the burr closely to identify its type:
· Poisson burrs: Thin, sharp flaps caused by material stretching sideways during cutting
· Roll-over burrs: Thick, curled edges from the blade dragging at the cut exit
· Breakout burrs: Jagged, torn edges due to uneven material fracture
· Cut-off burrs: Small ridges at the parting line caused by blade dullness or improper speed
Knowing the burr type helps pinpoint what parameter or tool needs adjustment.
Speed and feed are the main levers to control burrs:
· If burrs are large and molten-looking, the cutting speed or feed might be too slow, causing overheating — increase speed slightly or adjust feed
· If burrs are sharp and thin, speed may be too high, not allowing full material separation — lower speed
· On automatic machines, check that the programmed feed rate matches the blade diameter and tube wall thickness
· On manual machines, train operators to lower the blade at a steady, even rate instead of forcing it through
Always test adjustments on scrap tubes before production.
Blade problems are a frequent cause of burrs in saw-type cutting:
· Inspect the blade for dull teeth, cracks, chips or missing teeth
· Check that the blade runs true — a bent or warped blade cuts unevenly and produces heavy burrs on one side
· Verify blade mounting: a loose arbor or worn flange allows vibration and runout
· Check blade alignment perpendicular to the tube axis; a tilted blade produces angled, burr-heavy cuts
· Use a blade with the correct tooth count for the tube wall thickness
Movement or vibration during cutting causes uneven edges and burrs. Use sturdy clamps to hold tubes firmly, support long or thin tubes to prevent flexing, check that clamps do not deform the tube, and avoid over-tightening which can crush thin-walled tubes. Stable workpieces allow the tool to cut cleanly without pushing or tearing material. On fully automatic machines, hydraulic clamping and servo feed synchronization provide the stability required for burr-free tube cutting. On manual machines, always verify the clamp is fully tightened before starting the cut.
Worn or damaged tools increase burr formation. Inspect blades regularly for dullness, cracks, or chips; replace blades before cutting quality drops noticeably; check machine components like coolant nozzles and clamping surfaces for damage or dirt; and maintain coolant systems to ensure consistent cutting conditions. Regular maintenance prevents unexpected burr problems and extends tool life.
Tip: Keep a troubleshooting log to track burr types, parameter changes, and results; this helps quickly identify effective solutions and maintain burr-free production.
Achieving burr-free results in tube cutting requires understanding key causes like material deformation, heat, and tool wear. Optimizing cutting speed, power, and tool sharpness greatly reduces burr formation. Regular maintenance and precise parameter tuning ensure consistent quality and efficiency. Implementing best practices, such as proper clamping and cooling, improves edge finish and productivity.
SLS Machinery manufactures a full line of tube cutting machine systems — from manual tube cutting machine and semi-automatic tube cutting machine models to automatic tube cutting machine and CNC tube cutting machine centers with high-speed flying cut-off saws — engineered for burr-free, high-precision cutting of carbon steel, stainless steel, aluminum and copper tubes. Our machines feature rigid cast-iron frames, hydraulic clamping, programmable length control and matched HSS saw blade tooling, serving automotive, HVAC, furniture, construction, shipbuilding and oil & gas industries worldwide. Contact SLS Machinery today for the tube cutting solution that keeps your edges clean and your production moving.
