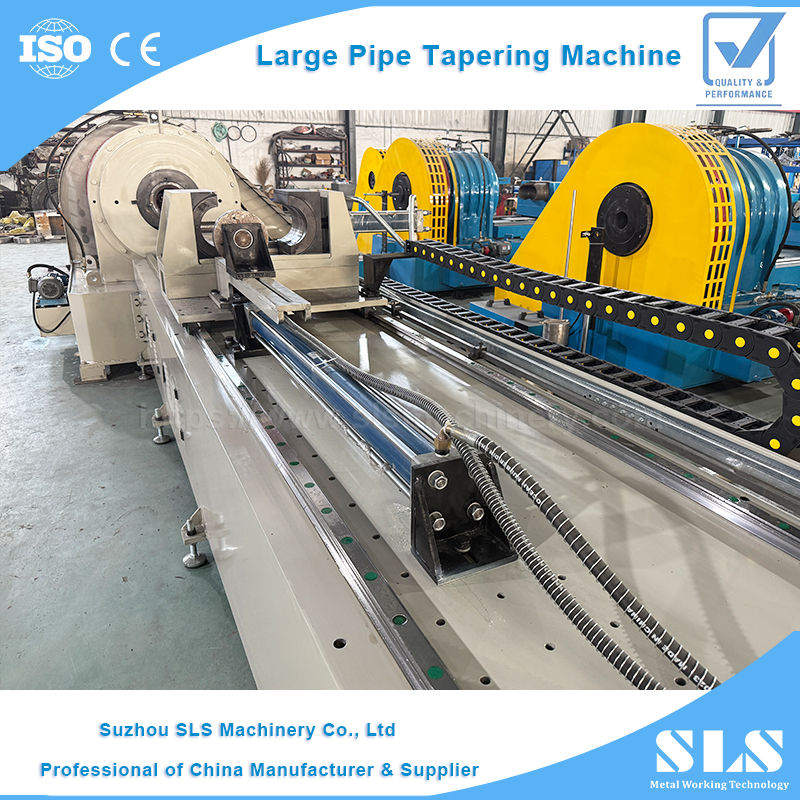

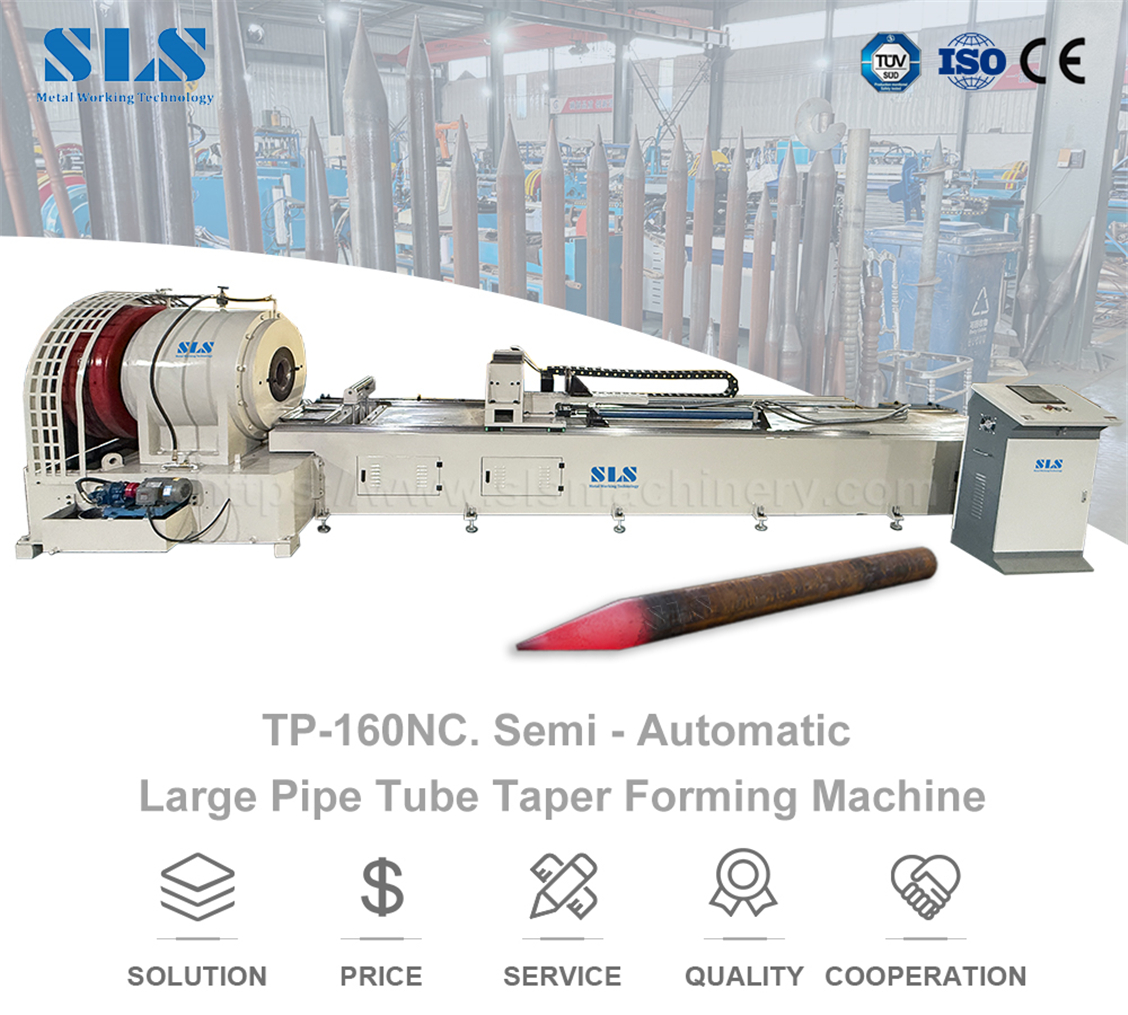

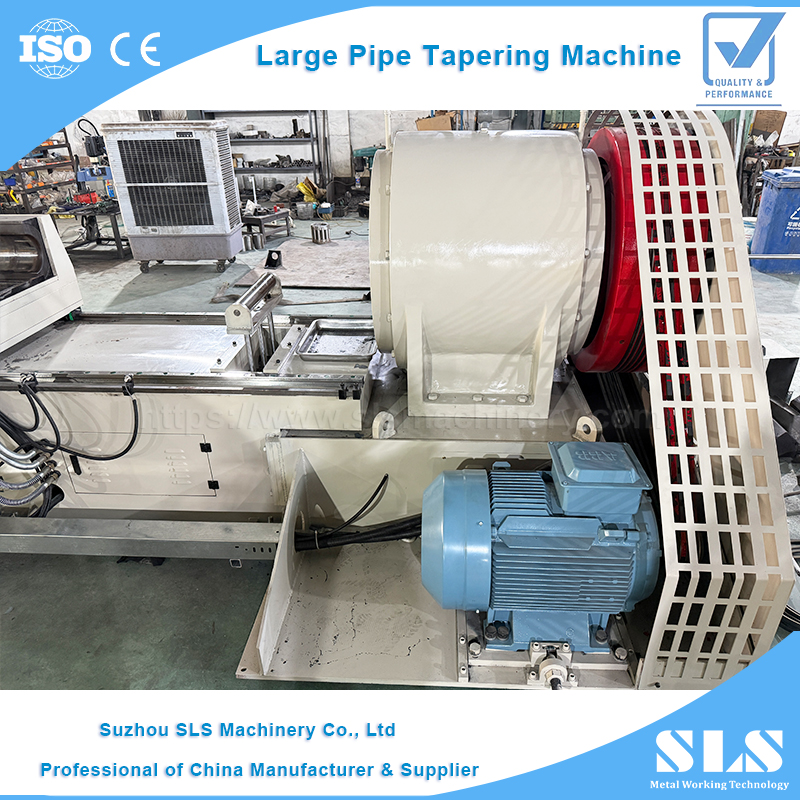

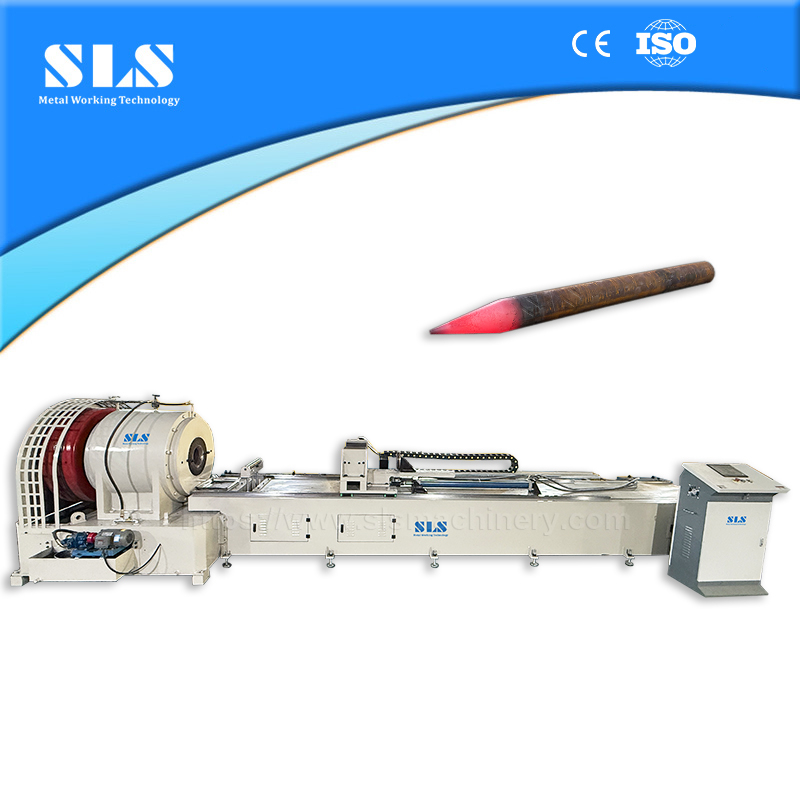

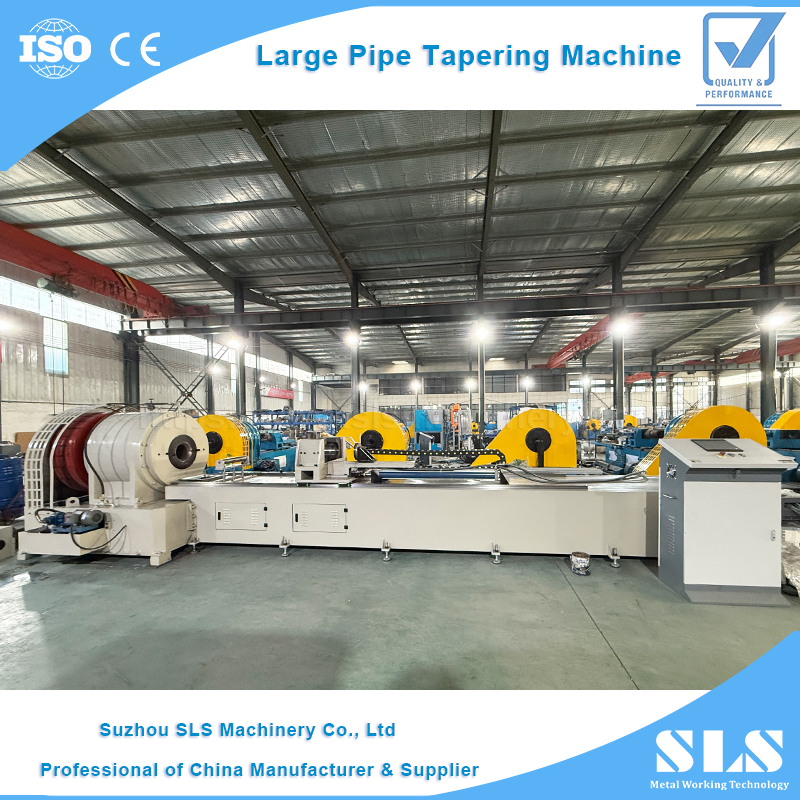

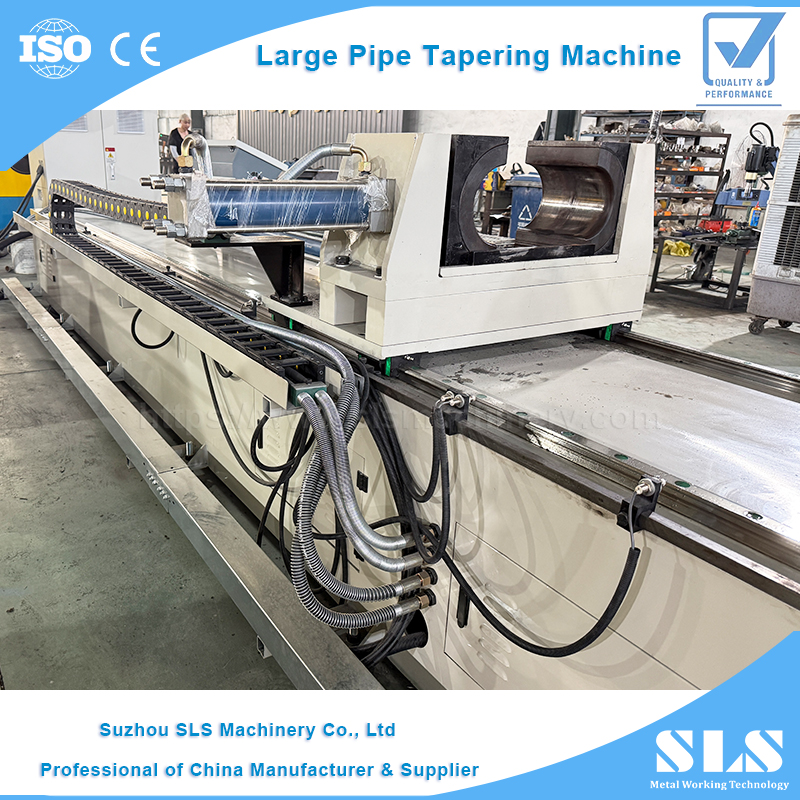

TP-160NC Huge Large Tube Taper Forming Machine | Metal Pipe End Swaging Cone Tip for Ground Screw Pile Making

TP-160NC Huge Large Tube Taper Forming Machine | Metal Pipe End Swaging Cone Tip for Ground Screw Pile Making

Main Technical Parameters Sheet

Brief Introduction on Huge Large Tube Taper Forming Machine

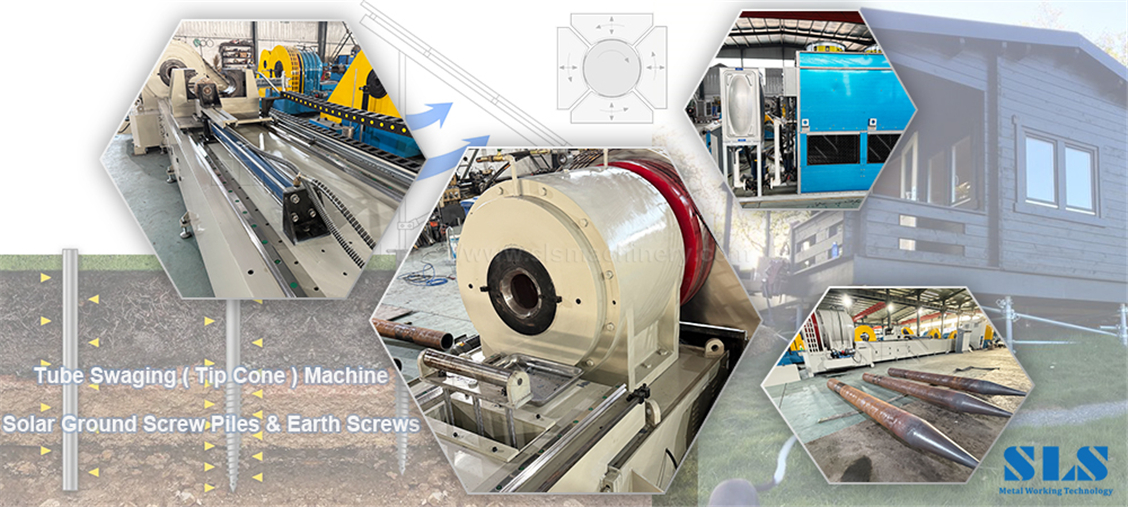

The SLS Large-Diameter Tube Taper Forming Machine is a specialized metal pipe end swaging solution engineered for ground screw pile manufacturing. Unlike conventional pipe tapering equipment, this machine is built to handle large diameters (up to 168mm) and heavy wall thicknesses (up to 6mm or more), making it the preferred choice for heavy-duty ground screw production where structural strength and durability are critical. The machine operates through a two-stage hot forging process. First, a high-frequency induction heating system raises the pipe end to the optimal forging temperature (approx. 900–1050°C) within seconds. The heated tube then enters the rotary swaging station, where four-die radial hammering mechanisms strike at high frequency to shape the softened metal into a precise conical taper. This hot forging approach significantly reduces material resistance, enabling clean forming of thick-wall pipes with minimal stress and spring-back, resulting in a smooth, uniform cone with excellent surface finish.

Features on Huge Large Tube Taper Forming Machine

*  Heavy-Duty Capacity: Processes steel pipes with outer diameters ≥160mm and wall thickness ≥5mm, meeting the demands of large-scale ground screw production.

* High Precision: Achieves forming accuracy of ±0.1mm, ensuring consistent taper dimensions across all produced piles.

* Hot Forging Technology: High-frequency heating plus rotary swaging reduces forming pressure, extends die life, and minimizes machine wear—especially advantageous for thick-wall large-diameter pipe processing.

* Cost-Effective Design: Manual loading and unloading keeps initial investment low while delivering high returns. No expensive automation systems required.

* User-Friendly Operation: Simple controls, quick-change tooling for easy adaptation to different pipe sizes and taper specifications.

* Durable Construction: Built with high-quality components under strict quality control for long service life and reliable daily operation.

Common Applications:

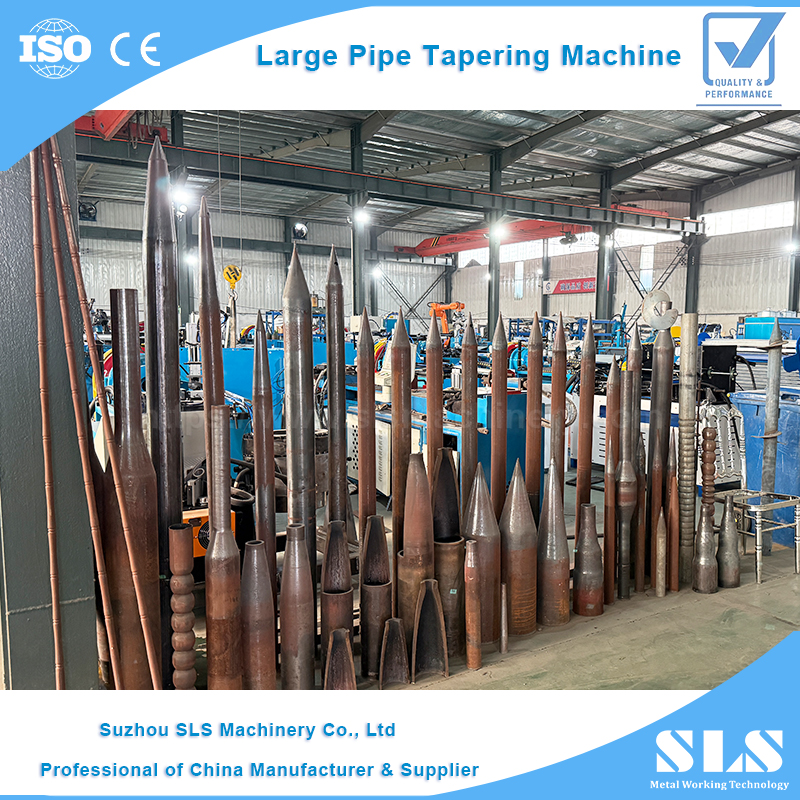

* Photovoltaic solar mounting ground screws

* Municipal fence and road barrier embedded piles

* Wooden house and landscape construction foundation screws

* Greenhouse agricultural support piles

* Custom embedded foundation pipes for infrastructure projects

Why Choose SLS?

With years of manufacturing expertise and CE/ISO certification, SLS Machinery delivers reliable, high-performance tube forming solutions at competitive prices. Whether you operate a small fabrication workshop or a large-scale ground screw production line, this machine offers the capability, durability, and value you need.
