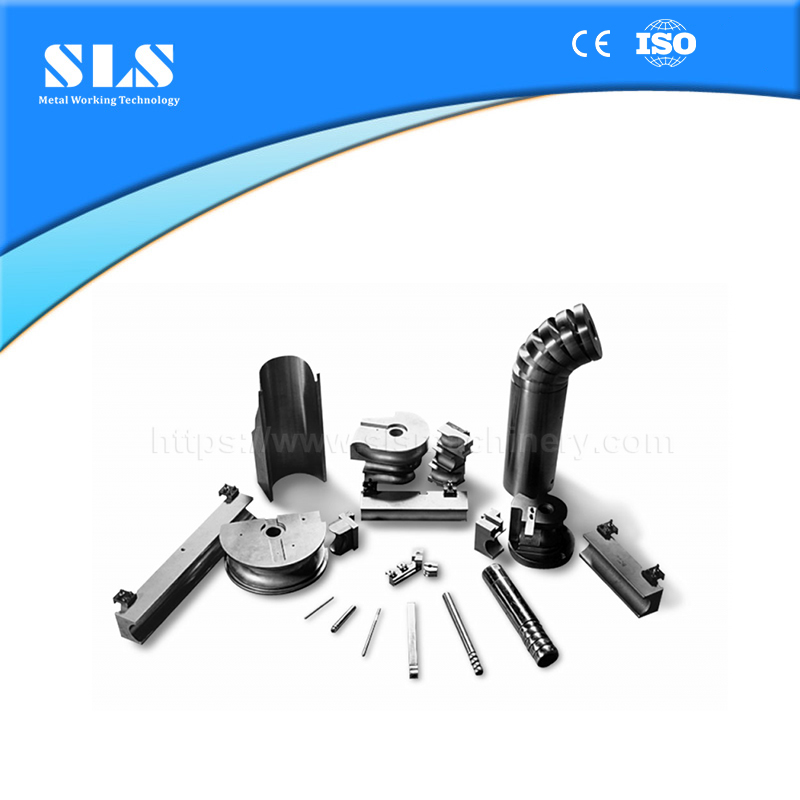

SLS Machinery offers a complete set of precision bending head tooling, designed for high-quality tube forming. The set includes five core molds: the Bending Die for forming the radius, the Clamp Die for holding the tube securely, the Pressure Die for guiding and feeding, the Mandrel for internal support to prevent collapse, and the Wiper Die for eliminating wrinkles. Working together, these tools ensure smooth, accurate bends without cracking or deformation, delivering a perfect surface finish every time.
To meet diverse processing needs, SLS Machinery also provides full customization and development services. Whether you are working with special materials like titanium alloy or high-strength steel, non-standard pipe sizes, or complex bending angles, we can design and develop tailor-made molds that perfectly match your equipment and production requirements.
_________________________________________________________________________
Name: Precision Tube Bending Dies
Mold type: Bend Die, Clamp Die, Pressure Die, Wiper Die, Mandrel, Bend Die Insert
Material: Multiple types available, choose as needed
OEM / ODM: YES
Business Type: Professoinal Manufacturer
Payment: T/T,L/C,D/P,Western Union,MoneyGram
Lead Time: 35 Days Dated From Deposit Received
Contact us：info@slsmachinery.com
Wechat/Whatsapp：+86 18100150701
|
| |
Precision Tube Bending Dies | Custom Rotary Draw Bending Tooling Including Mandrel, Wiper Die, Clamp Die | CNC Bender Parts

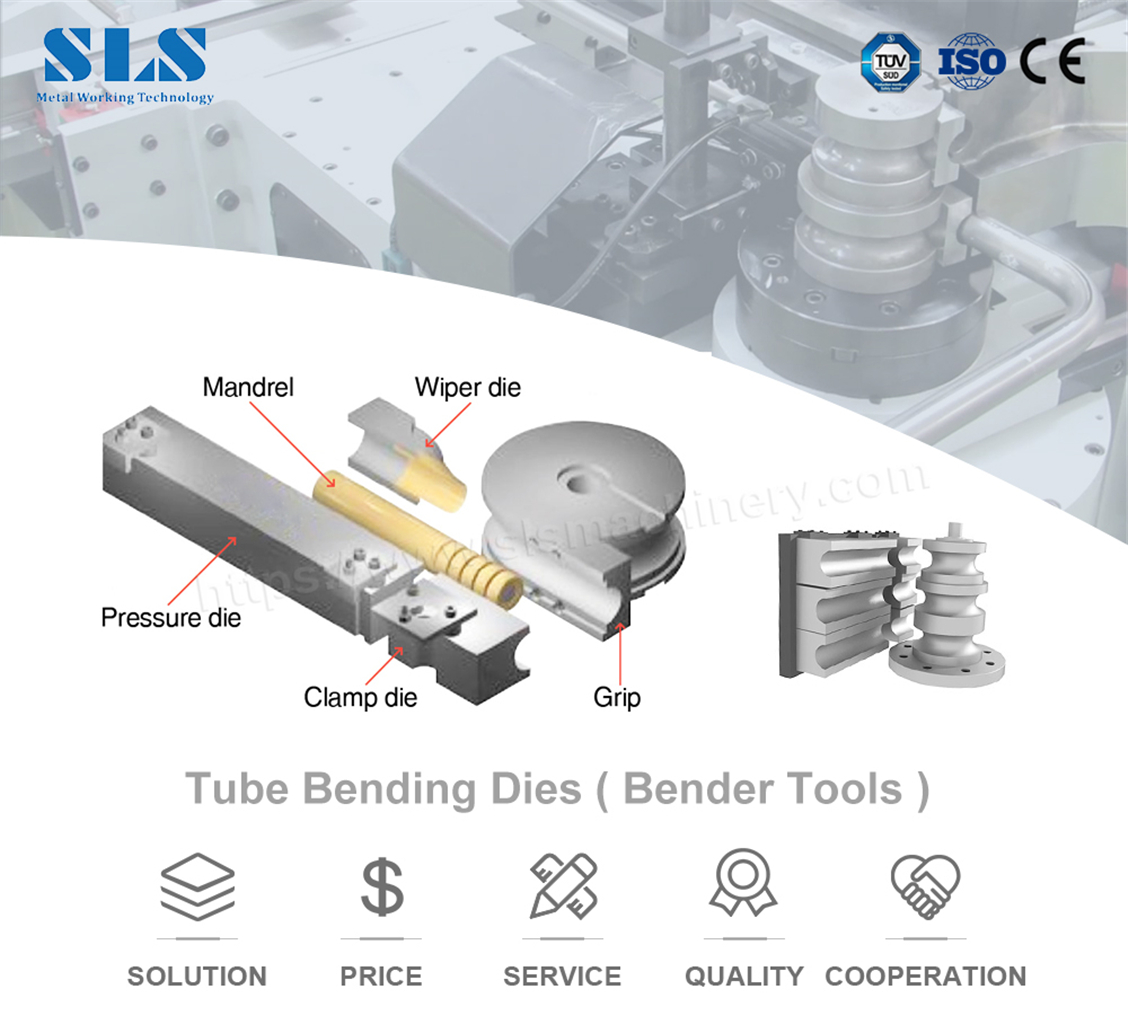

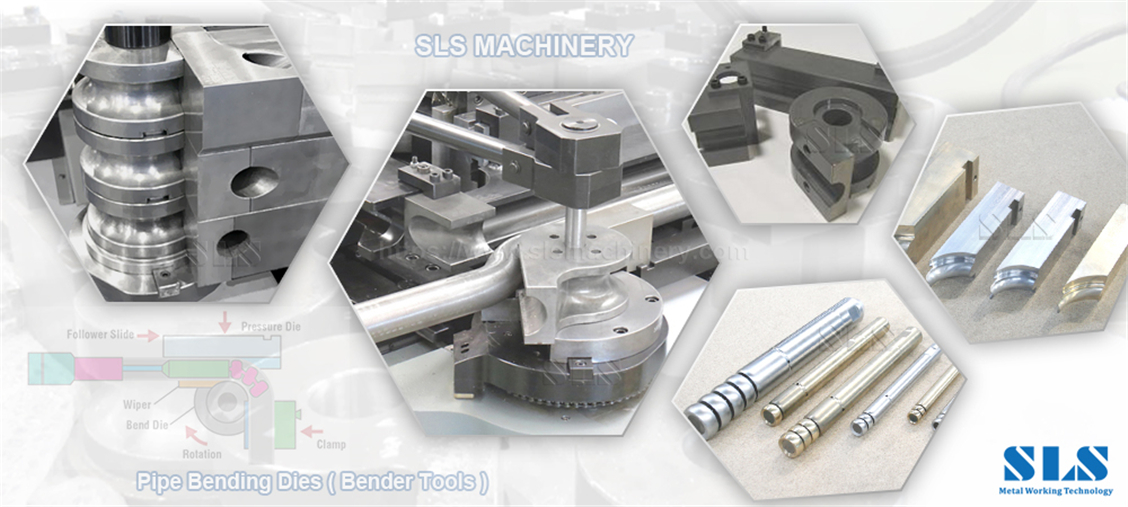

Tube Bending Dies Introduction
SLS Machinery offers a full range of precision-engineered bending head tooling, designed to meet the demands of modern tube bending applications. Each component plays a critical role in ensuring accuracy, repeatability, and high surface quality. Custom development services are also available for special materials, complex geometries, or non-standard sizes.

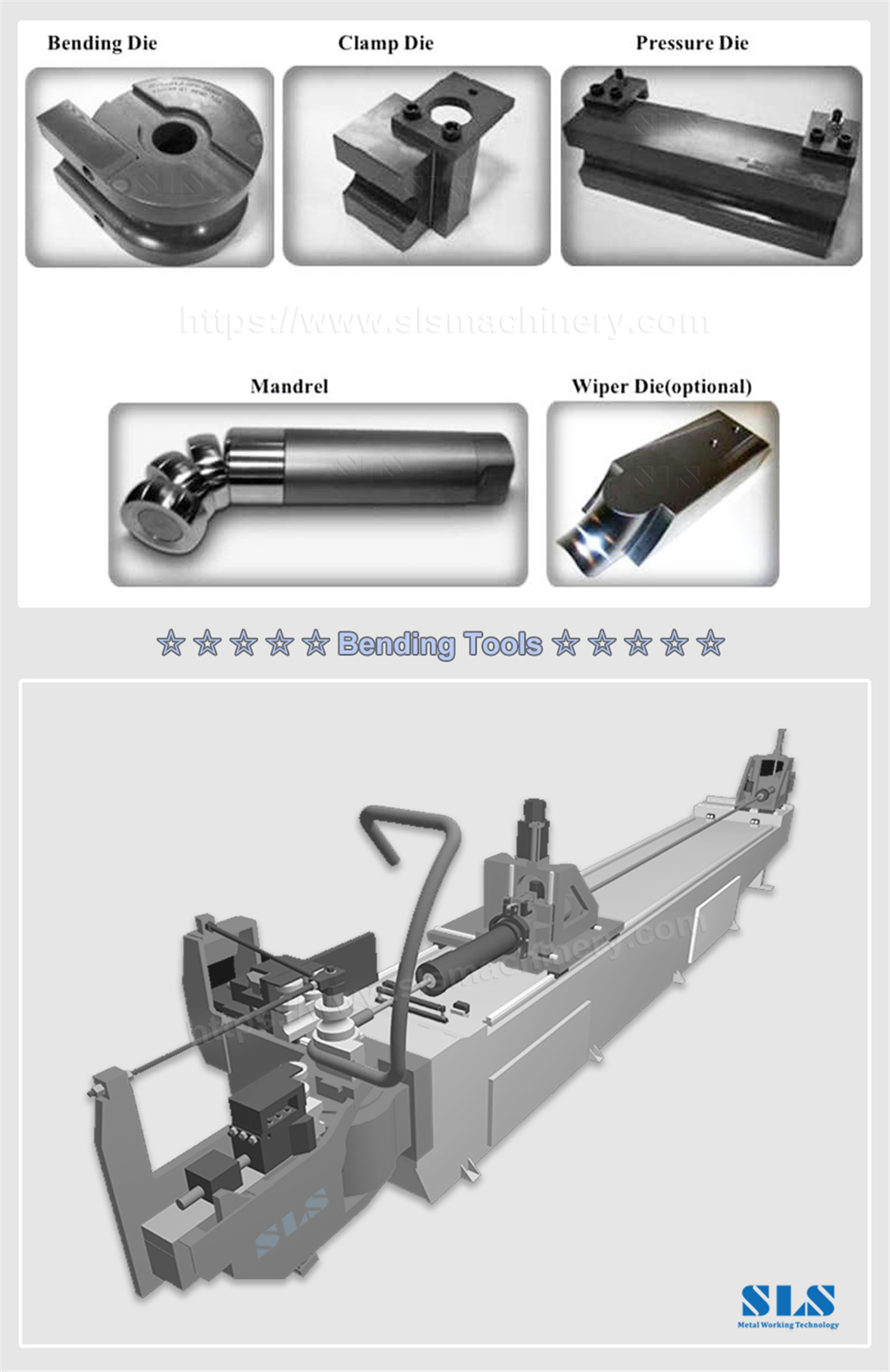

Bend Die
The bend die forms the tube to the desired radius. Precision-machined grooves ensure consistent curvature and smooth surface finish throughout the bending process.
Clamp Die
The clamp die holds the tube securely against the bend die. Its firm grip prevents slipping or shifting during bending, ensuring accurate angle formation and repeatability.
Pressure Die
The pressure die follows the tube along during the bending cycle, maintaining proper alignment and supporting the material to reduce friction and prevent distortion.
Wiper Die
Positioned against the bend die on the inside of the bend, the wiper die eliminates wrinkles by smoothing material flow into the bend groove, resulting in a clean, professional finish.
Mandrel
Inserted inside the tube, the mandrel provides internal support to prevent the tube from collapsing or ovalizing during tight-radius bending, ensuring structural integrity.
Bend Die Insert
Located opposite the clamp die, the bend die insert works together with the clamp die to grip the tube firmly, providing additional holding force for precise and stable bending.
Customization & Development
To meet diverse production requirements, SLS Machinery offers complete customization and development services. Whether you are working with challenging materials like titanium or high-strength steel, or require specialized radii and complex angles, we can design and manufacture tailor-made tooling that integrates seamlessly with your bending equipment.
Contact Us
