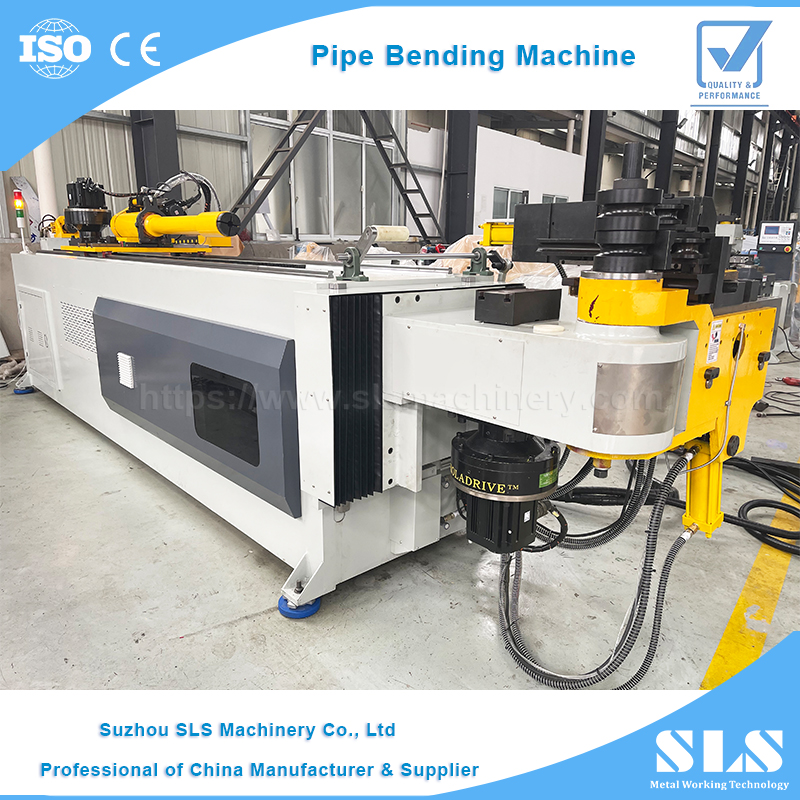

76 Type 4A-2S Three Dimensional 3D Serpentine Tube Bender OD 76mm CNC Chair Furniture Pipe Bending Machine

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

Our “76 Type 4A-2S Three Dimensional 3D Serpentine Tube Bender OD 76mm CNC Chair Furniture Pipe Bending Machine” is a popular model CNC pipe bending machine.
This model machine is a double stacks draw bending machine to fit two different radius on same pipe to realize high automation during bend. Furniture industry and auto parts industry are in favor of this model very much. Furniture industry may more interested in double stack with rolling function, do not worry, it is an optional function at customer's requirement.

________________________________________________________________________

Model:76CNC(4A-2S)

Capacity:76mm(3")x3.5mm

Drive Mode:Electric +Hydraulic (Rolling Booster Function Optional)

Suit Bending:3D Bend (Multi Radius)

Business Type:Manufacture in pipe processing(bending)

Warranty:2 years

Payment:T/T,L/C,D/P,Western Union,MoneyGram

Lead Time:35-40Days Dated From Downpayment Received


Contact us :info@slsmachinery.com
Wechat/Whatsapp:+86 18100150701

Availability:

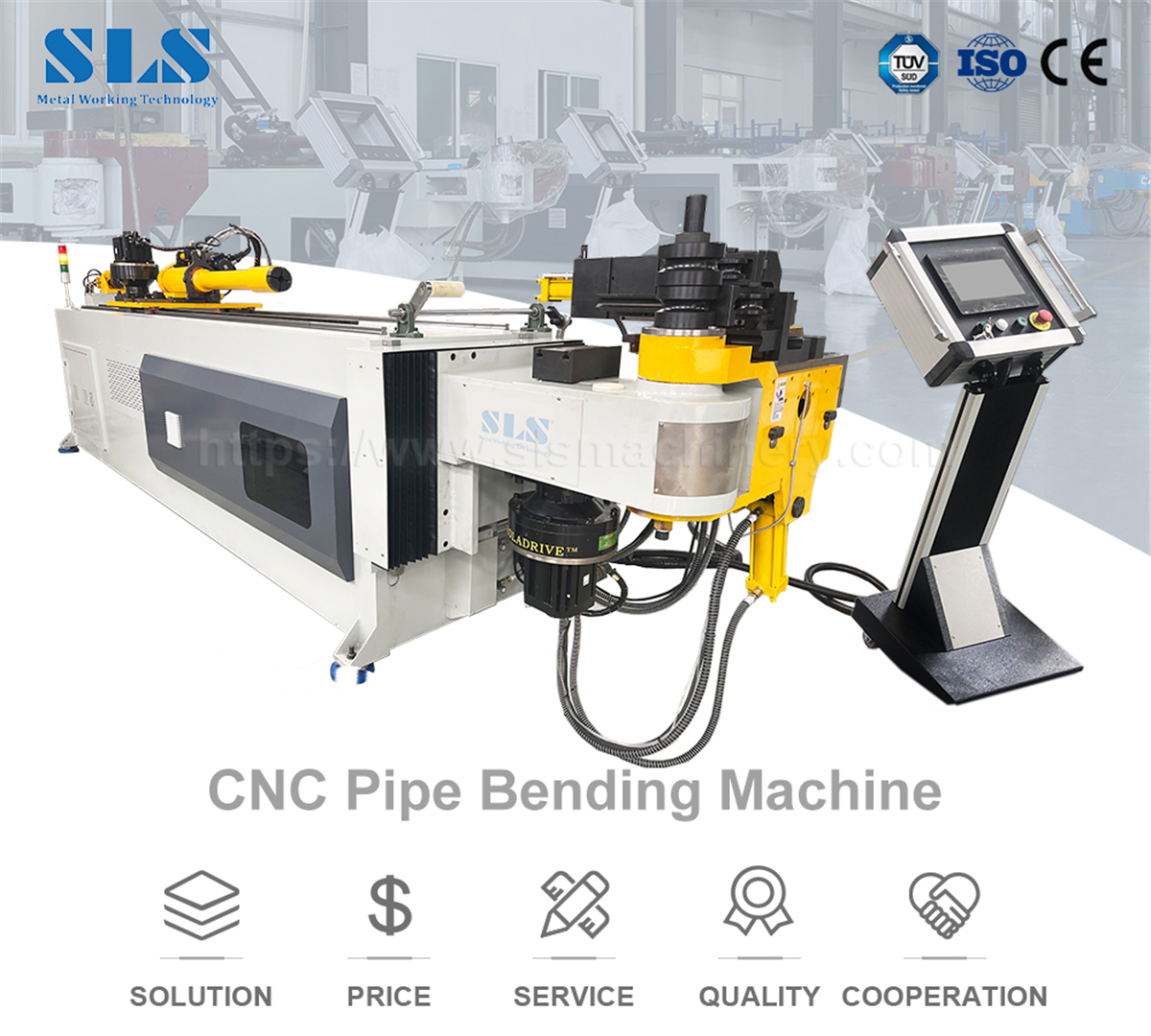

CNC Pipe Bending Machine


76 Type 4A-2S Three Dimensional 3D Serpentine Tube Bender

OD 76mm CNC Chair Furniture Pipe Bending Machine

播放机器视频_副本01



Main Technical Parameters Sheet


 Main Technical Parameters Sheet


Brief Introduction on CNC Chair Furniture Pipe Bending Machine


SLS 76 Type 4A-2S Three Dimensional 3D Serpentine Tube Bender OD 76mm CNC Chair Furniture Pipe Bending Machine

As i introduced at the beginning, it is a multi function CNC bender that can solve your most bending tasks.

You must want to know the reason.

1. Bend(Curve) Capacity, only your max pipe or tube size within 76mm, this machine meet your most basic requirement.

2. Bend(curve) Shape, it can work both single radius one pipe or double radius one pipe.

3. Special Bend,sometimes, some bend shape with short length between bends, too meet bending possible, double stacks

bending is required. One stack normal bending, another stack shape bending.

4. When big radius bending is required, rolling function easy help you solve it compare with draw bending.

5. When tight radius bending is required, booster function is the most efficient and innovative way.

In conclusion, this model machine suitable for basic draw bending, large radius CNC Chair Furniture Pipe Bending Machine,

small radius exhaust bend required. It is an ideal machine for different areas , contact us for more information.

Let us make an one stop solution for you.

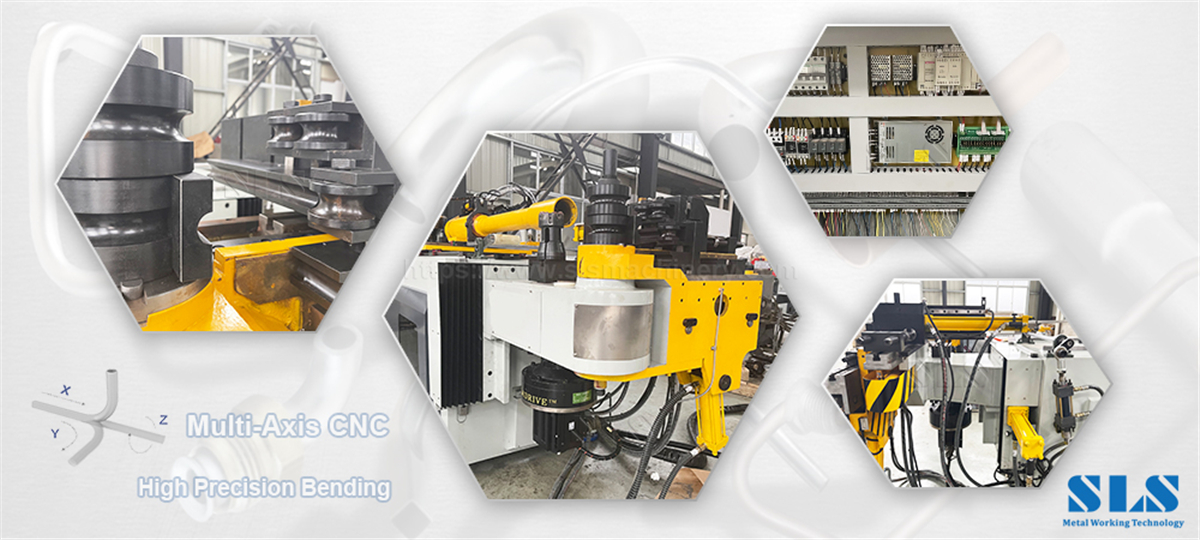

Multi-Axis CNC High Precision Bending


Features on CNC Chair Furniture Pipe Bending Machine


Software Part:

  • Software Controlling: PLC controlling or IPC controlling both available.

  • Touch screen operate panel help workers clear and easy manage machine operation.

  • Except English language, other language requirement workable.

  • Software system alarming when machine operate in wrong way.

  • Mandrel backward in advance for guarantee bend quality.

  • Easy programming reduce workers difficulty.

  • Input and Output signal to help problem solving quickly.

Mechanical Part:

  • Movement Controlling: Electric +Hydraulic

  • Electric: Bending,Feeding,Rotating,Head Shifting (Head Left Right Movement)

  • Hydraulic: Head Shifting (Head Up Down Movement),Clamp Tool,Pressure Tool,Mandrel,Tube Support...

  • Standard Bending Direction: Right Side

  • Pipe Shape: Round, Square,Rectangle, Oval, Triangle, Profile...

  • Pipe Material: Steel, Cooper,Stainless Steel, Aluminum,Iron,Brass...

  • Standard: Double Stacks Draw Bending

  • Optional: Rolling Function,Booster Function or Other Customized Function

  • Machine start: By foot pedal or on screen.

  • Cooling System: Air cooling or water cooling.

  • CE certificate


Main Application

 Main Application
