Our EF-120AC Type Air Operated Tube Inside and Outside Smoothing Chamfer Pipe End Facing Machine Also Know As Pipe Beveling Machine Is a Special Kind of Pipe End Smooth Machine. Chamfering Machine Can Be Have Single Head or Double Head One Which Meet Different Customer’S Requirement. The Controlling for The Machine At Pneumatic or Hydraulic According to Different Size, Material of Beveling. It Is Mainly Used In The Manufacture of Various Parts for The Automotive, Boiler, Furniture and Many More By Providing Solutions Which Maximize The Quality and Production Efficiency. We Keep Many Chamfering Machines In Stock for Quick Shipments.
_________________________________________________________________________
Model: EF-120AC
Specification: 120mm
Drive Mode: Electric + Pneumatic
Technical: Dry Chamfering
Business Type: Professoinal Manufacture
Payment: T/T,L/C,D/P,Western Union,MoneyGram
Lead Time: 25 Days Dated From Deposit Received
Contact us：info@slsmachinery.com
Wechat/Whatsapp：+86 18100150701
|
| |

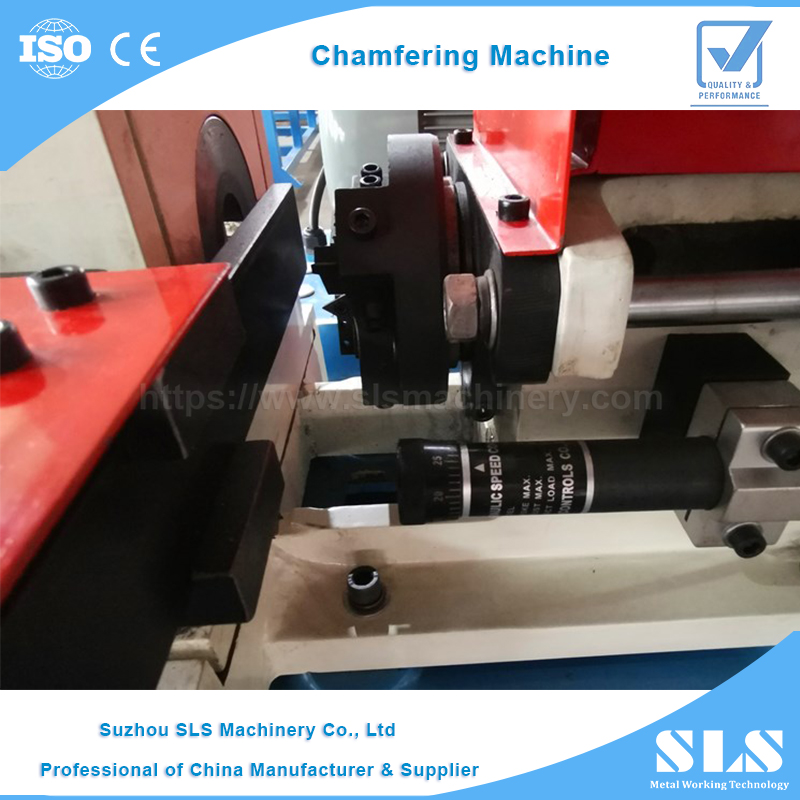

EF-120AC Type Air Operated Tube Inside and Outside Smoothing Chamfer Pipe End Facing Machine
Main Technical Parameters Sheet
Brief Introduction on Tube Inside and Outside Smoothing Chamfer Machine
SLS EF-120AC Type Air Operated Tube Inside and Outside Smoothing Chamfer Pipe End Facing Machine Equipment a Kind of Semi-Automatic Single Head Machine with Manual Loading, Automatic Mechanical Chamfering and Automatic Clamping Driven By Pneumatic. Chamfering Work Can Be Expanded As Three Sides, Two Sides or Single Side Chamfering, Bore a Hole or Thickness Reducing. Chamfering Process Can Be Finished At One Time In Fast Speed and Accurate Chamfering Requirement. Sometimes Chamfering Is Defined As a Form of Bevel, and It Is Usually Processed At a 30,45 or 60 Degree Angle Between Two Adjacent Right-Angle Faces. Clamp Device and Knife Holder Are Precisely Designed for Ensure The Center Line Between Work-Piece and Knife Holder At The Same Level. Chamfering Length Can Be Adjusted Based on Specific Requirement.Choose From Semi-Automatic or Full Automatic with Auto Loading Tube Chamfering Machine to Best Meet Your Level of Production.
Features on Tube Inside and Outside Smoothing Chamfer Machine
● Control Panel Offers Easy Access to Auto and Manual Operating Modes.
● All The Parts Are Made Under Very Strict Quality Control, So The Quality of Machine Is In High Level and The Specification Is Standardized.
● Equipped with Emergency Stop Device.
● A Circular Tube Modifies An Interior Angle, An External Angle and Flat Plane At One Time with Fastness and Precision.
● Automatic and Manual Working Mode Which Are Convenient for Adjusting The Machine, Mold and Chamfering Knife.
● Material Available: Carbon Steel, Stainless Steel, Copper, Aluminum...
● Chamfering Work Is Driven By Mechanical and Clamping Work Driven By Pneumatic.
● Clamp Device and Knife Holder Are Precisely Designed for Ensure The Center Line Between Workpiece and Knife Holder At The Same Level.
● Dual Feed Chamfer System:
First Speed------Fast Forward Movement Nearly to Tube End to Save The Time.
Second Speed---Infinitely Variable Forward Adjustable Chamfering Speed to Get Smooth Finish.
● The Design of The Tooling Help Customer Easy to Change.
● Foot Pedal Cycle Start.
● Optional: Double Head Can Be Added to The Machine Based on Detailed Chamfering Requirement.
Main Application
Packaging & Shipping
Contact Us
EF-120AC Type Air Operated Tube Inside and Outside Smoothing Chamfer Pipe End Facing Machine
Main Technical Parameters Sheet
Brief Introduction on Tube Inside and Outside Smoothing Chamfer Machine
SLS EF-120AC Type Air Operated Tube Inside and Outside Smoothing Chamfer Pipe End Facing Machine Equipment a Kind of Semi-Automatic Single Head Machine with Manual Loading, Automatic Mechanical Chamfering and Automatic Clamping Driven By Pneumatic. Chamfering Work Can Be Expanded As Three Sides, Two Sides or Single Side Chamfering, Bore a Hole or Thickness Reducing. Chamfering Process Can Be Finished At One Time In Fast Speed and Accurate Chamfering Requirement. Sometimes Chamfering Is Defined As a Form of Bevel, and It Is Usually Processed At a 30,45 or 60 Degree Angle Between Two Adjacent Right-Angle Faces. Clamp Device and Knife Holder Are Precisely Designed for Ensure The Center Line Between Work-Piece and Knife Holder At The Same Level. Chamfering Length Can Be Adjusted Based on Specific Requirement.Choose From Semi-Automatic or Full Automatic with Auto Loading Tube Chamfering Machine to Best Meet Your Level of Production.
Features on Tube Inside and Outside Smoothing Chamfer Machine
● Control Panel Offers Easy Access to Auto and Manual Operating Modes.
● All The Parts Are Made Under Very Strict Quality Control, So The Quality of Machine Is In High Level and The Specification Is Standardized.
● Equipped with Emergency Stop Device.
● A Circular Tube Modifies An Interior Angle, An External Angle and Flat Plane At One Time with Fastness and Precision.
● Automatic and Manual Working Mode Which Are Convenient for Adjusting The Machine, Mold and Chamfering Knife.
● Material Available: Carbon Steel, Stainless Steel, Copper, Aluminum...
● Chamfering Work Is Driven By Mechanical and Clamping Work Driven By Pneumatic.
● Clamp Device and Knife Holder Are Precisely Designed for Ensure The Center Line Between Workpiece and Knife Holder At The Same Level.
● Dual Feed Chamfer System:
First Speed------Fast Forward Movement Nearly to Tube End to Save The Time.
Second Speed---Infinitely Variable Forward Adjustable Chamfering Speed to Get Smooth Finish.
● The Design of The Tooling Help Customer Easy to Change.
● Foot Pedal Cycle Start.
● Optional: Double Head Can Be Added to The Machine Based on Detailed Chamfering Requirement.
